PROLINE 60 ORA SURFACE OPAL 2800lm 26W 840 600 GR IP20 ON/OFF
Item No. MI110582880

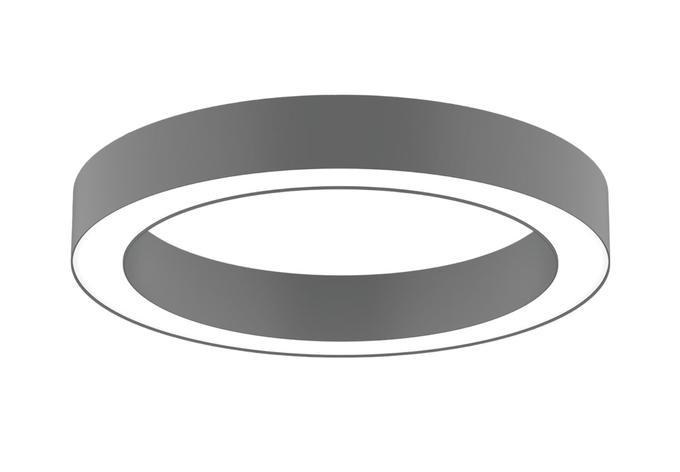

PROLINE 60 ORA SURFACE

PROLINE 60 ORA SURFACE OPAL 2800lm 26W 840 600 GR IP20 ON/OFF

MI110582880

General data
Key Advantages

Various optics versions designed to suit any applications and requirements: Opal, Microprismatic ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Product ShapeLinear, Round
MountingS
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]26
IEC Protection ClassI
Optics
DiffuserOPAL
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L80B50 100.000h
Technical data
Total Consumption [W]26
Lumen Output [LM]2800
Efficacy [lm/W]108
DiffuserOPAL
Beam Angle [°]90°
Light distributionDIR
CCT [K]4000
CRI80
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 100.000h
Type of ControlON/OFF
Housing colorGREY
IP20
Mechanical Protection [IK]07
Main Feed AC [V]220-240
Dimensions (length, width, height)0 x 60 x 83 mm [LxWxH]
Diameter ø [mm]600
Description:

PROLINE family is an elegant and timeless linear system that allows to create captivating arrangements in any interior. It’s modern design and simple construction make it a great choice for general as well as decorative lighting in any interiors from residential to any public areas.

Key Advantages:

Various optics versions designed to suit any applications and requirements: Opal, Microprismatic ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Downloads:
Datasheet:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/J - MOUNTING/S.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
General data
Key Advantages

Various optics versions designed to suit any applications and requirements: Opal, Microprismatic ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Product ShapeLinear, Round
MountingS
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]26
IEC Protection ClassI
Optics
DiffuserOPAL
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L80B50 100.000h
Technical data
Total Consumption [W]26
Lumen Output [LM]2800
Efficacy [lm/W]108
DiffuserOPAL
Beam Angle [°]90°
Light distributionDIR
CCT [K]4000
CRI80
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 100.000h
Type of ControlON/OFF
Housing colorGREY
IP20
Mechanical Protection [IK]07
Main Feed AC [V]220-240
Dimensions (length, width, height)0 x 60 x 83 mm [LxWxH]
Diameter ø [mm]600
Housing
Housing colorGREY
RALAny upon request
FinishMatt, Gloss
Light technical data
Light SourcePCB LED
Total Consumption [W]26
Lumen Output [LM]2800
Efficacy [lm/W]108
CCT [K]4000
CRI80
UGR<19
MacAdam step3
Beam Angle [°]90°
Light distributionDIR
Technical data
IP20
Mechanical Protection [IK]07
Corrosion ClassC3
Dimensions
Dimensions (length, width, height)0 x 60 x 83 mm [LxWxH]
Diameter ø [mm]600
