AVOS 600 CEILING GRID IP44/20
AVOS 600 CEILING GRID IP44/20

Všeobecni údaje
Application

Clean rooms

Product ShapeSquare
TypeClean rooms
MountingRecessed
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]20 - 58
IEC Protection ClassI
Optika
Diffuser MaterialPMMA
Diffuser Material DesignOPAL, MPR
TYPE OF CONTROLON/OFF
CONTROL SYSTEMON/OFF
LED LIFETIME Ta25 [h]L70B50 60.000h
Technická data
Total Consumption [W]20 - 58
Lumen Output [LM]1800 - 4600
Efficacy lm/Wup to 98
Diffuser MaterialPMMA
Body MaterialAnodized aluminium
Beam Angle [°]80°, 100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]90
MacAdam step3
LED LIFETIME Ta25 [h]L70B50 60.000h
TYPE OF CONTROLON/OFF
Body ColorWhite 9016
Ingress Protection [IP]44/20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Popis:

A versatile, recessed luminaire with IP44/20 that can be used for applications with a higher humidity such as lavatories, open areas that require higher ingress protection.

Ke stažení:
Technický list:
1

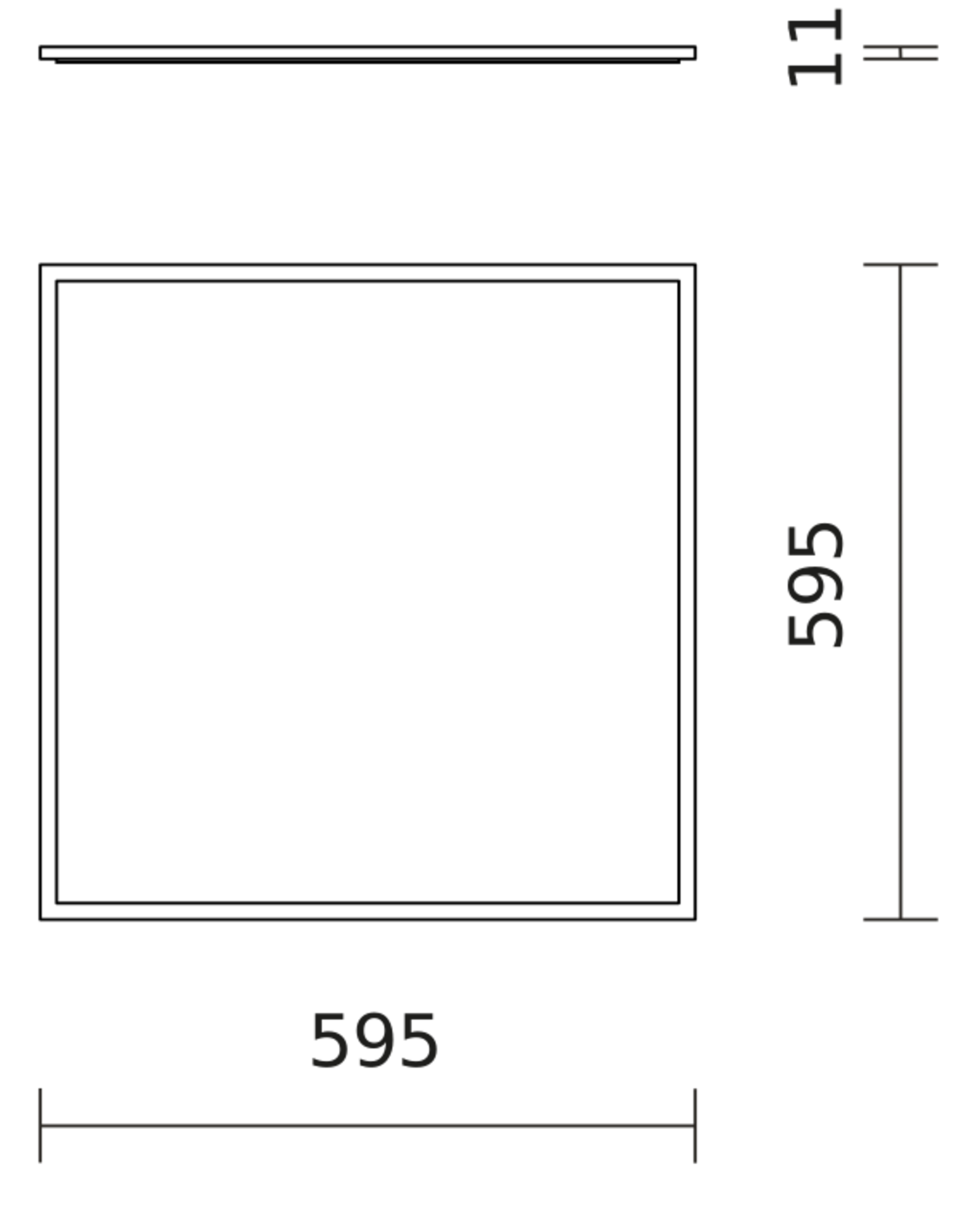

Technické ilustrace:
1
Montážní pokyny:
1
Certifikáty:
1
Fotometrická data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/20_44.svg
/soft4net/img/project/icons/J - MOUNTING/R.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
Všeobecni údaje
Application

Clean rooms

Product ShapeSquare
TypeClean rooms
MountingRecessed
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]20 - 58
IEC Protection ClassI
Optika
Diffuser MaterialPMMA
Diffuser Material DesignOPAL, MPR
TYPE OF CONTROLON/OFF
CONTROL SYSTEMON/OFF
LED LIFETIME Ta25 [h]L70B50 60.000h
Technická data
Total Consumption [W]20 - 58
Lumen Output [LM]1800 - 4600
Efficacy lm/Wup to 98
Diffuser MaterialPMMA
Body MaterialAnodized aluminium
Beam Angle [°]80°, 100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]90
MacAdam step3
LED LIFETIME Ta25 [h]L70B50 60.000h
TYPE OF CONTROLON/OFF
Body ColorWhite 9016
Ingress Protection [IP]44/20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Kryt
Body MaterialAnodized aluminium
Body ColorWhite 9016
FinishMatt, Gloss
Světelně-technická data
Light SourceLED
Total Consumption [W]20 - 58
Lumen Output [LM]1800 - 4600
Efficacy lm/Wup to 98
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]90
UGR<19
MacAdam step3
Beam Angle [°]80°, 100°
Light Distribution DIR/INDDIR
Technická data
TA [°C]0-25
Ingress Protection [IP]44/20
Mechanical Protection [IK]01
Generating PDF...

Varianty

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
AVOS 600 CEILING GRID IP44/20 OPAL 1800lm 20W 930 WH IP44/20 ON/OFFMI11051799335955951120180090OPAL100°903000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 OPAL 1900lm 20W 940 WH IP44/20 ON/OFFMI11020873265955951120190095OPAL100°904000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 OPAL 2100lm 24W 930 WH IP44/20 ON/OFFMI11008303175955951124210088OPAL100°903000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 OPAL 2200lm 24W 940 WH IP44/20 ON/OFFMI11054620265955951124220092OPAL100°904000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 OPAL 2450lm 27W 930 WH IP44/20 ON/OFFMI11036214655955951127245091OPAL100°903000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 OPAL 2550lm 27W 940 WH IP44/20 ON/OFFMI11083268785955951127255094OPAL100°904000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 OPAL 2750lm 31W 930 WH IP44/20 ON/OFFMI11062893065955951131275089OPAL100°903000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 OPAL 2900lm 31W 940 WH IP44/20 ON/OFFMI11090144645955951131290094OPAL100°904000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 OPAL 3050lm 35W 930 WH IP44/20 ON/OFFMI11083682145955951135305087OPAL100°903000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 OPAL 3200lm 35W 940 WH IP44/20 ON/OFFMI11047338005955951135320091OPAL100°904000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 OPAL 3450lm 42W 930 WH IP44/20 ON/OFFMI11049999165955951142345082OPAL100°903000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 OPAL 3600lm 42W 940 WH IP44/20 ON/OFFMI11038333275955951142360086OPAL100°904000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 OPAL 3850lm 48W 930 WH IP44/20 ON/OFFMI11081317245955951148385080OPAL100°903000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 OPAL 4050lm 48W 940 WH IP44/20 ON/OFFMI11032330535955951148405084OPAL100°904000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 OPAL 4350lm 57W 930 WH IP44/20 ON/OFFMI11023521625955951157435076OPAL100°903000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 OPAL 4550lm 57W 940 WH IP44/20 ON/OFFMI11017658785955951157455080OPAL100°904000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 MPR 1850lm 20W 930 WH IP44/20 ON/OFFMI11002800125955951120185093MPR92°903000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 MPR 1950lm 20W 940 WH IP44/20 ON/OFFMI11018059885955951120195098MPR92°904000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 MPR 2200lm 24W 930 WH IP44/20 ON/OFFMI11007063255955951124220092MPR92°903000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 MPR 2250lm 24W 940 WH IP44/20 ON/OFFMI11051284315955951124225094MPR92°904000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 MPR 2550lm 28W 930 WH IP44/20 ON/OFFMI11028188015955951128255091MPR92°903000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 MPR 2600lm 28W 940 WH IP44/20 ON/OFFMI11022127285955951128260093MPR92°904000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 MPR 2850lm 32W 930 WH IP44/20 ON/OFFMI11079412575955951132285089MPR92°903000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 MPR 2950lm 32W 940 WH IP44/20 ON/OFFMI11060943965955951132295092MPR92°904000ON/OFF44/20WHITE
AVOS 600 CEILING GRID IP44/20 MPR 3200lm 35W 930 WH IP44/20 ON/OFFMI11001769035955951135320091MPR92°903000ON/OFF44/20WHITE
Zobrazit na stránku: 25 / 50 / 75 / 100 | Stránka 1 z 2
