BASE
BASE

Všeobecni údaje

Application	Lighting of historic and sacred spaces, as well as parks, squares, sidewalks, landscapes.
Product Shape	Round
Type	Garden, Landscape, Street
Mounting	Pendant on wire

Elektrická data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	36,
IEC Protection Class	I, on request II

Optika

Diffuser Material	PMMA
TYPE OF CONTROL	ON/OFF, on request DIM
LED LIFETIME Ta25 [h]	L80B20 70 000h

Technická data

Total Consumption [W]	36,
Lumen Output [LM]	5000,
Efficacy lm/W	139
Diffuser Material	PMMA
Body Material	Aluminium
Beam Angle [°]	AS, S, ASW, ASP,
Light Distribution DIR/IND	DIR,
LED Color Temperature CCT [K]	3000, 4000, on request 2700, 5000
Color Rendering Index [CRI]	80
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B20 70 000h
TYPE OF CONTROL	ON/OFF, on request DIM
Body Color	, White, Black, Graphite, Grey
Ingress Protection [IP]	65
Mechanical Protection [IK]	08
Main Feed AC [V]	220-240
Diameter ø [mm]	500
Weight [KG]	3.00 kg

Popis:

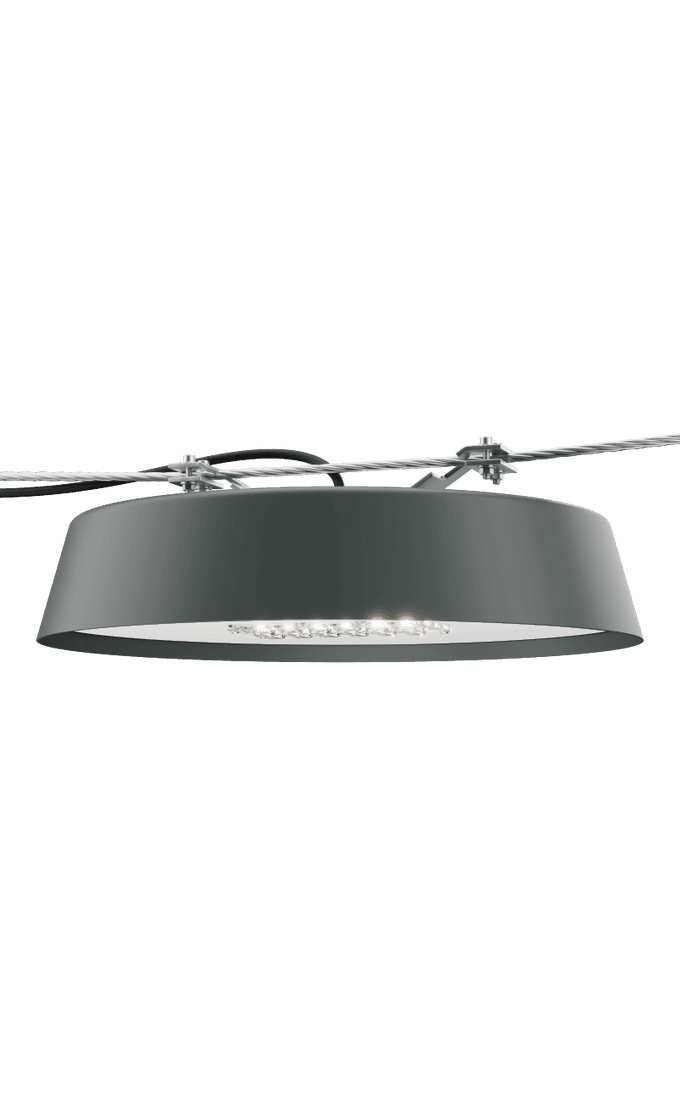

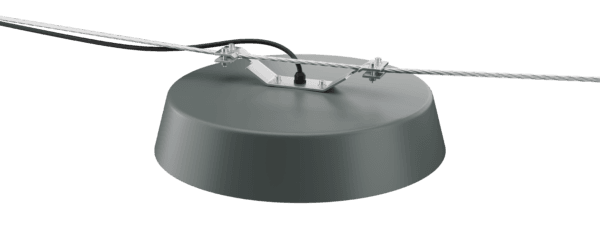

Modern pendant luminaire. The aluminium body is a sealed chamber, enclosed by a plate on which a sealed LED module with lenses of selected optics is mounted on the glass side, and a heat sink and power supply on the inside. The chamber is connected to a top rosette, which, in addition to its decorative function, serves as a mounting bracket. Transparent or frosted glass glazing.

Ke stažení:

Technický list:

Montážní pokyny:

Certifikáty:

Fotometrická data:

Všeobecni údaje

Application	Lighting of historic and sacred spaces, as well as parks, squares, sidewalks, landscapes.
Product Shape	Round
Type	Garden, Landscape, Street
Mounting	Pendant on wire

Elektrická data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	36,
IEC Protection Class	I, on request II

Optika

Diffuser Material	PMMA
TYPE OF CONTROL	ON/OFF, on request DIM
LED LIFETIME Ta25 [h]	L80B20 70 000h

Technická data

Total Consumption [W]	36,
Lumen Output [LM]	5000,
Efficacy lm/W	139
Diffuser Material	PMMA
Body Material	Aluminium
Beam Angle [°]	AS, S, ASW, ASP,
Light Distribution DIR/IND	DIR,
LED Color Temperature CCT [K]	3000, 4000, on request 2700, 5000
Color Rendering Index [CRI]	80
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B20 70 000h
TYPE OF CONTROL	ON/OFF, on request DIM
Body Color	, White, Black, Graphite, Grey
Ingress Protection [IP]	65
Mechanical Protection [IK]	08
Main Feed AC [V]	220-240
Diameter ø [mm]	500
Weight [KG]	3.00 kg

Kryt

Body Material	Aluminium
Body Color	, White, Black, Graphite, Grey
RAL	White 9003, Gray 7043, Graphite 7016, Black 9005

Světelně-technická data

Light Source	LED
Total Consumption [W]	36,
Lumen Output [LM]	5000,
Efficacy lm/W	139
LED Color Temperature CCT [K]	3000, 4000, on request 2700, 5000
Color Rendering Index [CRI]	80
MacAdam step	3
Beam Angle [°]	AS, S, ASW, ASP,
Light Distribution DIR/IND	DIR,

Technická data

TA [°C]	-30 to +45
Ingress Protection [IP]	65
Mechanical Protection [IK]	08
Corrosion Class	C3

Rozměry

Diameter ø [mm]	500
Weight [KG]	3.00 kg

Varianty

Item	Code	Lenght	Width	Height	Diameter	W	Lumen Output lm	Beam Angle	CRI	Color K	Type of Control	IP	Color
BASE 36W LED 5000lm 36W 830 500 500 Wh Bl Gr Gr IP65 ON/OFF	MI2473417897	500	500	100	500	36	5000	AS, S, ASW, ASP	80	3000 4000	ON/OFF DIM ON REQUEST	65	WHITE BLACK GRAPHITE GREY
