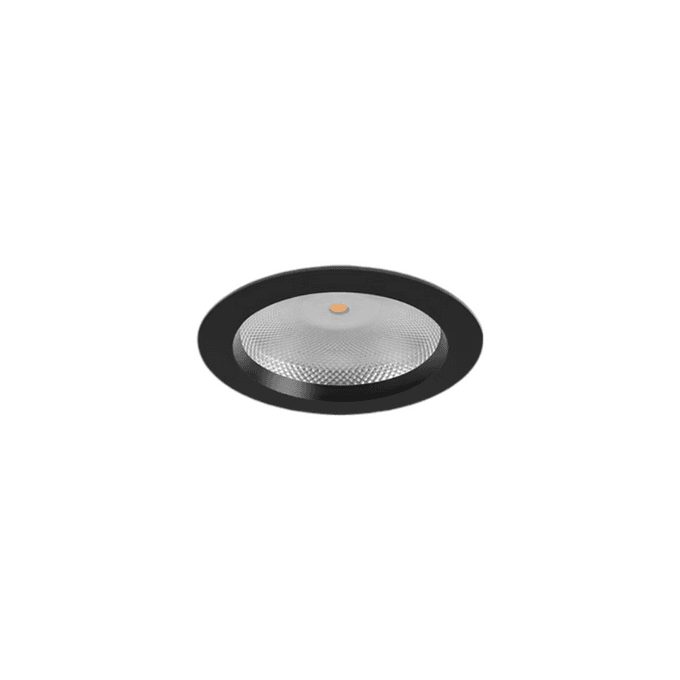

CLARO R 150CLARO R 150
Všeobecni údaje
| Application | Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting. |
|---|---|
| Product Shape | Round |
| Mounting | Recessed |
Elektrická data
| Main Feed AC [V] | 220-240 |
|---|---|
| Main Feed Frequency [Hz] | 50-60 |
| Total Consumption [W] | 15 |
| IEC Protection Class | I |
Optika
| Diffuser Material | PC GLASS |
|---|---|
| Diffuser Material Design | PC GLASS |
| TYPE OF CONTROL | ON/OFF, DALI |
| CONTROL SYSTEM | ON/OFF, DALI |
| LED LIFETIME Ta25 [h] | L80B50 50.000h |
Technická data
| Total Consumption [W] | 15 |
|---|---|
| Lumen Output [LM] | 1662 |
| Efficacy lm/W | 111 |
| Diffuser Material | PC GLASS |
| Body Material | Aluminium |
| Beam Angle [°] | 60° |
| Light Distribution DIR/IND | DIR |
| LED Color Temperature CCT [K] | 3000, 4000 |
| Color Rendering Index [CRI] | 80, 90 |
| MacAdam step | 3 |
| LED LIFETIME Ta25 [h] | L80B50 50.000h |
| TYPE OF CONTROL | ON/OFF, DALI |
| Body Color | WHITE, BLACK, GRAY |
| Ingress Protection [IP] | 44 |
| Mechanical Protection [IK] | 1 |
| Main Feed AC [V] | 220-240 |
| Diameter ø [mm] | 150 |
Popis:
Experience elegant, energy-efficient lighting with the Claro Downlight Series. Designed to seamlessly integrate into any ceiling, Claro combines modern aesthetics with advanced performance, making it the perfect choice for residential, commercial, and professional spaces. Available in six dimensions – ø128mm, ø150mm, ø180mm, ø200mm, ø240mm.
Ke stažení:
Technický list:
1Technické ilustrace:
1Montážní pokyny:
1Certifikáty:
1Fotometrická data:
1
Všeobecni údaje
| Application | Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting. |
|---|---|
| Product Shape | Round |
| Mounting | Recessed |
Elektrická data
| Main Feed AC [V] | 220-240 |
|---|---|
| Main Feed Frequency [Hz] | 50-60 |
| Total Consumption [W] | 15 |
| IEC Protection Class | I |
Optika
| Diffuser Material | PC GLASS |
|---|---|
| Diffuser Material Design | PC GLASS |
| TYPE OF CONTROL | ON/OFF, DALI |
| CONTROL SYSTEM | ON/OFF, DALI |
| LED LIFETIME Ta25 [h] | L80B50 50.000h |
Technická data
| Total Consumption [W] | 15 |
|---|---|
| Lumen Output [LM] | 1662 |
| Efficacy lm/W | 111 |
| Diffuser Material | PC GLASS |
| Body Material | Aluminium |
| Beam Angle [°] | 60° |
| Light Distribution DIR/IND | DIR |
| LED Color Temperature CCT [K] | 3000, 4000 |
| Color Rendering Index [CRI] | 80, 90 |
| MacAdam step | 3 |
| LED LIFETIME Ta25 [h] | L80B50 50.000h |
| TYPE OF CONTROL | ON/OFF, DALI |
| Body Color | WHITE, BLACK, GRAY |
| Ingress Protection [IP] | 44 |
| Mechanical Protection [IK] | 1 |
| Main Feed AC [V] | 220-240 |
| Diameter ø [mm] | 150 |
Kryt
| Body Material | Aluminium |
|---|---|
| Body Color | WHITE, BLACK, GRAY |
Světelně-technická data
| Light Source | LED |
|---|---|
| Total Consumption [W] | 15 |
| Lumen Output [LM] | 1662 |
| Efficacy lm/W | 111 |
| LED Color Temperature CCT [K] | 3000, 4000 |
| Color Rendering Index [CRI] | 80, 90 |
| MacAdam step | 3 |
| Beam Angle [°] | 60° |
| Light Distribution DIR/IND | DIR |
Technická data
| TA [°C] | -20C° / +40C° |
|---|---|
| Ingress Protection [IP] | 44 |
| Mechanical Protection [IK] | 1 |
Rozměry
| Diameter ø [mm] | 150 |
|---|
