DEUS 110 RECESSED OPAL 1150lm 16W 830 WH IP40 DALI
Item No. MI101175326
DEUS 110

DEUS 110 RECESSED OPAL 1150lm 16W 830 WH IP40 DALI

MI101175326

Všeobecni údaje
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRound
TypeDownlight
MountingR
Mounting Opening100
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]16
IEC Protection ClassI
Optika
DiffuserOPAL
Type of ControlDALI
LED LIFETIME Ta25 [h]L70B50 60.000h
Technická data
Total Consumption [W]16
Lumen Output [LM]1150
Efficacy [lm/W]72
DiffuserOPAL
Beam Angle [°]82°
Light distributionDIR
CCT [K]3000
CRI80
MacAdam step3
LED LIFETIME Ta25 [h]L70B50 60.000h
Type of ControlDALI
Housing colorWHITE
IP40
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Popis:

A small, configurable spotlight – recessed downlight for interior lighting. A wide range of technical parameter and luminaire appearance variants for versatile applications. COB technology and a high-performance, metalized, facetted plastic reflector guarantee the optimum construction of the optical system and a high efficiency.

Key Advantages:

Various optic beam angle versions designed to suit any applications and requirements.

Ke stažení:
Technický list:
1
Montážní pokyny:
1
Certifikáty:
1

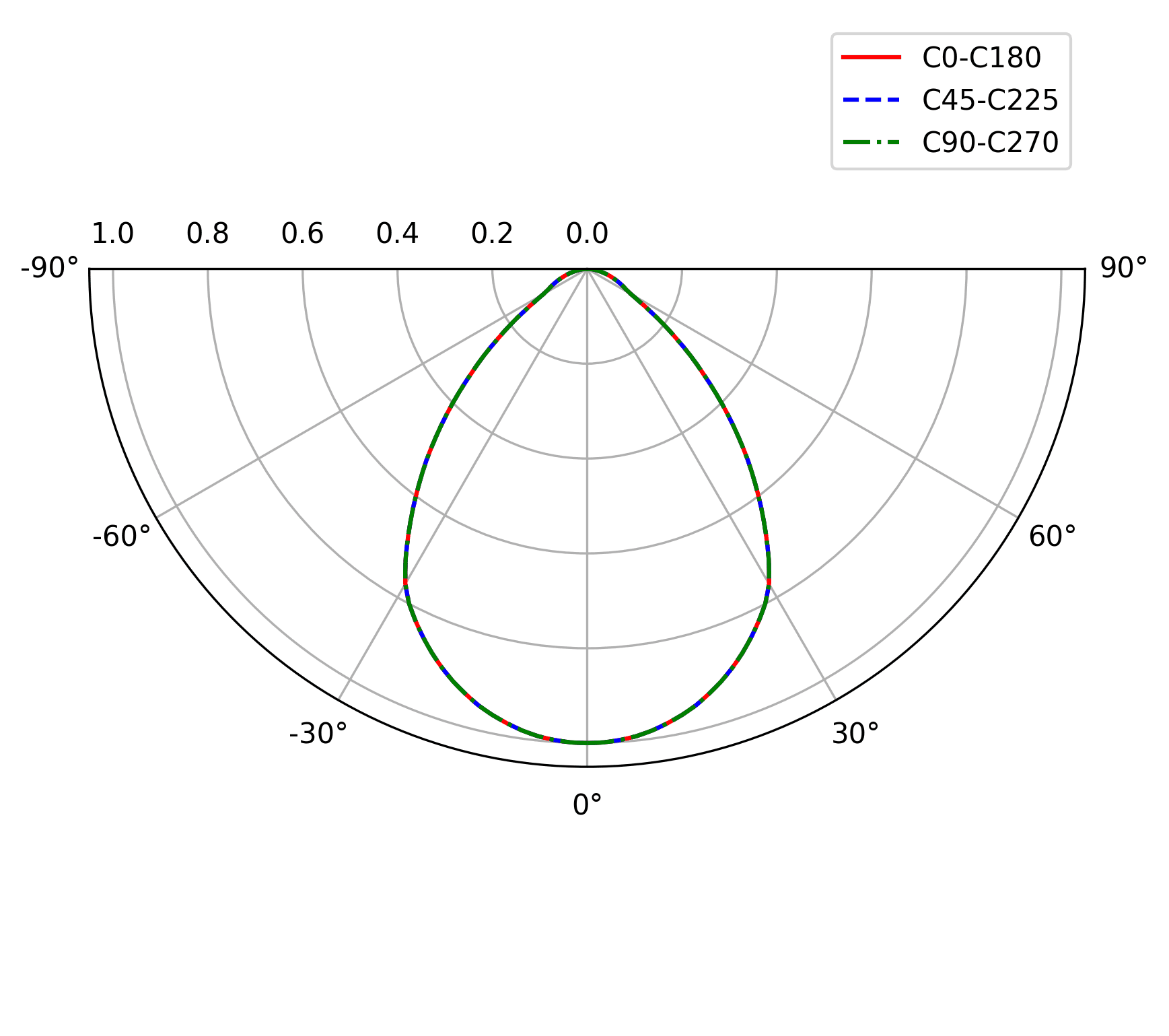

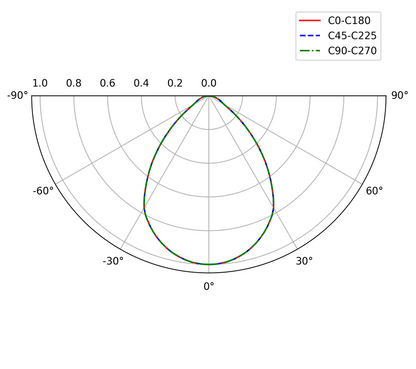

Fotometrická data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AD - IP/40.svg
/soft4net/img/project/icons/J - MOUNTING/R.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
DEUS 110
Všeobecni údaje
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRound
TypeDownlight
MountingR
Mounting Opening100
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]16
IEC Protection ClassI
Optika
DiffuserOPAL
Type of ControlDALI
LED LIFETIME Ta25 [h]L70B50 60.000h
Technická data
Total Consumption [W]16
Lumen Output [LM]1150
Efficacy [lm/W]72
DiffuserOPAL
Beam Angle [°]82°
Light distributionDIR
CCT [K]3000
CRI80
MacAdam step3
LED LIFETIME Ta25 [h]L70B50 60.000h
Type of ControlDALI
Housing colorWHITE
IP40
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Kryt
Housing colorWHITE
FinishMatt, Gloss
Světelně-technická data
Light SourceLED
Total Consumption [W]16
Lumen Output [LM]1150
Efficacy [lm/W]72
CCT [K]3000
CRI80
MacAdam step3
Beam Angle [°]82°
Light distributionDIR
Technická data
IP40
Mechanical Protection [IK]01
Generating PDF...

Technické ilustrace

DEUS 110
