DIU SURFACE OPAL 650lm 8W 840 644 WH IP20 ON/OFF
Item No. MI117008833
DIU SURFACE

DIU SURFACE OPAL 650lm 8W 840 644 WH IP20 ON/OFF

MI117008833

Všeobecni údaje
Key Advantages

Various optics versions designed to suit any applications and requirements: OPAL ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Product ShapeLinear, Rectangular
MountingS
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]8
IEC Protection ClassI
Optika
DiffuserOPAL
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L80B50 100.000h
Technická data
Total Consumption [W]8
Lumen Output [LM]650
Efficacy [lm/W]81
DiffuserOPAL
Beam Angle [°]90°
Light distributionDIR
CCT [K]4000
CRI80
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 100.000h
Type of ControlON/OFF
Housing colorWHITE
IP20
Mechanical Protection [IK]07
Main Feed AC [V]220-240
Dimensions (length, width, height)644 x 58 x 83 mm [LxWxH]
Popis:

PROLINE family is an elegant and timeless linear system that allows to create captivating arrangements in any interior. It’s modern design and simple construction make it a great choice for general as well as decorative lighting in any interiors from residential to any public areas.

Key Advantages:

Various optics versions designed to suit any applications and requirements: OPAL ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Ke stažení:
Technický list:
1
Montážní pokyny:
1
Certifikáty:
1

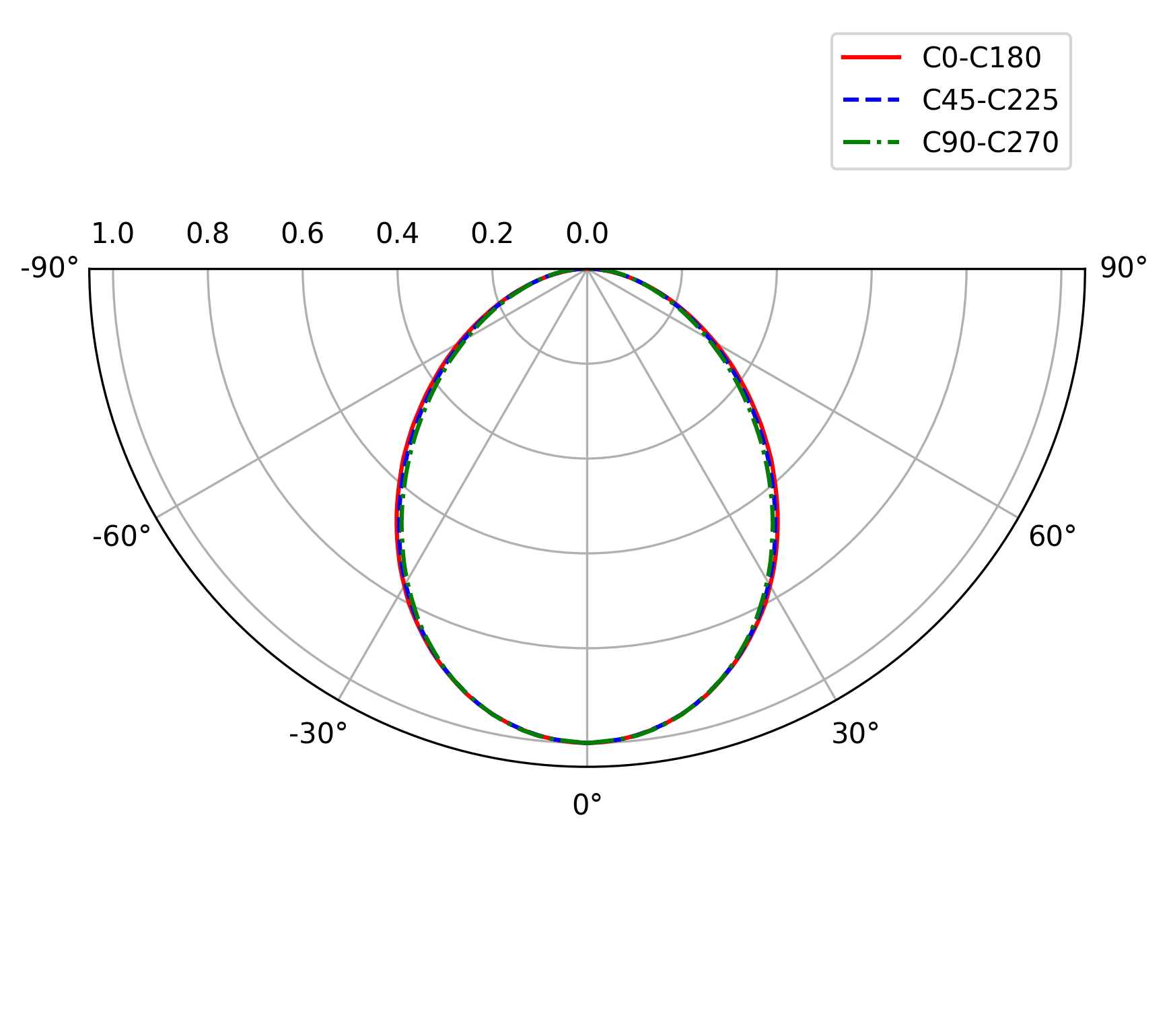

Fotometrická data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/J - MOUNTING/S.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
DIU SURFACE
Všeobecni údaje
Key Advantages

Various optics versions designed to suit any applications and requirements: OPAL ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Product ShapeLinear, Rectangular
MountingS
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]8
IEC Protection ClassI
Optika
DiffuserOPAL
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L80B50 100.000h
Technická data
Total Consumption [W]8
Lumen Output [LM]650
Efficacy [lm/W]81
DiffuserOPAL
Beam Angle [°]90°
Light distributionDIR
CCT [K]4000
CRI80
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 100.000h
Type of ControlON/OFF
Housing colorWHITE
IP20
Mechanical Protection [IK]07
Main Feed AC [V]220-240
Dimensions (length, width, height)644 x 58 x 83 mm [LxWxH]
Kryt
Housing colorWHITE
RALAny upon request
FinishMatt, Gloss
Světelně-technická data
Light SourcePCB LED
Total Consumption [W]8
Lumen Output [LM]650
Efficacy [lm/W]81
CCT [K]4000
CRI80
UGR<19
MacAdam step3
Beam Angle [°]90°
Light distributionDIR
Technická data
IP20
Mechanical Protection [IK]07
Corrosion ClassC3
Rozměry
Dimensions (length, width, height)644 x 58 x 83 mm [LxWxH]
Generating PDF...

Technické ilustrace

DIU SURFACE
