ECCE 80 TRACK TRANSPARENT 3500lm 32W 827 WH IP20 DALI
Item No. MI104779472
ECCE 80 TRACK

ECCE 80 TRACK TRANSPARENT 3500lm 32W 827 WH IP20 DALI

MI104779472

Všeobecni údaje
Product ShapeTube
MountingT
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]32
IEC Protection ClassI
Optika
DiffuserTRANSPARENT
Type of ControlDALI
LED LIFETIME Ta25 [h]L80B10 50.000h
Technická data
Total Consumption [W]32
Lumen Output [LM]3500
Efficacy [lm/W]109
DiffuserTRANSPARENT

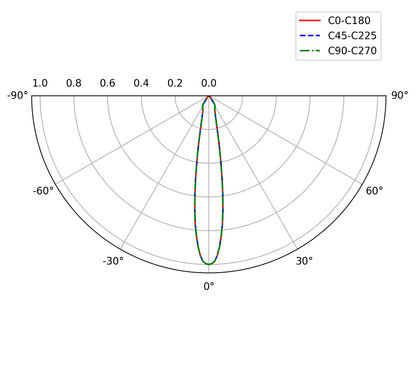

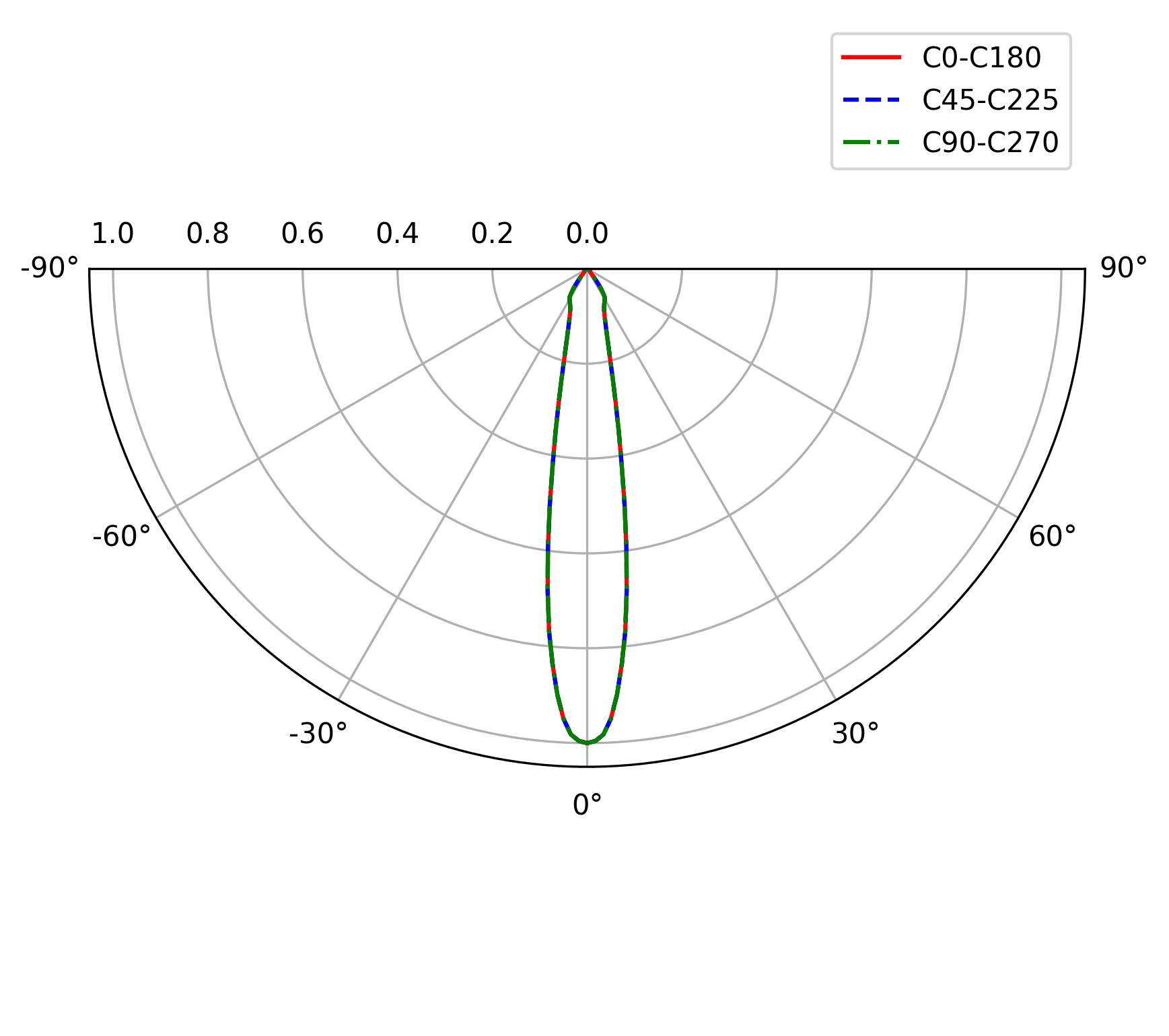

Beam Angle [°]18°
Light distributionDIR
CCT [K]2700
CRI80
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 50.000h
Type of ControlDALI
Housing colorWHITE
IP20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Popis:

Subtle LED spotlight with driver integrated in track mount delivering an extreme slim design without compromises.

Ke stažení:
Technický list:
1
Montážní pokyny:
1
Certifikáty:
1
Fotometrická data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/J - MOUNTING/T.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/2700_80.svg
ECCE 80 TRACK
Všeobecni údaje
Product ShapeTube
MountingT
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]32
IEC Protection ClassI
Optika
DiffuserTRANSPARENT
Type of ControlDALI
LED LIFETIME Ta25 [h]L80B10 50.000h
Technická data
Total Consumption [W]32
Lumen Output [LM]3500
Efficacy [lm/W]109
DiffuserTRANSPARENT
Beam Angle [°]18°
Light distributionDIR
CCT [K]2700
CRI80
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 50.000h
Type of ControlDALI
Housing colorWHITE
IP20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Kryt
Housing colorWHITE
RALAny upon request
FinishMatt, Gloss
Světelně-technická data
Light SourceCOB LED
Total Consumption [W]32
Lumen Output [LM]3500
Efficacy [lm/W]109
CCT [K]2700
CRI80
UGR<19
MacAdam step3
Beam Angle [°]18°
Light distributionDIR
Technická data
IP20
Mechanical Protection [IK]01
Corrosion ClassC3
Generating PDF...

Technické ilustrace

ECCE 80 TRACK
