HAL R 117
HAL R 117

Všeobecni údaje
Application

HAL R is perfect for various applications, including: residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingRecessed
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]10
IEC Protection ClassI
Optika
Diffuser MaterialPMMA
Diffuser Material DesignPMMA
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technická data
Total Consumption [W]10
Lumen Output [LM]1063
Efficacy lm/W106
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]117
Popis:

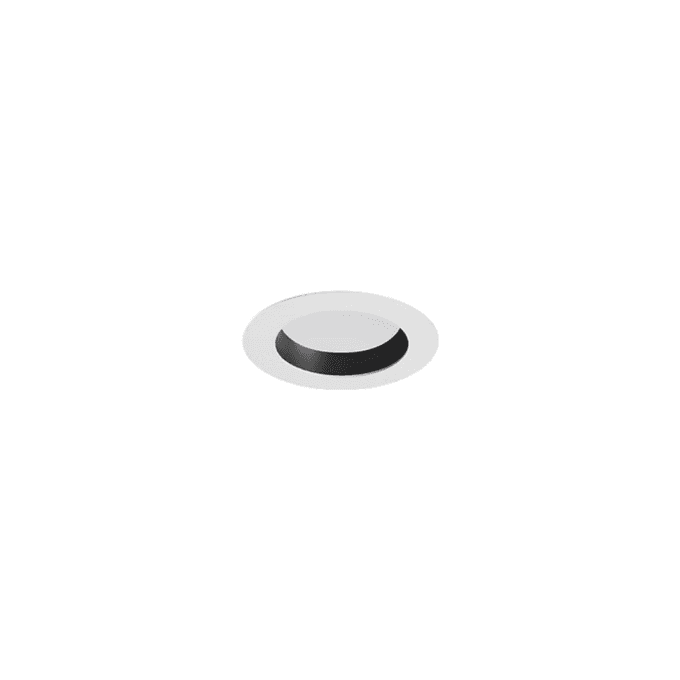

HAL R is a modern recessed luminaire. With its sleek circular design, the HAL R offers a perfect balance of elegance and functionality, making it a versatile choice for contemporary interiors. Available in six dimensions – ø97mm, ø117mm, ø147mm, ø175mm, ø192mm, ø227mm.

Ke stažení:
Technický list:
1
Technické ilustrace:
1
Montážní pokyny:
1
Certifikáty:
1
Fotometrická data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
Všeobecni údaje
Application

HAL R is perfect for various applications, including: residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingRecessed
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]10
IEC Protection ClassI
Optika
Diffuser MaterialPMMA
Diffuser Material DesignPMMA
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technická data
Total Consumption [W]10
Lumen Output [LM]1063
Efficacy lm/W106
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]117
Kryt
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY
Světelně-technická data
Light SourceLED
Total Consumption [W]10
Lumen Output [LM]1063
Efficacy lm/W106
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]100°
Light Distribution DIR/INDDIR
Technická data
TA [°C]-20C° / +40C°
Ingress Protection [IP]44
Mechanical Protection [IK]1
Rozměry
Diameter ø [mm]117
Generating PDF...

Varianty

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
HAL R PMMA 1063lm 10W 830 117 WH IP44 ON/OFFMI41409170117101063106PMMA100°803000ON/OFF44WHITE
HAL R PMMA 1063lm 10W 830 117 BL IP44 ON/OFFMI34910470117101063106PMMA100°803000ON/OFF44BLACK
HAL R PMMA 1063lm 10W 830 117 GR IP44 ON/OFFMI404620170117101063106PMMA100°803000ON/OFF44GREY
HAL R PMMA 1063lm 10W 830 117 WH IP44 DALIMI646176970117101063106PMMA100°803000DALI44WHITE
HAL R PMMA 1063lm 10W 830 117 BL IP44 DALIMI936227170117101063106PMMA100°803000DALI44BLACK
HAL R PMMA 1063lm 10W 830 117 GR IP44 DALIMI911001770117101063106PMMA100°803000DALI44GREY
HAL R PMMA 1063lm 10W 840 117 WH IP44 ON/OFFMI644357170117101063106PMMA100°804000ON/OFF44WHITE
HAL R PMMA 1063lm 10W 840 117 BL IP44 ON/OFFMI984083970117101063106PMMA100°804000ON/OFF44BLACK
HAL R PMMA 1063lm 10W 840 117 GR IP44 ON/OFFMI589095170117101063106PMMA100°804000ON/OFF44GREY
HAL R PMMA 1063lm 10W 840 117 WH IP44 DALIMI418229070117101063106PMMA100°804000DALI44WHITE
HAL R PMMA 1063lm 10W 840 117 BL IP44 DALIMI541985070117101063106PMMA100°804000DALI44BLACK
HAL R PMMA 1063lm 10W 840 117 GR IP44 DALIMI443110770117101063106PMMA100°804000DALI44GREY
HAL R PMMA 1063lm 10W 930 117 WH IP44 ON/OFFMI17966170117101063106PMMA100°903000ON/OFF44WHITE
HAL R PMMA 1063lm 10W 930 117 BL IP44 ON/OFFMI693378170117101063106PMMA100°903000ON/OFF44BLACK
HAL R PMMA 1063lm 10W 930 117 GR IP44 ON/OFFMI955682070117101063106PMMA100°903000ON/OFF44GREY
HAL R PMMA 1063lm 10W 930 117 WH IP44 DALIMI831849670117101063106PMMA100°903000DALI44WHITE
HAL R PMMA 1063lm 10W 930 117 BL IP44 DALIMI261355370117101063106PMMA100°903000DALI44BLACK
HAL R PMMA 1063lm 10W 930 117 GR IP44 DALIMI797878970117101063106PMMA100°903000DALI44GREY
HAL R PMMA 1063lm 10W 940 117 WH IP44 ON/OFFMI990302670117101063106PMMA100°904000ON/OFF44WHITE
HAL R PMMA 1063lm 10W 940 117 BL IP44 ON/OFFMI731710470117101063106PMMA100°904000ON/OFF44BLACK
HAL R PMMA 1063lm 10W 940 117 GR IP44 ON/OFFMI191898570117101063106PMMA100°904000ON/OFF44GREY
HAL R PMMA 1063lm 10W 940 117 WH IP44 DALIMI914297870117101063106PMMA100°904000DALI44WHITE
HAL R PMMA 1063lm 10W 940 117 BL IP44 DALIMI802977470117101063106PMMA100°904000DALI44BLACK
HAL R PMMA 1063lm 10W 940 117 GR IP44 DALIMI319936870117101063106PMMA100°904000DALI44GREY
