HAL S 200
HAL S 200

Všeobecni údaje
Application

Ideal for residential, commercial, and hospitality spaces, including hallways, kitchens, offices, and bathrooms.

Product ShapeRound
MountingSurface
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]20
IEC Protection ClassI
Optika
Diffuser MaterialPMMA
Diffuser Material DesignPMMA
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technická data
Total Consumption [W]20
Lumen Output [LM]2126
Efficacy lm/W106
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]200
Popis:

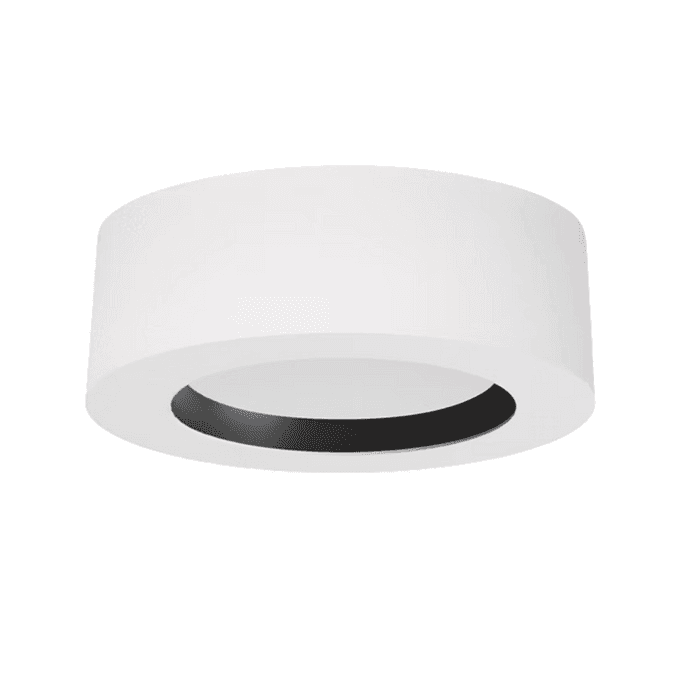

Hal S is a surface-mounted fixed downlight designed for modern interiors. It comes equipped with an integrated LED module, diffuser, and driver, ensuring energy-efficient and high-quality lighting. With its sleek cylindrical design and durable construction, it is ideal for various settings, including residential and commercial spaces. The fixture offers an IP44 rating, making it suitable for areas with moderate moisture levels. Available in six dimensions – ø100mm, ø120mm, ø150mm, ø180mm, ø200mm, ø240mm.

Ke stažení:
Technický list:
1
Technické ilustrace:
1
Montážní pokyny:
1
Certifikáty:
1
Fotometrická data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
Všeobecni údaje
Application

Ideal for residential, commercial, and hospitality spaces, including hallways, kitchens, offices, and bathrooms.

Product ShapeRound
MountingSurface
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]20
IEC Protection ClassI
Optika
Diffuser MaterialPMMA
Diffuser Material DesignPMMA
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technická data
Total Consumption [W]20
Lumen Output [LM]2126
Efficacy lm/W106
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]200
Kryt
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY
Světelně-technická data
Light SourceLED
Total Consumption [W]20
Lumen Output [LM]2126
Efficacy lm/W106
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]100°
Light Distribution DIR/INDDIR
Technická data
TA [°C]-20C° / +40C°
Ingress Protection [IP]44
Mechanical Protection [IK]1
Rozměry
Diameter ø [mm]200
Generating PDF...

Varianty

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
HAL S PMMA 2126lm 20W 830 200 WH IP44 ON/OFFMI2923129120200202126106PMMA100°803000ON/OFF44WHITE
HAL S PMMA 2126lm 20W 830 200 BL IP44 ON/OFFMI983224120200202126106PMMA100°803000ON/OFF44BLACK
HAL S PMMA 2126lm 20W 830 200 GR IP44 ON/OFFMI3444210120200202126106PMMA100°803000ON/OFF44GREY
HAL S PMMA 2126lm 20W 830 200 WH IP44 DALIMI7965907120200202126106PMMA100°803000DALI44WHITE
HAL S PMMA 2126lm 20W 830 200 BL IP44 DALIMI4379155120200202126106PMMA100°803000DALI44BLACK
HAL S PMMA 2126lm 20W 830 200 GR IP44 DALIMI8258990120200202126106PMMA100°803000DALI44GREY
HAL S PMMA 2126lm 20W 840 200 WH IP44 ON/OFFMI3753258120200202126106PMMA100°804000ON/OFF44WHITE
HAL S PMMA 2126lm 20W 840 200 BL IP44 ON/OFFMI3520485120200202126106PMMA100°804000ON/OFF44BLACK
HAL S PMMA 2126lm 20W 840 200 GR IP44 ON/OFFMI8300103120200202126106PMMA100°804000ON/OFF44GREY
HAL S PMMA 2126lm 20W 840 200 WH IP44 DALIMI4376345120200202126106PMMA100°804000DALI44WHITE
HAL S PMMA 2126lm 20W 840 200 BL IP44 DALIMI4999923120200202126106PMMA100°804000DALI44BLACK
HAL S PMMA 2126lm 20W 840 200 GR IP44 DALIMI7974291120200202126106PMMA100°804000DALI44GREY
HAL S PMMA 2126lm 20W 930 200 WH IP44 ON/OFFMI4571164120200202126106PMMA100°903000ON/OFF44WHITE
HAL S PMMA 2126lm 20W 930 200 BL IP44 ON/OFFMI1205668120200202126106PMMA100°903000ON/OFF44BLACK
HAL S PMMA 2126lm 20W 930 200 GR IP44 ON/OFFMI2965283120200202126106PMMA100°903000ON/OFF44GREY
HAL S PMMA 2126lm 20W 930 200 WH IP44 DALIMI7256344120200202126106PMMA100°903000DALI44WHITE
HAL S PMMA 2126lm 20W 930 200 BL IP44 DALIMI4898055120200202126106PMMA100°903000DALI44BLACK
HAL S PMMA 2126lm 20W 930 200 GR IP44 DALIMI2345018120200202126106PMMA100°903000DALI44GREY
HAL S PMMA 2126lm 20W 940 200 WH IP44 ON/OFFMI5175139120200202126106PMMA100°904000ON/OFF44WHITE
HAL S PMMA 2126lm 20W 940 200 BL IP44 ON/OFFMI1963784120200202126106PMMA100°904000ON/OFF44BLACK
HAL S PMMA 2126lm 20W 940 200 GR IP44 ON/OFFMI6804243120200202126106PMMA100°904000ON/OFF44GREY
HAL S PMMA 2126lm 20W 940 200 WH IP44 DALIMI662338120200202126106PMMA100°904000DALI44WHITE
HAL S PMMA 2126lm 20W 940 200 BL IP44 DALIMI7303760120200202126106PMMA100°904000DALI44BLACK
HAL S PMMA 2126lm 20W 940 200 GR IP44 DALIMI4553211120200202126106PMMA100°904000DALI44GREY
Zobrazit na stránku: 25 / 50 / 75 / 100 | Stránka 1 z 1
