HANO S 85
HANO S 85

Všeobecni údaje
Application

Minimalist design seamlessly integrates into various environments, from contemporary homes to stylish commercial interiors.

Product ShapeRound
MountingSurface
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]15– 20
IEC Protection ClassI
Optika
Diffuser MaterialPC GLASS
Diffuser Material DesignPC GLASS
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technická data
Total Consumption [W]15– 20
Lumen Output [LM]1646 – 2195
Efficacy lm/W110
Diffuser MaterialPC GLASS
Body MaterialAluminium
Beam Angle [°]15°, 30°, 45°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]2700, 3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]85
Popis:

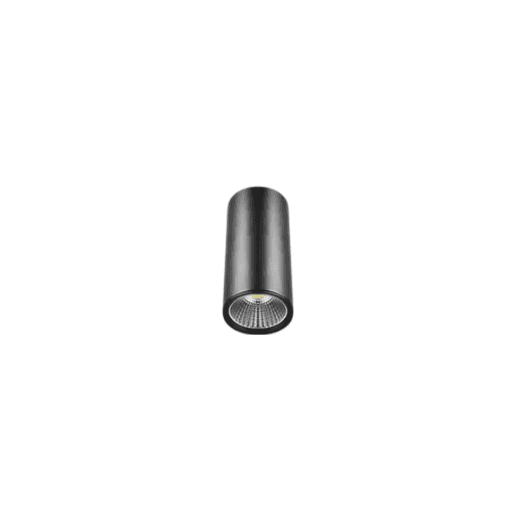

HANO S is a surface-mounted luminaire that combines modern design with exceptional functionality. Featuring a clean, cylindrical form in a pristine white, black and grey finish and a contrasting black inner detail. Crafted with high-quality materials and advanced LED technology, the HANO S ensures energy-efficient performance and superior lighting output. Available in six dimensions – ø60mm, ø85mm, ø100mm, ø118mm

Ke stažení:
Technický list:
1
Technické ilustrace:
1
Montážní pokyny:
1
Certifikáty:
1
Fotometrická data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/2700_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/2700_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
Všeobecni údaje
Application

Minimalist design seamlessly integrates into various environments, from contemporary homes to stylish commercial interiors.

Product ShapeRound
MountingSurface
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]15– 20
IEC Protection ClassI
Optika
Diffuser MaterialPC GLASS
Diffuser Material DesignPC GLASS
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technická data
Total Consumption [W]15– 20
Lumen Output [LM]1646 – 2195
Efficacy lm/W110
Diffuser MaterialPC GLASS
Body MaterialAluminium
Beam Angle [°]15°, 30°, 45°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]2700, 3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]85
Kryt
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY
Světelně-technická data
Light SourceLED
Total Consumption [W]15– 20
Lumen Output [LM]1646 – 2195
Efficacy lm/W110
LED Color Temperature CCT [K]2700, 3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]15°, 30°, 45°
Light Distribution DIR/INDDIR
Technická data
TA [°C]-20C° / +40C°
Ingress Protection [IP]44
Mechanical Protection [IK]1
Rozměry
Diameter ø [mm]85
Generating PDF...

Varianty

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
HANO S PC GLASS 1646lm 15W 827 85 WH IP44 ON/OFFMI938127921085151646110PC GLASS15°802700ON/OFF44WHITE
HANO S PC GLASS 1646lm 15W 827 85 BL IP44 ON/OFFMI875481821085151646110PC GLASS15°802700ON/OFF44BLACK
HANO S PC GLASS 1646lm 15W 827 85 GR IP44 ON/OFFMI328801321085151646110PC GLASS15°802700ON/OFF44GREY
HANO S PC GLASS 1646lm 15W 827 85 WH IP44 DALIMI831553621085151646110PC GLASS15°802700DALI44WHITE
HANO S PC GLASS 1646lm 15W 827 85 BL IP44 DALIMI911386121085151646110PC GLASS15°802700DALI44BLACK
HANO S PC GLASS 1646lm 15W 827 85 GR IP44 DALIMI958667021085151646110PC GLASS15°802700DALI44GREY
HANO S PC GLASS 1646lm 15W 830 85 WH IP44 ON/OFFMI634949121085151646110PC GLASS15°803000ON/OFF44WHITE
HANO S PC GLASS 1646lm 15W 830 85 BL IP44 ON/OFFMI979394021085151646110PC GLASS15°803000ON/OFF44BLACK
HANO S PC GLASS 1646lm 15W 830 85 GR IP44 ON/OFFMI632219321085151646110PC GLASS15°803000ON/OFF44GREY
HANO S PC GLASS 1646lm 15W 830 85 WH IP44 DALIMI975788621085151646110PC GLASS15°803000DALI44WHITE
HANO S PC GLASS 1646lm 15W 830 85 BL IP44 DALIMI57929621085151646110PC GLASS15°803000DALI44BLACK
HANO S PC GLASS 1646lm 15W 830 85 GR IP44 DALIMI858330221085151646110PC GLASS15°803000DALI44GREY
HANO S PC GLASS 1646lm 15W 840 85 WH IP44 ON/OFFMI224553921085151646110PC GLASS15°804000ON/OFF44WHITE
HANO S PC GLASS 1646lm 15W 840 85 BL IP44 ON/OFFMI465881821085151646110PC GLASS15°804000ON/OFF44BLACK
HANO S PC GLASS 1646lm 15W 840 85 GR IP44 ON/OFFMI484274721085151646110PC GLASS15°804000ON/OFF44GREY
HANO S PC GLASS 1646lm 15W 840 85 WH IP44 DALIMI156718121085151646110PC GLASS15°804000DALI44WHITE
HANO S PC GLASS 1646lm 15W 840 85 BL IP44 DALIMI841538521085151646110PC GLASS15°804000DALI44BLACK
HANO S PC GLASS 1646lm 15W 840 85 GR IP44 DALIMI938218921085151646110PC GLASS15°804000DALI44GREY
HANO S PC GLASS 1646lm 15W 927 85 WH IP44 ON/OFFMI621922221085151646110PC GLASS15°902700ON/OFF44WHITE
HANO S PC GLASS 1646lm 15W 927 85 BL IP44 ON/OFFMI939460721085151646110PC GLASS15°902700ON/OFF44BLACK
HANO S PC GLASS 1646lm 15W 927 85 GR IP44 ON/OFFMI799643921085151646110PC GLASS15°902700ON/OFF44GREY
HANO S PC GLASS 1646lm 15W 927 85 WH IP44 DALIMI730030221085151646110PC GLASS15°902700DALI44WHITE
HANO S PC GLASS 1646lm 15W 927 85 BL IP44 DALIMI193593221085151646110PC GLASS15°902700DALI44BLACK
HANO S PC GLASS 1646lm 15W 927 85 GR IP44 DALIMI89066321085151646110PC GLASS15°902700DALI44GREY
HANO S PC GLASS 1646lm 15W 930 85 WH IP44 ON/OFFMI700357621085151646110PC GLASS15°903000ON/OFF44WHITE
Zobrazit na stránku: 25 / 50 / 75 / 100 | Stránka 1 z 9
