HERO R 108
HERO R 108

Všeobecni údaje
Application

Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingRecessed
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]8
IEC Protection ClassI
Optika
Diffuser MaterialPMMA
Diffuser Material DesignPMMA
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technická data
Total Consumption [W]8
Lumen Output [LM]850
Efficacy lm/W107
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]108
Popis:

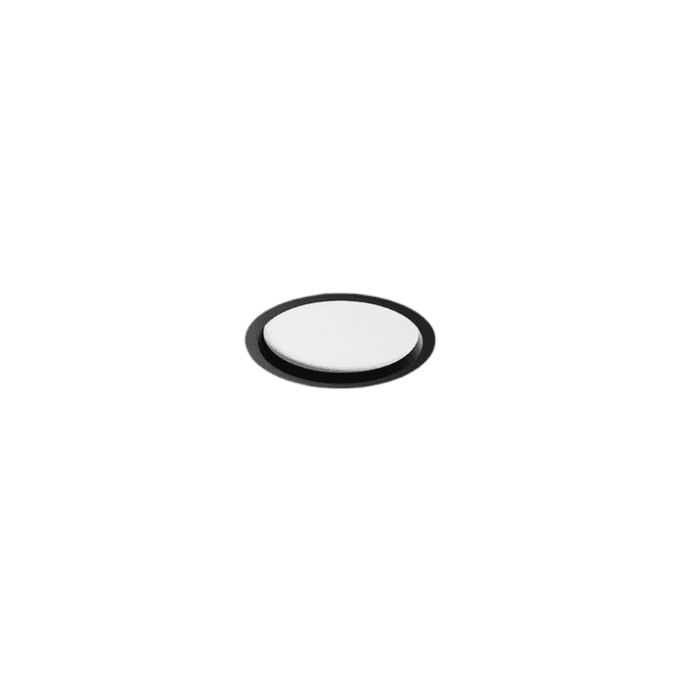

HERO R series is a ultra-modern recessed ceiling light. Featuring a sleek, low-profile frame and a high-quality diffuser, this fixture seamlessly blends style and functionality. Perfect for residential and commercial interiors, it offers uniform, glare-free illumination, enhancing the ambiance of any room. Available in six dimensions – ø108mm, ø128mm, ø150mm, ø180mm, ø200mm, ø240mm.

Ke stažení:
Technický list:
1
Technické ilustrace:
1
Montážní pokyny:
1
Certifikáty:
1
Fotometrická data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
Všeobecni údaje
Application

Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingRecessed
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]8
IEC Protection ClassI
Optika
Diffuser MaterialPMMA
Diffuser Material DesignPMMA
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technická data
Total Consumption [W]8
Lumen Output [LM]850
Efficacy lm/W107
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]108
Kryt
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY
Světelně-technická data
Light SourceLED
Total Consumption [W]8
Lumen Output [LM]850
Efficacy lm/W107
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]100°
Light Distribution DIR/INDDIR
Technická data
TA [°C]-20C° / +40C°
Ingress Protection [IP]44
Mechanical Protection [IK]1
Rozměry
Diameter ø [mm]108
Generating PDF...

Varianty

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
HERO R PMMA 850lm 8W 830 108 WH IP44 ON/OFFMI9040689651088850106PMMA100°803000ON/OFF44WHITE
HERO R PMMA 850lm 8W 830 108 BL IP44 ON/OFFMI3605391651088850106PMMA100°803000ON/OFF44BLACK
HERO R PMMA 850lm 8W 830 108 GR IP44 ON/OFFMI1369832651088850106PMMA100°803000ON/OFF44GREY
HERO R PMMA 850lm 8W 830 108 WH IP44 DALIMI807575651088850106PMMA100°803000DALI44WHITE
HERO R PMMA 850lm 8W 830 108 BL IP44 DALIMI9445200651088850106PMMA100°803000DALI44BLACK
HERO R PMMA 850lm 8W 830 108 GR IP44 DALIMI8296125651088850106PMMA100°803000DALI44GREY
HERO R PMMA 850lm 8W 840 108 WH IP44 ON/OFFMI4586347651088850106PMMA100°804000ON/OFF44WHITE
HERO R PMMA 850lm 8W 840 108 BL IP44 ON/OFFMI9446282651088850106PMMA100°804000ON/OFF44BLACK
HERO R PMMA 850lm 8W 840 108 GR IP44 ON/OFFMI8371338651088850106PMMA100°804000ON/OFF44GREY
HERO R PMMA 850lm 8W 840 108 WH IP44 DALIMI7476383651088850106PMMA100°804000DALI44WHITE
HERO R PMMA 850lm 8W 840 108 BL IP44 DALIMI9528050651088850106PMMA100°804000DALI44BLACK
HERO R PMMA 850lm 8W 840 108 GR IP44 DALIMI1747125651088850106PMMA100°804000DALI44GREY
HERO R PMMA 850lm 8W 930 108 WH IP44 ON/OFFMI4209231651088850106PMMA100°903000ON/OFF44WHITE
HERO R PMMA 850lm 8W 930 108 BL IP44 ON/OFFMI183569651088850106PMMA100°903000ON/OFF44BLACK
HERO R PMMA 850lm 8W 930 108 GR IP44 ON/OFFMI8890048651088850106PMMA100°903000ON/OFF44GREY
HERO R PMMA 850lm 8W 930 108 WH IP44 DALIMI3589891651088850106PMMA100°903000DALI44WHITE
HERO R PMMA 850lm 8W 930 108 BL IP44 DALIMI9791054651088850106PMMA100°903000DALI44BLACK
HERO R PMMA 850lm 8W 930 108 GR IP44 DALIMI1939013651088850106PMMA100°903000DALI44GREY
HERO R PMMA 850lm 8W 940 108 WH IP44 ON/OFFMI9619538651088850106PMMA100°904000ON/OFF44WHITE
HERO R PMMA 850lm 8W 940 108 BL IP44 ON/OFFMI5971761651088850106PMMA100°904000ON/OFF44BLACK
HERO R PMMA 850lm 8W 940 108 GR IP44 ON/OFFMI2959815651088850106PMMA100°904000ON/OFF44GREY
HERO R PMMA 850lm 8W 940 108 WH IP44 DALIMI736830651088850106PMMA100°904000DALI44WHITE
HERO R PMMA 850lm 8W 940 108 BL IP44 DALIMI4563446651088850106PMMA100°904000DALI44BLACK
HERO R PMMA 850lm 8W 940 108 GR IP44 DALIMI2478060651088850106PMMA100°904000DALI44GREY
