HERO S 200
HERO S 200

Všeobecni údaje
Application

Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingSurface
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]25
IEC Protection ClassI
Optika
Diffuser MaterialPMMA
Diffuser Material DesignPMMA
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technická data
Total Consumption [W]25
Lumen Output [LM]2657
Efficacy lm/W106
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]200
Popis:

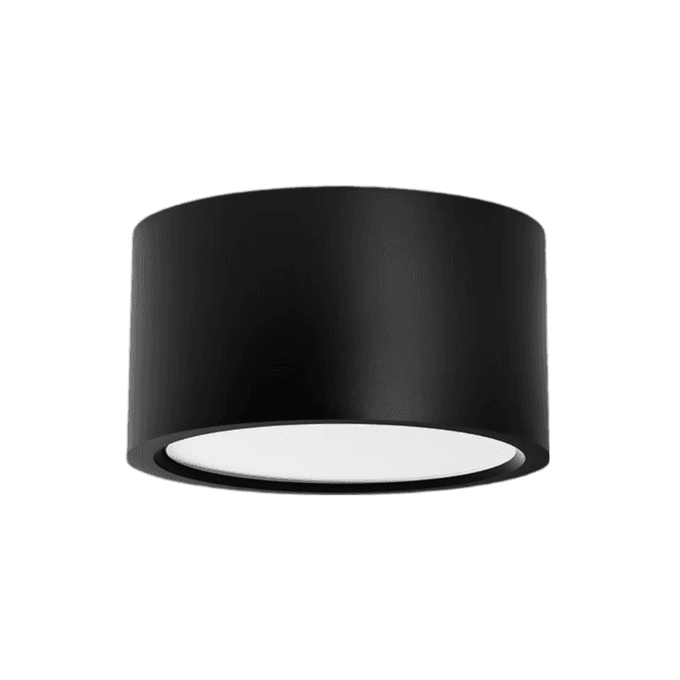

The perfect blend of modern elegance and reliable functionality with the HERO S surface-mounted LED downlight. Designed with a sleek cylindrical shape and a sophisticated finish, the HERO S effortlessly enhances any interior with its clean, minimalist aesthetic.  Available in six dimensions – ø110mm, ø130mm, ø150mm, ø180mm, ø200mm, ø240mm.

Ke stažení:
Technický list:
1
Technické ilustrace:
1
Montážní pokyny:
1
Certifikáty:
1
Fotometrická data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
Všeobecni údaje
Application

Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingSurface
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]25
IEC Protection ClassI
Optika
Diffuser MaterialPMMA
Diffuser Material DesignPMMA
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technická data
Total Consumption [W]25
Lumen Output [LM]2657
Efficacy lm/W106
Diffuser MaterialPMMA
Body MaterialAluminium
Beam Angle [°]100°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]200
Kryt
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY
Světelně-technická data
Light SourceLED
Total Consumption [W]25
Lumen Output [LM]2657
Efficacy lm/W106
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]100°
Light Distribution DIR/INDDIR
Technická data
TA [°C]-20C° / +40C°
Ingress Protection [IP]44
Mechanical Protection [IK]1
Rozměry
Diameter ø [mm]200
Generating PDF...

Varianty

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
HERO S PMMA 2657lm 25W 830 200 WH IP44 ON/OFFMI1904263100200252657106PMMA100°803000ON/OFF44WHITE
HERO S PMMA 2657lm 25W 830 200 BL IP44 ON/OFFMI2626164100200252657106PMMA100°803000ON/OFF44BLACK
HERO S PMMA 2657lm 25W 830 200 GR IP44 ON/OFFMI6636631100200252657106PMMA100°803000ON/OFF44GREY
HERO S PMMA 2657lm 25W 830 200 WH IP44 DALIMI1183849100200252657106PMMA100°803000DALI44WHITE
HERO S PMMA 2657lm 25W 830 200 BL IP44 DALIMI1485852100200252657106PMMA100°803000DALI44BLACK
HERO S PMMA 2657lm 25W 830 200 GR IP44 DALIMI4861292100200252657106PMMA100°803000DALI44GREY
HERO S PMMA 2657lm 25W 840 200 WH IP44 ON/OFFMI304482100200252657106PMMA100°804000ON/OFF44WHITE
HERO S PMMA 2657lm 25W 840 200 BL IP44 ON/OFFMI9492370100200252657106PMMA100°804000ON/OFF44BLACK
HERO S PMMA 2657lm 25W 840 200 GR IP44 ON/OFFMI422575100200252657106PMMA100°804000ON/OFF44GREY
HERO S PMMA 2657lm 25W 840 200 WH IP44 DALIMI499076100200252657106PMMA100°804000DALI44WHITE
HERO S PMMA 2657lm 25W 840 200 BL IP44 DALIMI1825938100200252657106PMMA100°804000DALI44BLACK
HERO S PMMA 2657lm 25W 840 200 GR IP44 DALIMI2186217100200252657106PMMA100°804000DALI44GREY
HERO S PMMA 2657lm 25W 930 200 WH IP44 ON/OFFMI850580100200252657106PMMA100°903000ON/OFF44WHITE
HERO S PMMA 2657lm 25W 930 200 BL IP44 ON/OFFMI362629100200252657106PMMA100°903000ON/OFF44BLACK
HERO S PMMA 2657lm 25W 930 200 GR IP44 ON/OFFMI5322387100200252657106PMMA100°903000ON/OFF44GREY
HERO S PMMA 2657lm 25W 930 200 WH IP44 DALIMI6219232100200252657106PMMA100°903000DALI44WHITE
HERO S PMMA 2657lm 25W 930 200 BL IP44 DALIMI6626456100200252657106PMMA100°903000DALI44BLACK
HERO S PMMA 2657lm 25W 930 200 GR IP44 DALIMI9505657100200252657106PMMA100°903000DALI44GREY
HERO S PMMA 2657lm 25W 940 200 WH IP44 ON/OFFMI6454550100200252657106PMMA100°904000ON/OFF44WHITE
HERO S PMMA 2657lm 25W 940 200 BL IP44 ON/OFFMI1524190100200252657106PMMA100°904000ON/OFF44BLACK
HERO S PMMA 2657lm 25W 940 200 GR IP44 ON/OFFMI8857634100200252657106PMMA100°904000ON/OFF44GREY
HERO S PMMA 2657lm 25W 940 200 WH IP44 DALIMI5539967100200252657106PMMA100°904000DALI44WHITE
HERO S PMMA 2657lm 25W 940 200 BL IP44 DALIMI2127349100200252657106PMMA100°904000DALI44BLACK
HERO S PMMA 2657lm 25W 940 200 GR IP44 DALIMI2960949100200252657106PMMA100°904000DALI44GREY
