KAL S 120
KAL S 120

Všeobecni údaje
Application

Minimalist design seamlessly integrates into various environments, from contemporary homes to stylish commercial interiors.

Product ShapeRound
MountingSurface
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]10
IEC Protection ClassI
Optika
Diffuser MaterialPC GLASS
Diffuser Material DesignPC GLASS
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technická data
Total Consumption [W]10
Lumen Output [LM]1108
Efficacy lm/W111
Diffuser MaterialPC GLASS
Body MaterialAluminium
Beam Angle [°]60°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]120
Popis:

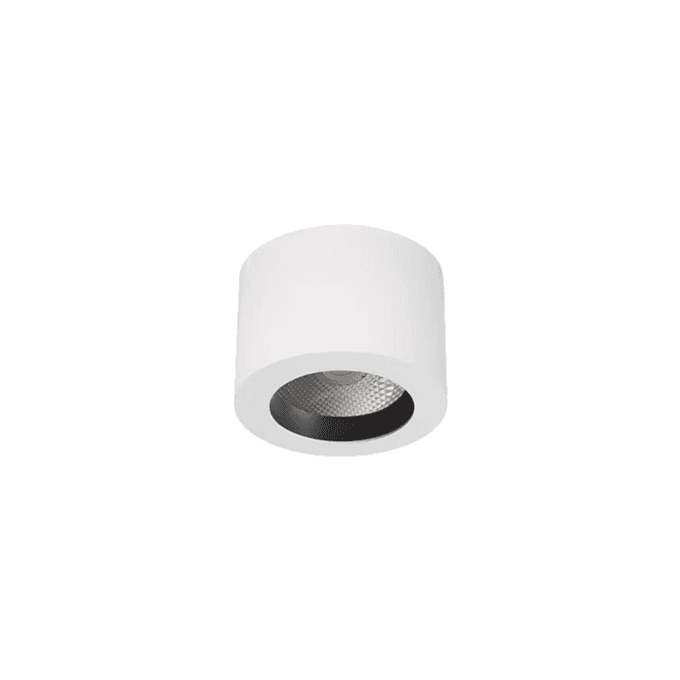

KAL S is a surface-mounted luminaire that combines modern design with exceptional functionality. Featuring a clean, cylindrical form in a pristine white, black and grey finish and a contrasting black inner detail. Crafted with high-quality materials and advanced LED technology, the KAL S ensures energy-efficient performance and superior lighting output. Available in six dimensions – ø100mm, ø120mm, ø150mm, ø180mm, ø200mm, ø240mm.

Ke stažení:
Technický list:
1
Technické ilustrace:
1
Montážní pokyny:
1
Certifikáty:
1
Fotometrická data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
Všeobecni údaje
Application

Minimalist design seamlessly integrates into various environments, from contemporary homes to stylish commercial interiors.

Product ShapeRound
MountingSurface
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]10
IEC Protection ClassI
Optika
Diffuser MaterialPC GLASS
Diffuser Material DesignPC GLASS
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technická data
Total Consumption [W]10
Lumen Output [LM]1108
Efficacy lm/W111
Diffuser MaterialPC GLASS
Body MaterialAluminium
Beam Angle [°]60°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]120
Kryt
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY
Světelně-technická data
Light SourceLED
Total Consumption [W]10
Lumen Output [LM]1108
Efficacy lm/W111
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]60°
Light Distribution DIR/INDDIR
Technická data
TA [°C]-20C° / +40C°
Ingress Protection [IP]44
Mechanical Protection [IK]1
Rozměry
Diameter ø [mm]120
Generating PDF...

Varianty

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
KAL S PC GLASS 1108lm 10W 830 120 WH IP44 ON/OFFMI1582743120120101108111PC GLASS60°803000ON/OFF44WHITE
KAL S PC GLASS 1108lm 10W 830 120 BL IP44 ON/OFFMI8569954120120101108111PC GLASS60°803000ON/OFF44BLACK
KAL S PC GLASS 1108lm 10W 830 120 GR IP44 ON/OFFMI2668630120120101108111PC GLASS60°803000ON/OFF44GREY
KAL S PC GLASS 1108lm 10W 830 120 WH IP44 DALIMI298200120120101108111PC GLASS60°803000DALI44WHITE
KAL S PC GLASS 1108lm 10W 830 120 BL IP44 DALIMI1199481120120101108111PC GLASS60°803000DALI44BLACK
KAL S PC GLASS 1108lm 10W 830 120 GR IP44 DALIMI2158691120120101108111PC GLASS60°803000DALI44GREY
KAL S PC GLASS 1108lm 10W 840 120 WH IP44 ON/OFFMI1279770120120101108111PC GLASS60°804000ON/OFF44WHITE
KAL S PC GLASS 1108lm 10W 840 120 BL IP44 ON/OFFMI6042716120120101108111PC GLASS60°804000ON/OFF44BLACK
KAL S PC GLASS 1108lm 10W 840 120 GR IP44 ON/OFFMI1065223120120101108111PC GLASS60°804000ON/OFF44GREY
KAL S PC GLASS 1108lm 10W 840 120 WH IP44 DALIMI7493247120120101108111PC GLASS60°804000DALI44WHITE
KAL S PC GLASS 1108lm 10W 840 120 BL IP44 DALIMI9752743120120101108111PC GLASS60°804000DALI44BLACK
KAL S PC GLASS 1108lm 10W 840 120 GR IP44 DALIMI5036157120120101108111PC GLASS60°804000DALI44GREY
KAL S PC GLASS 1108lm 10W 930 120 WH IP44 ON/OFFMI6581590120120101108111PC GLASS60°903000ON/OFF44WHITE
KAL S PC GLASS 1108lm 10W 930 120 BL IP44 ON/OFFMI939622120120101108111PC GLASS60°903000ON/OFF44BLACK
KAL S PC GLASS 1108lm 10W 930 120 GR IP44 ON/OFFMI5605021120120101108111PC GLASS60°903000ON/OFF44GREY
KAL S PC GLASS 1108lm 10W 930 120 WH IP44 DALIMI9100885120120101108111PC GLASS60°903000DALI44WHITE
KAL S PC GLASS 1108lm 10W 930 120 BL IP44 DALIMI7575434120120101108111PC GLASS60°903000DALI44BLACK
KAL S PC GLASS 1108lm 10W 930 120 GR IP44 DALIMI6919963120120101108111PC GLASS60°903000DALI44GREY
KAL S PC GLASS 1108lm 10W 940 120 WH IP44 ON/OFFMI8735618120120101108111PC GLASS60°904000ON/OFF44WHITE
KAL S PC GLASS 1108lm 10W 940 120 BL IP44 ON/OFFMI8313491120120101108111PC GLASS60°904000ON/OFF44BLACK
KAL S PC GLASS 1108lm 10W 940 120 GR IP44 ON/OFFMI8291557120120101108111PC GLASS60°904000ON/OFF44GREY
KAL S PC GLASS 1108lm 10W 940 120 WH IP44 DALIMI106854120120101108111PC GLASS60°904000DALI44WHITE
KAL S PC GLASS 1108lm 10W 940 120 BL IP44 DALIMI3704504120120101108111PC GLASS60°904000DALI44BLACK
KAL S PC GLASS 1108lm 10W 940 120 GR IP44 DALIMI4926185120120101108111PC GLASS60°904000DALI44GREY
