LUNA SEMI COVER OPAL 1100-2300lm 10-20W 8CC 290 WH NO IP54 DALI
Item No. MI672042
LUNA SEMI COVER

LUNA SEMI COVER OPAL 1100-2300lm 10-20W 8CC 290 WH NO IP54 DALI

MI672042

Všeobecni údaje
Key Advantages

LUNA led wall light features are as below:

Ceiling and wall luminaires for indoor use
3 diameters options (290mm, 360mm, 460mm)
3 mounting options: ceiling surface, pendant rod suspension, pendant cable suspension
High ingress protection rating: IP54 with IK07
Optional multi CCT: a button on the lamp to choose the CCT you desire
Multi power: a button on the lamp to choose the power you need
ON/OFF, DALI
Microwave sensor master / slave
Emergency function optional
Comply with new ERP and EMC
Can work with BESA box (51mm & 78mm)
high luminous efficiency up to 110lm/W
Life span 50000hr

Product ShapeRound
MountingSURFACE
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]10-20
IEC Protection ClassII
Optika
DiffuserOPAL
Type of ControlDALI
LED LIFETIME Ta25 [h]L70B50 50.000h
Technická data
Total Consumption [W]10-20
Lumen Output [LM]1100-2300
DiffuserOPAL
Housing MaterialPC
Beam Angle [°]135
Light distributionDIR
CCT [K]CCT2 3000, 4000
CRI80
MacAdam step3
LED LIFETIME Ta25 [h]L70B50 50.000h
Type of ControlDALI
Housing colorWHITE, NO COVER
IP54
Mechanical Protection [IK]7
Main Feed AC [V]220-240
Dimensions (length, width, height)0 x 0 x 58 mm [LxWxH]
Diameter ø [mm]290
Weight [KG]0.55 kg
Popis:

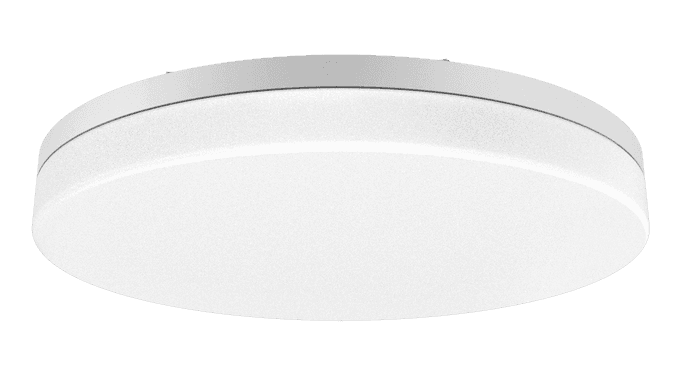

The LUNA bulkhead features a classic minimalist design and can be installed as a ceiling surface, ceiling pendant or wall light indoors. This LED fixture offers a high ingress protection rating of IP54, making it suitable for applications that require higher level of protection.

Key Advantages:

LUNA led wall light features are as below:

Ceiling and wall luminaires for indoor use
3 diameters options (290mm, 360mm, 460mm)
3 mounting options: ceiling surface, pendant rod suspension, pendant cable suspension
High ingress protection rating: IP54 with IK07
Optional multi CCT: a button on the lamp to choose the CCT you desire
Multi power: a button on the lamp to choose the power you need
ON/OFF, DALI
Microwave sensor master / slave
Emergency function optional
Comply with new ERP and EMC
Can work with BESA box (51mm & 78mm)
high luminous efficiency up to 110lm/W
Life span 50000hr

Ke stažení:
Technický list:
1
Montážní pokyny:
1
Certifikáty:
1
Fotometrická data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AD - IP/54.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
Všeobecni údaje
Key Advantages

LUNA led wall light features are as below:

Ceiling and wall luminaires for indoor use
3 diameters options (290mm, 360mm, 460mm)
3 mounting options: ceiling surface, pendant rod suspension, pendant cable suspension
High ingress protection rating: IP54 with IK07
Optional multi CCT: a button on the lamp to choose the CCT you desire
Multi power: a button on the lamp to choose the power you need
ON/OFF, DALI
Microwave sensor master / slave
Emergency function optional
Comply with new ERP and EMC
Can work with BESA box (51mm & 78mm)
high luminous efficiency up to 110lm/W
Life span 50000hr

Product ShapeRound
MountingSURFACE
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]10-20
IEC Protection ClassII
Optika
DiffuserOPAL
Type of ControlDALI
LED LIFETIME Ta25 [h]L70B50 50.000h
Technická data
Total Consumption [W]10-20
Lumen Output [LM]1100-2300
DiffuserOPAL
Housing MaterialPC
Beam Angle [°]135
Light distributionDIR
CCT [K]CCT2 3000, 4000
CRI80
MacAdam step3
LED LIFETIME Ta25 [h]L70B50 50.000h
Type of ControlDALI
Housing colorWHITE, NO COVER
IP54
Mechanical Protection [IK]7
Main Feed AC [V]220-240
Dimensions (length, width, height)0 x 0 x 58 mm [LxWxH]
Diameter ø [mm]290
Weight [KG]0.55 kg
Kryt
Housing MaterialPC
Housing colorWHITE, NO COVER
FinishMatt
Světelně-technická data
Light SourcePCB LED
Total Consumption [W]10-20
Lumen Output [LM]1100-2300
CCT [K]CCT2 3000, 4000
CRI80
MacAdam step3
Beam Angle [°]135
Light distributionDIR
Technická data
IP54
Mechanical Protection [IK]7
Rozměry
Dimensions (length, width, height)0 x 0 x 58 mm [LxWxH]
Diameter ø [mm]290
Weight [KG]0.55 kg
