MS4065 MPR
MS4065 MPR

Všeobecni údaje

Application	Effortless assembly and versatile installation options, unlocking endless creative possibilities for interior spaces. It's modern aesthetic and streamlined construction make it the perfect choice for both general and decorative lighting, seamlessly enhancing spaces from residential homes to public areas.
Key Advantages	Microprismatic anti-glare diffuser and diffusing film designed for low <22 UGR. Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage. Options: CRI90 values may differ with a tolerance of ±10% Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control Emergency version available Temperature [K] available on request 2700\|3000\|4000\|5000\|5700\|6500 Interchangeable CCT between 2700K to 6500K with slide switch available on request Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS
Product Shape	Linear
Type	Linear
Mounting	Surface, Pendant

Elektrická data

Main Feed AC [V]	220-240V AC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	15 – 45
IEC Protection Class	I

Optika

Diffuser Material	PMMA
Diffuser Material Design	Microprismatic
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h

Technická data

Total Consumption [W]	15 – 45
Lumen Output [LM]	1500 – 4500
Efficacy lm/W	100
Diffuser Material	PMMA
Body Material	AL6063-T5
Beam Angle [°]	80
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	80, 90
MacAdam step	<3
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	WHITE, BLACK, SILVER
Ingress Protection [IP]	20
Mechanical Protection [IK]	7
Main Feed AC [V]	220-240V AC

Popis:

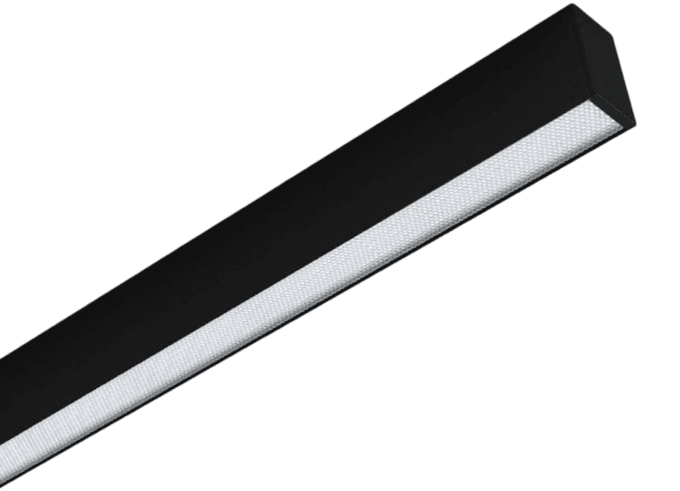

MS40 MPR LINEAR with microprismatic anti-glare diffuser and diffusing film designed for low UGR.
An elegant and timeless linear system designed to create stunning arrangements in any interior.
The modular linear system features versatile connection options, allowing endless installation possibilities for the end user.

Key Advantages:

Microprismatic anti-glare diffuser and diffusing film designed for low <22 UGR.
Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage.

Options:

CRI90 values may differ with a tolerance of ±10%
Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control
Emergency version available
Temperature [K] available on request 2700|3000|4000|5000|5700|6500
Interchangeable CCT between 2700K to 6500K with slide switch available on request
Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS

Ke stažení:

Technický list:

Technické ilustrace:

Montážní pokyny:

Certifikáty:

Fotometrická data:

Všeobecni údaje

Application	Effortless assembly and versatile installation options, unlocking endless creative possibilities for interior spaces. It's modern aesthetic and streamlined construction make it the perfect choice for both general and decorative lighting, seamlessly enhancing spaces from residential homes to public areas.
Key Advantages	Microprismatic anti-glare diffuser and diffusing film designed for low <22 UGR. Designed for convenience, it offers a cost-effective solution with easy transportation and compact storage. Options: CRI90 values may differ with a tolerance of ±10% Non-dimmable / 0-10V dimming / DALI dimming / Triac dimming / PUSH dimming / PWM dimming / sensor and smart control Emergency version available Temperature [K] available on request 2700\|3000\|4000\|5000\|5700\|6500 Interchangeable CCT between 2700K to 6500K with slide switch available on request Choose mounting accessories SURFACE, PENDANT, RECESSED-TRIMLESS
Product Shape	Linear
Type	Linear
Mounting	Surface, Pendant

Elektrická data

Main Feed AC [V]	220-240V AC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	15 – 45
IEC Protection Class	I

Optika

Diffuser Material	PMMA
Diffuser Material Design	Microprismatic
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h

Technická data

Total Consumption [W]	15 – 45
Lumen Output [LM]	1500 – 4500
Efficacy lm/W	100
Diffuser Material	PMMA
Body Material	AL6063-T5
Beam Angle [°]	80
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	80, 90
MacAdam step	<3
LED LIFETIME Ta25 [h]	L80B50 ≥ 75 000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	WHITE, BLACK, SILVER
Ingress Protection [IP]	20
Mechanical Protection [IK]	7
Main Feed AC [V]	220-240V AC

Kryt

Body Material	AL6063-T5
Body Color	WHITE, BLACK, SILVER

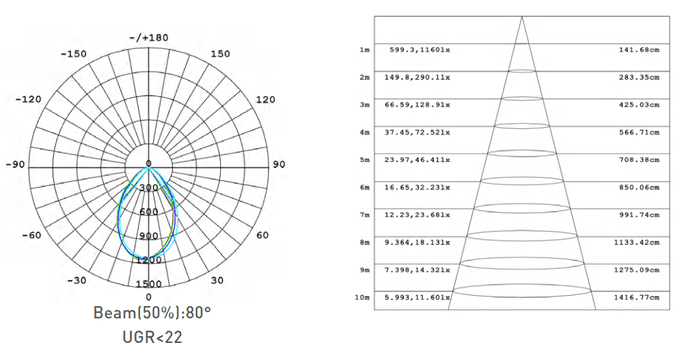

Světelně-technická data

Light Source	LED
Total Consumption [W]	15 – 45
Lumen Output [LM]	1500 – 4500
Efficacy lm/W	100
LED Color Temperature CCT [K]	3000, 4000
Color Rendering Index [CRI]	80, 90
UGR	<22
MacAdam step	<3
Beam Angle [°]	80
Light Distribution DIR/IND	DIR

Technická data

TA [°C]	-20 to +45
Ingress Protection [IP]	20
Mechanical Protection [IK]	7

Varianty

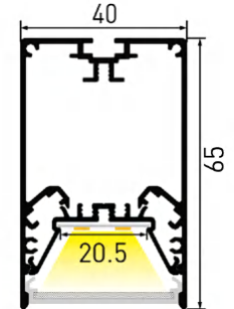

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	Type of Control	IP	Color
MS4065S-GM MPR 1500lm 15W 840 600 Wh IP20 ON/OFF	MI9206599	600	40	65	15	1500	100	MPR	80	80	4000	ON/OFF	20	WHITE
MS4065S-GM MPR 1500lm 15W 830 600 Wh IP20 ON/OFF	MI8338480	600	40	65	15	1500	100	MPR	80	80	3000	ON/OFF	20	WHITE
MS4065S-GM MPR 1500lm 15W 840 600 Wh IP20 DALI	MI9475832	600	40	65	15	1500	100	MPR	80	80	4000	DALI	20	WHITE
MS4065S-GM MPR 1500lm 15W 830 600 Wh IP20 DALI	MI3333641	600	40	65	15	1500	100	MPR	80	80	3000	DALI	20	WHITE
MS4065S-GM MPR 1500lm 15W 840 600 Bl IP20 ON/OFF	MI7270948	600	40	65	15	1500	100	MPR	80	80	4000	ON/OFF	20	BLACK
MS4065S-GM MPR 1500lm 15W 830 600 Bl IP20 ON/OFF	MI7054157	600	40	65	15	1500	100	MPR	80	80	3000	ON/OFF	20	BLACK
MS4065S-GM MPR 1500lm 15W 840 600 Bl IP20 DALI	MI8732993	600	40	65	15	1500	100	MPR	80	80	4000	DALI	20	BLACK
MS4065S-GM MPR 1500lm 15W 830 600 Bl IP20 DALI	MI7490213	600	40	65	15	1500	100	MPR	80	80	3000	DALI	20	BLACK
MS4065S-GM MPR 1500lm 15W 840 600 Si IP20 ON/OFF	MI3590513	600	40	65	15	1500	100	MPR	80	80	4000	ON/OFF	20	SILVER
MS4065S-GM MPR 1500lm 15W 830 600 Si IP20 ON/OFF	MI5737516	600	40	65	15	1500	100	MPR	80	80	3000	ON/OFF	20	SILVER
MS4065S-GM MPR 1500lm 15W 840 600 Si IP20 DALI	MI735835	600	40	65	15	1500	100	MPR	80	80	4000	DALI	20	SILVER
MS4065S-GM MPR 1500lm 15W 830 600 Si IP20 DALI	MI4929745	600	40	65	15	1500	100	MPR	80	80	3000	DALI	20	SILVER
MS4065S-GM MPR 2000lm 20W 840 800 Wh IP20 ON/OFF	MI789555	800	40	65	20	2000	100	MPR	80	80	4000	ON/OFF	20	WHITE
MS4065S-GM MPR 2000lm 20W 830 800 Wh IP20 ON/OFF	MI1934092	800	40	65	20	2000	100	MPR	80	80	3000	ON/OFF	20	WHITE
MS4065S-GM MPR 2000lm 20W 840 800 Wh IP20 DALI	MI4699268	800	40	65	20	2000	100	MPR	80	80	4000	DALI	20	WHITE
MS4065S-GM MPR 2000lm 20W 830 800 Wh IP20 DALI	MI4684029	800	40	65	20	2000	100	MPR	80	80	3000	DALI	20	WHITE
MS4065S-GM MPR 2000lm 20W 840 800 Bl IP20 ON/OFF	MI1949212	800	40	65	20	2000	100	MPR	80	80	4000	ON/OFF	20	BLACK
MS4065S-GM MPR 2000lm 20W 830 800 Bl IP20 ON/OFF	MI8588712	800	40	65	20	2000	100	MPR	80	80	3000	ON/OFF	20	BLACK
MS4065S-GM MPR 2000lm 20W 840 800 Bl IP20 DALI	MI3632593	800	40	65	20	2000	100	MPR	80	80	4000	DALI	20	BLACK
MS4065S-GM MPR 2000lm 20W 830 800 Bl IP20 DALI	MI1623274	800	40	65	20	2000	100	MPR	80	80	3000	DALI	20	BLACK
MS4065S-GM MPR 2000lm 20W 840 800 Si IP20 ON/OFF	MI6752662	800	40	65	20	2000	100	MPR	80	80	4000	ON/OFF	20	SILVER
MS4065S-GM MPR 2000lm 20W 830 800 Si IP20 ON/OFF	MI6980808	800	40	65	20	2000	100	MPR	80	80	3000	ON/OFF	20	SILVER
MS4065S-GM MPR 2000lm 20W 840 800 Si IP20 DALI	MI9876205	800	40	65	20	2000	100	MPR	80	80	4000	DALI	20	SILVER
MS4065S-GM MPR 2000lm 20W 830 800 Si IP20 DALI	MI7426386	800	40	65	20	2000	100	MPR	80	80	3000	DALI	20	SILVER
MS4065S-GM MPR 2500lm 25W 840 1000 Wh IP20 ON/OFF	MI1995156	1000	40	65	25	2500	100	MPR	80	80	4000	ON/OFF	20	WHITE
