NODUS MEDIUM BRASS 220-240V AC 50/60Hz
NODUS MEDIUM BRASS 220-240V AC 50/60Hz

Všeobecni údaje

Application	FLOODLIGHTS
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	BRACKET

Elektrická data

Main Feed AC [V]	220-240VAC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	20
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 3G1

Optika

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF
LED LIFETIME Ta25 [h]	≥ 60 000h

Technická data

Total Consumption [W]	20
Lumen Output [LM]	1440 – 1720
Efficacy lm/W	72 – 86
Diffuser Material	Tempered glass
Body Material	BRASS
Beam Angle [°]	10, 20, 30, 45
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700/3000/4000/5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	BRASS
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	220-240VAC
Diameter ø [mm]	115.5

Popis:

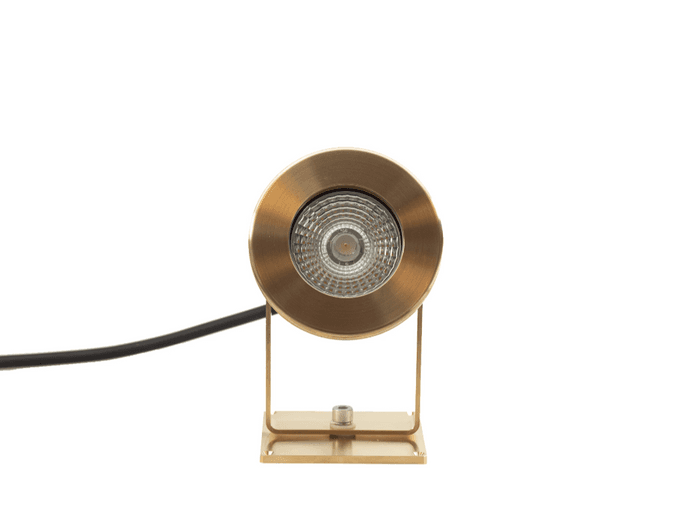

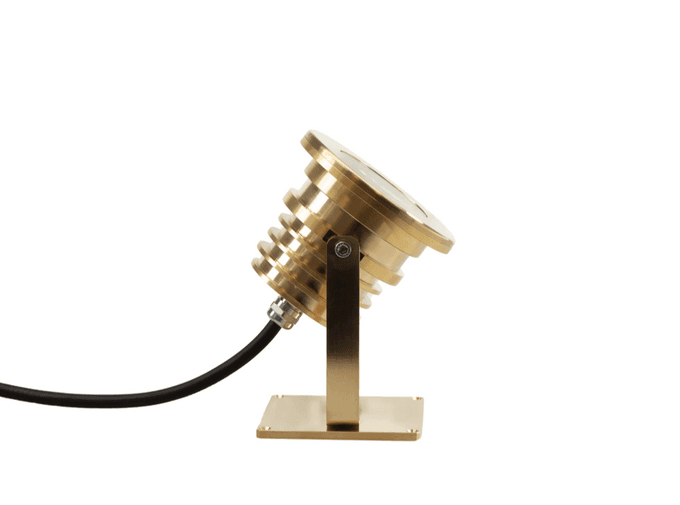

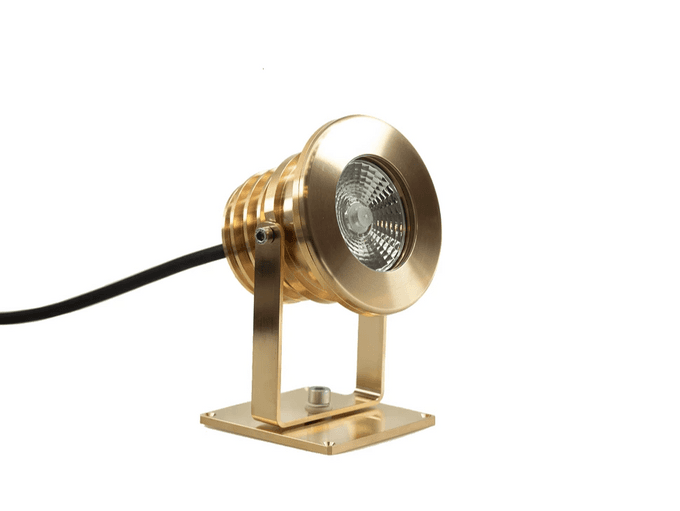

Nodus Medium is made of brass. The projector comes in a plate version. Power 18W. This luminaire is aimed at people who want to make the destination of the lamps look unique. Nodus Medium can be used to illuminate many places and objects, such as parks, gardens, exterior walls, monuments.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Ke stažení:

Technický list:

Technické ilustrace:

Montážní pokyny:

Certifikáty:

Fotometrická data:

Všeobecni údaje

Application	FLOODLIGHTS
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	BRACKET

Elektrická data

Main Feed AC [V]	220-240VAC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	20
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 3G1

Optika

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF
LED LIFETIME Ta25 [h]	≥ 60 000h

Technická data

Total Consumption [W]	20
Lumen Output [LM]	1440 – 1720
Efficacy lm/W	72 – 86
Diffuser Material	Tempered glass
Body Material	BRASS
Beam Angle [°]	10, 20, 30, 45
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700/3000/4000/5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	BRASS
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	220-240VAC
Diameter ø [mm]	115.5

Kryt

Body Material	BRASS
Body Color	BRASS

Světelně-technická data

Light Source	LED
Total Consumption [W]	20
Lumen Output [LM]	1440 – 1720
Efficacy lm/W	72 – 86
LED Color Temperature CCT [K]	2700/3000/4000/5000
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	10, 20, 30, 45
Light Distribution DIR/IND	DIR

Technická data

TA [°C]	-20 to +55
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

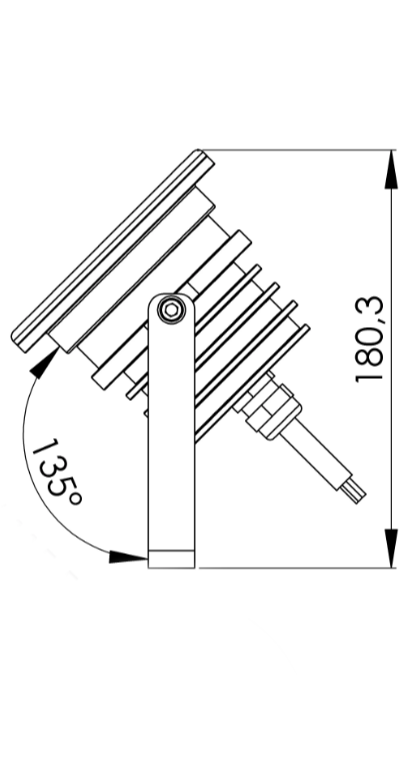

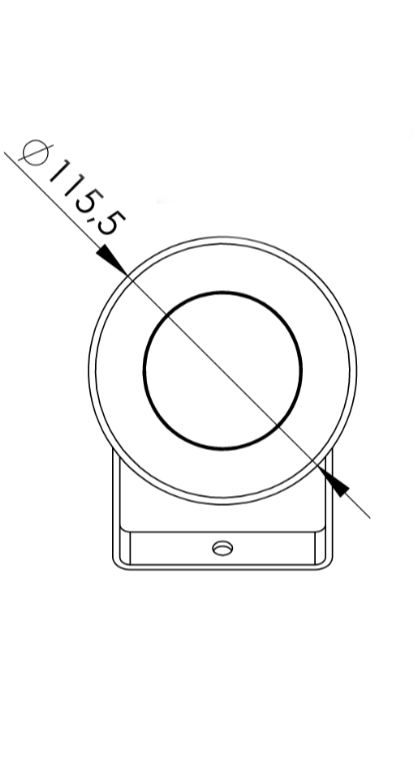

Rozměry

Diameter ø [mm]	115.5

Varianty

Item	Code	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	IP	Color
GLASS 1440lm 20W 822 115.5 BR IP67	MI2258746	180	115.5	20	1440	72	GLASS	10	80	2200	67	BRASS
GLASS 1440lm 20W 822 115.5 BR IP67	MI8632663	180	115.5	20	1440	72	GLASS	20	80	2200	67	BRASS
GLASS 1440lm 20W 822 115.5 BR IP67	MI6117448	180	115.5	20	1440	72	GLASS	30	80	2200	67	BRASS
GLASS 1510lm 20W 827 115.5 BR IP67	MI2332805	180	115.5	20	1510	76	GLASS	10	80	2700	67	BRASS
GLASS 1510lm 20W 827 115.5 BR IP67	MI1214222	180	115.5	20	1510	76	GLASS	20	80	2700	67	BRASS
GLASS 1510lm 20W 827 115.5 BR IP67	MI5150157	180	115.5	20	1510	76	GLASS	30	80	2700	67	BRASS
GLASS 1580lm 20W 830 115.5 BR IP67	MI9110469	180	115.5	20	1580	79	GLASS	10	80	3000	67	BRASS
GLASS 1580lm 20W 830 115.5 BR IP67	MI5738654	180	115.5	20	1580	79	GLASS	20	80	3000	67	BRASS
GLASS 1580lm 20W 830 115.5 BR IP67	MI4472096	180	115.5	20	1580	79	GLASS	30	80	3000	67	BRASS
GLASS 1650lm 20W 840 115.5 BR IP67	MI5632569	180	115.5	20	1650	83	GLASS	10	80	4000	67	BRASS
GLASS 1650lm 20W 840 115.5 BR IP67	MI2689891	180	115.5	20	1650	83	GLASS	20	80	4000	67	BRASS
GLASS 1650lm 20W 840 115.5 BR IP67	MI8288246	180	115.5	20	1650	83	GLASS	30	80	4000	67	BRASS
GLASS 1720lm 20W 850 115.5 BR IP67	MI5352182	180	115.5	20	1720	86	GLASS	10	80	5000	67	BRASS
GLASS 1720lm 20W 850 115.5 BR IP67	MI7827992	180	115.5	20	1720	86	GLASS	20	80	5000	67	BRASS
GLASS 1720lm 20W 850 115.5 BR IP67	MI1193067	180	115.5	20	1720	86	GLASS	30	80	5000	67	BRASS
