NODUS MICRO BRASS 12V/24V DC
NODUS MICRO BRASS 12V/24V DC

Všeobecni údaje

Application	FLOODLIGHTS
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	BRACKET

Elektrická data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	2
IEC Protection Class	III
Connector Type	0.5m
Wiring	H05RN-F 2X0.5

Optika

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technická data

Total Consumption [W]	2
Lumen Output [LM]	170 – 205
Efficacy lm/W	85 – 103
Diffuser Material	Tempered glass
Body Material	BRASS
Beam Angle [°]	17, 31, 39
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700/3000/4000/5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	BRASS
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	30

Popis:

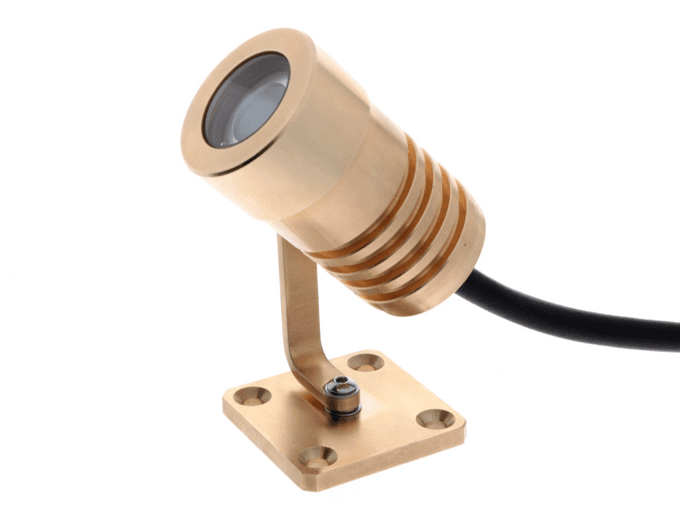

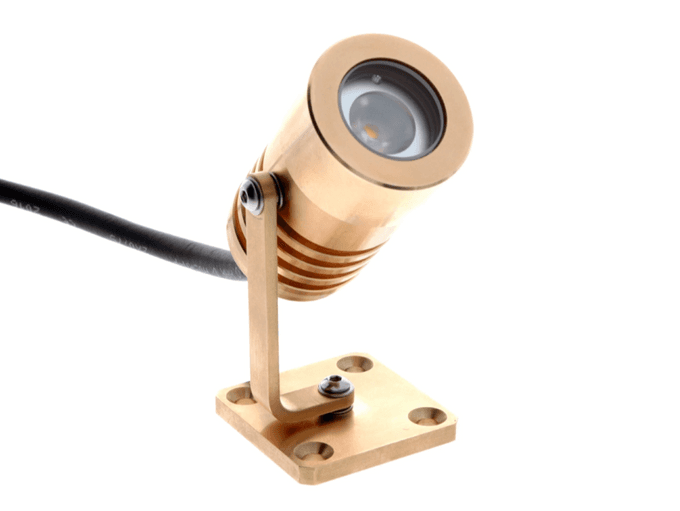

Nodus Micro Brass is the smallest product in our family of projectors. It is made of brass. The projector comes in a version on a mounting plate or on a spike (for ground mounting). Power 2W. Nodus Micro Brass luminaire can be used to illuminate many places and objects, such as: parks, gardens, architectural elements.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Ke stažení:

Technický list:

Technické ilustrace:

Montážní pokyny:

Certifikáty:

Fotometrická data:

Všeobecni údaje

Application	FLOODLIGHTS
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	BRACKET

Elektrická data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	2
IEC Protection Class	III
Connector Type	0.5m
Wiring	H05RN-F 2X0.5

Optika

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technická data

Total Consumption [W]	2
Lumen Output [LM]	170 – 205
Efficacy lm/W	85 – 103
Diffuser Material	Tempered glass
Body Material	BRASS
Beam Angle [°]	17, 31, 39
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700/3000/4000/5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	BRASS
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	30

Kryt

Body Material	BRASS
Body Color	BRASS

Světelně-technická data

Light Source	LED
Total Consumption [W]	2
Lumen Output [LM]	170 – 205
Efficacy lm/W	85 – 103
LED Color Temperature CCT [K]	2700/3000/4000/5000
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	17, 31, 39
Light Distribution DIR/IND	DIR

Technická data

TA [°C]	-20 to +55
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

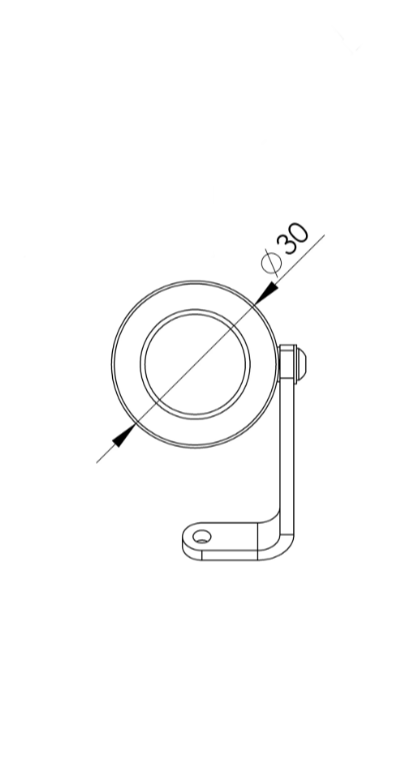

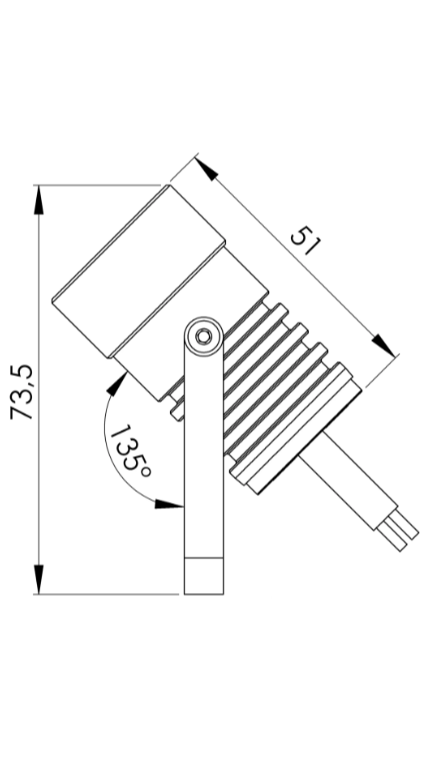

Rozměry

Diameter ø [mm]	30

Varianty

Item	Code	Lenght	Width	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	IP	Color
GLASS 170lm 2W 827 30 51 BR IP67	MI5534378	51	30	74	30	2	170	85	GLASS	17	80	2700	67	BRASS
GLASS 170lm 2W 827 30 51 BR IP67	MI6998445	51	30	74	30	2	170	85	GLASS	31	80	2700	67	BRASS
GLASS 170lm 2W 827 30 51 BR IP67	MI5850624	51	30	74	30	2	170	85	GLASS	39	80	2700	67	BRASS
GLASS 180lm 2W 830 30 51 BR IP67	MI3044662	51	30	74	30	2	180	90	GLASS	17	80	3000	67	BRASS
GLASS 180lm 2W 830 30 51 BR IP67	MI1202853	51	30	74	30	2	180	90	GLASS	31	80	3000	67	BRASS
GLASS 180lm 2W 830 30 51 BR IP67	MI7206050	51	30	74	30	2	180	90	GLASS	39	80	3000	67	BRASS
GLASS 195lm 2W 840 30 51 BR IP67	MI8701602	51	30	74	30	2	195	98	GLASS	17	80	4000	67	BRASS
GLASS 195lm 2W 840 30 51 BR IP67	MI3833340	51	30	74	30	2	195	98	GLASS	31	80	4000	67	BRASS
GLASS 195lm 2W 840 30 51 BR IP67	MI1694091	51	30	74	30	2	195	98	GLASS	39	80	4000	67	BRASS
GLASS 205lm 2W 850 30 51 BR IP67	MI8995713	51	30	74	30	2	205	103	GLASS	17	80	5000	67	BRASS
GLASS 205lm 2W 850 30 51 BR IP67	MI6531563	51	30	74	30	2	205	103	GLASS	31	80	5000	67	BRASS
GLASS 205lm 2W 850 30 51 BR IP67	MI5237080	51	30	74	30	2	205	103	GLASS	39	80	5000	67	BRASS
