NODUS NSCOPE 220-240V AC 50/60Hz
NODUS NSCOPE 220-240V AC 50/60Hz

Všeobecni údaje

Application	FLOODLIGHTS
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	BRACKET

Elektrická data

Main Feed AC [V]	220-240VAC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	13
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 3G1

Optika

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF
LED LIFETIME Ta25 [h]	≥ 60 000h

Technická data

Total Consumption [W]	13
Lumen Output [LM]	1200 – 1600
Efficacy lm/W	93 – 124
Diffuser Material	Tempered glass
Body Material	SS316L
Beam Angle [°]	10, 20, 30
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700/3000/4000/5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	220-240VAC
Diameter ø [mm]	82

Popis:

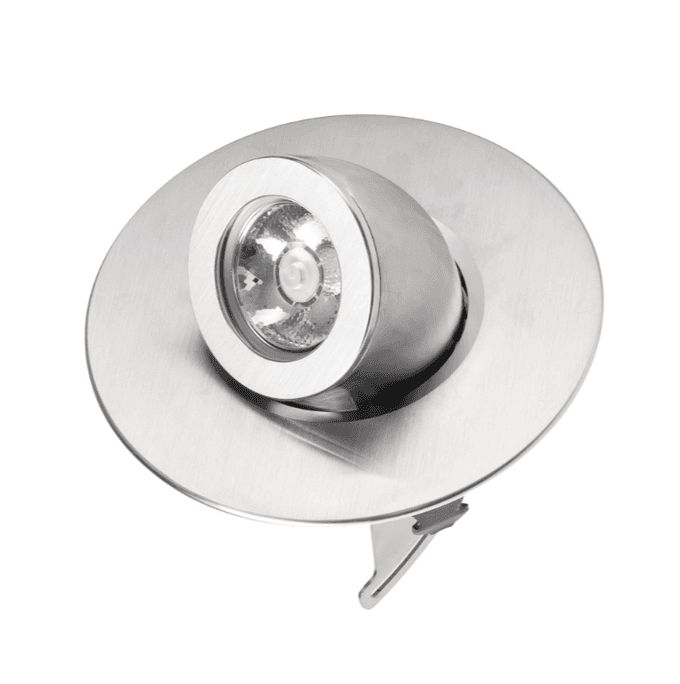

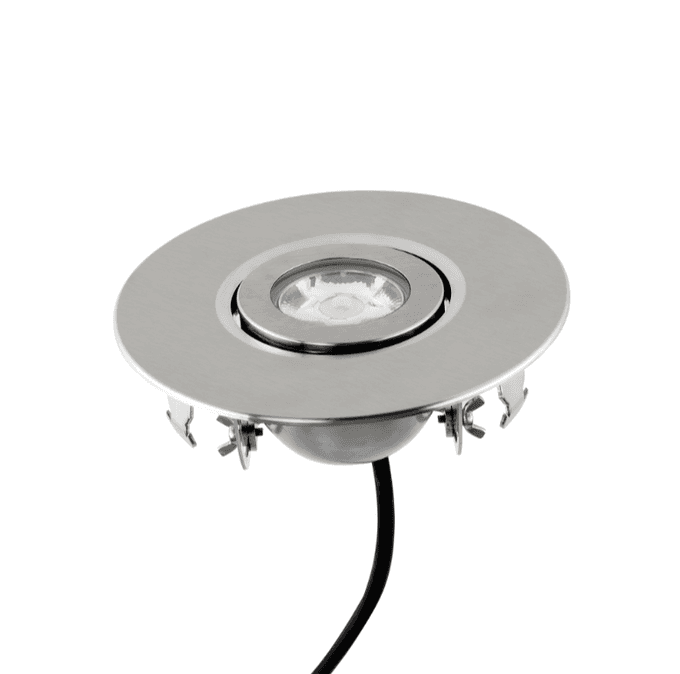

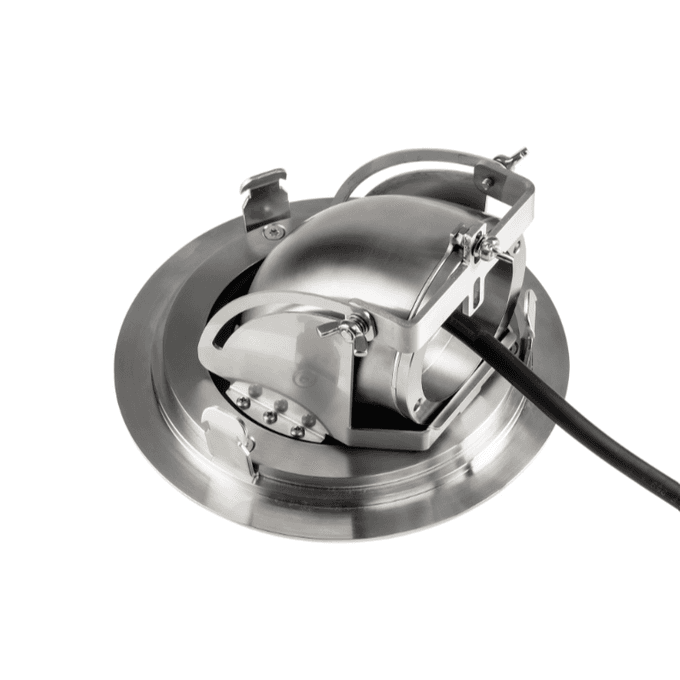

The Nodus was designed for the most demanding customers who are looking for customized solutions. Made of 316L steel. Power of 13W. Nodus can be used to illuminate many places and objects such as parks, gardens, terraces, squares.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Ke stažení:

Technický list:

Technické ilustrace:

Montážní pokyny:

Certifikáty:

Fotometrická data:

Všeobecni údaje

Application	FLOODLIGHTS
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	BRACKET

Elektrická data

Main Feed AC [V]	220-240VAC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	13
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 3G1

Optika

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF
LED LIFETIME Ta25 [h]	≥ 60 000h

Technická data

Total Consumption [W]	13
Lumen Output [LM]	1200 – 1600
Efficacy lm/W	93 – 124
Diffuser Material	Tempered glass
Body Material	SS316L
Beam Angle [°]	10, 20, 30
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700/3000/4000/5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	220-240VAC
Diameter ø [mm]	82

Kryt

Body Material	SS316L
Body Color	SST

Světelně-technická data

Light Source	LED
Total Consumption [W]	13
Lumen Output [LM]	1200 – 1600
Efficacy lm/W	93 – 124
LED Color Temperature CCT [K]	2700/3000/4000/5000
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	10, 20, 30
Light Distribution DIR/IND	DIR

Technická data

TA [°C]	-20 to +55
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

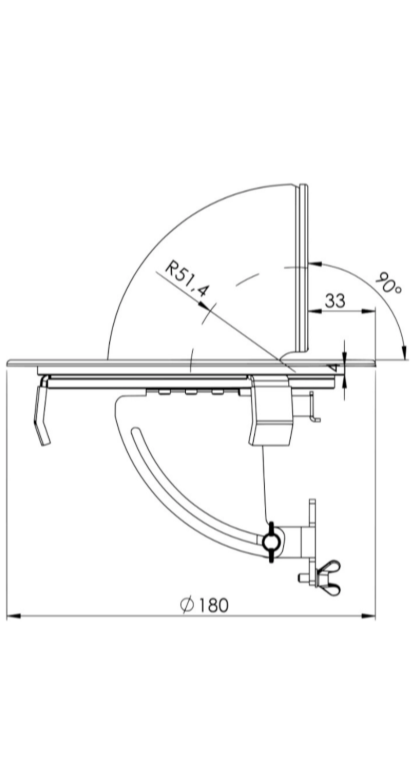

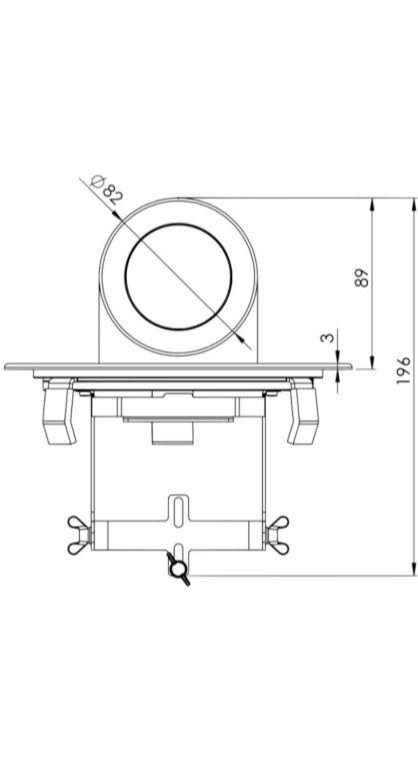

Rozměry

Diameter ø [mm]	82

Varianty

Item	Code	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	IP	Color
GLASS 1200lm 13W 827 82 SS IP67	MI9228763	82	13	1200	93	GLASS	10	80	2700	67	SST
GLASS 1200lm 13W 827 82 SS IP67	MI3361622	82	13	1200	93	GLASS	20	80	2700	67	SST
GLASS 1200lm 13W 827 82 SS IP67	MI498933	82	13	1200	93	GLASS	30	80	2700	67	SST
GLASS 1400lm 13W 830 82 SS IP67	MI7678092	82	13	1400	108	GLASS	10	80	3000	67	SST
GLASS 1400lm 13W 830 82 SS IP67	MI5777706	82	13	1400	108	GLASS	20	80	3000	67	SST
GLASS 1400lm 13W 830 82 SS IP67	MI1086048	82	13	1400	108	GLASS	30	80	3000	67	SST
GLASS 1600lm 13W 840 82 SS IP67	MI8142191	82	13	1600	124	GLASS	10	80	4000	67	SST
GLASS 1600lm 13W 840 82 SS IP67	MI6086473	82	13	1600	124	GLASS	20	80	4000	67	SST
GLASS 1600lm 13W 840 82 SS IP67	MI5517981	82	13	1600	124	GLASS	30	80	4000	67	SST
