ORBIS 100 SURFACE TRANSPARENT 1850lm 15W 940 120 GR IP20 ON/OFF
Item No. MI103632755
ORBIS 100 SURFACE

ORBIS 100 SURFACE TRANSPARENT 1850lm 15W 940 120 GR IP20 ON/OFF

MI103632755

Všeobecni údaje
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRectangular
TypeSpotlight
MountingS
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]15
IEC Protection ClassI
Optika
DiffuserTRANSPARENT
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L90B10 60.000h
Technická data
Total Consumption [W]15
Lumen Output [LM]1850
Efficacy [lm/W]123
DiffuserTRANSPARENT
Beam Angle [°]60°
Light distributionDIR
CCT [K]4000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L90B10 60.000h
Type of ControlON/OFF
Housing colorGREY
IP20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Dimensions (length, width, height)120 x 0 x 0 mm [LxWxH]
Popis:

A small, configurable spotlight – surface downlight for interior lighting. A wide range of technical parameter and luminaire appearance variants for versatile applications. COB technology and a high-performance, metalized, facetted plastic reflector guarantee the optimum construction of the optical system and a high efficiency. The tempered transparent glass protects the luminaire against dust, dirt. A ring or frame made of die-cast aluminium or steel sheet, painted white or black as a standard.

Key Advantages:

Various optic beam angle versions designed to suit any applications and requirements.

Ke stažení:
Technický list:
1
Montážní pokyny:
1
Certifikáty:
1

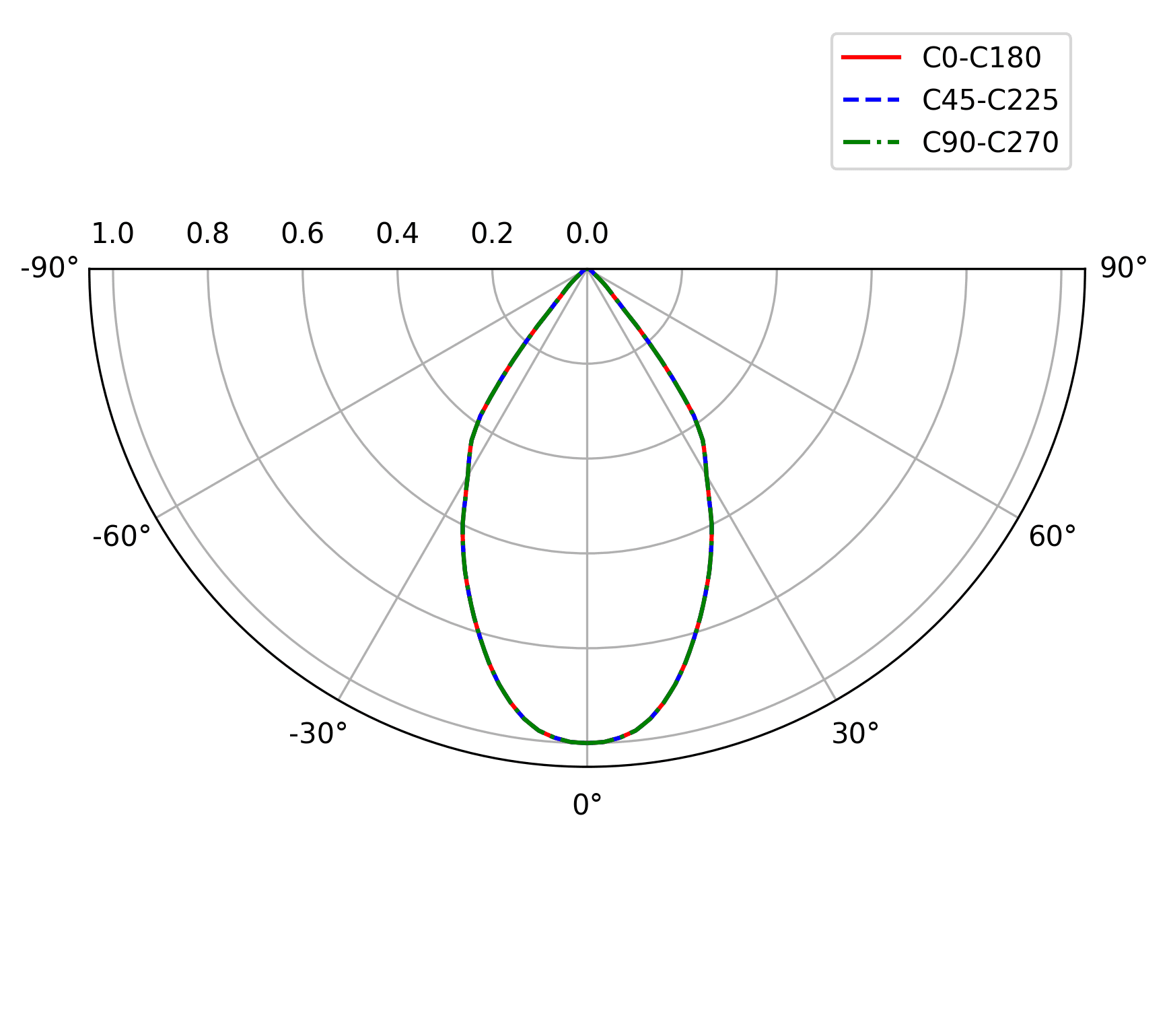

Fotometrická data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/J - MOUNTING/S.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
ORBIS 100 SURFACE
Všeobecni údaje
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRectangular
TypeSpotlight
MountingS
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]15
IEC Protection ClassI
Optika
DiffuserTRANSPARENT
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L90B10 60.000h
Technická data
Total Consumption [W]15
Lumen Output [LM]1850
Efficacy [lm/W]123
DiffuserTRANSPARENT
Beam Angle [°]60°
Light distributionDIR
CCT [K]4000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L90B10 60.000h
Type of ControlON/OFF
Housing colorGREY
IP20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Dimensions (length, width, height)120 x 0 x 0 mm [LxWxH]
Kryt
Housing colorGREY
FinishMatt, Gloss
Světelně-technická data
Light SourceLED
Total Consumption [W]15
Lumen Output [LM]1850
Efficacy [lm/W]123
CCT [K]4000
CRI90
MacAdam step3
Beam Angle [°]60°
Light distributionDIR
Technická data
IP20
Mechanical Protection [IK]01
Rozměry
Dimensions (length, width, height)120 x 0 x 0 mm [LxWxH]
Generating PDF...

Technické ilustrace

ORBIS 100 SURFACE
