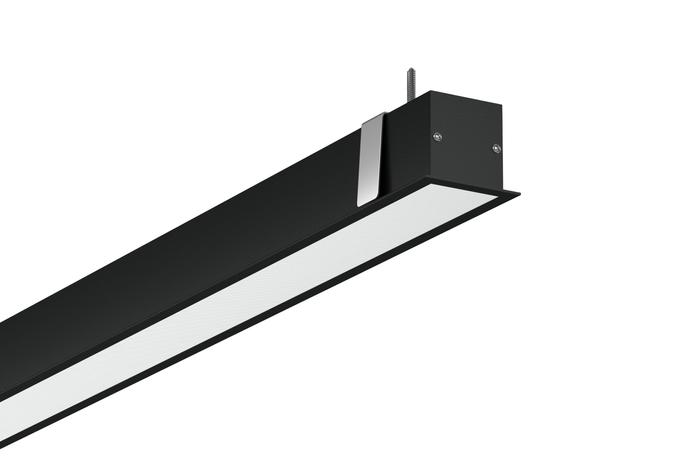

PROLINE 45 RECESSED
PROLINE 45 RECESSED

Všeobecni údaje

Key Advantages	Various optics versions designed to suit any applications and requirements: OPAL, MICROPRISMATIC, FROST, BLACK, LOUVRE, DARK POINT, WHITE POINT ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.
Product Shape	Rectangular
Mounting	Recessed

Elektrická data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	2 - 200
IEC Protection Class	I

Optika

Diffuser Material	Acrylic glass
Diffuser Material Design	Opal, MPR, Black, Louvre, DK Points, WH Points, Lens
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 100.000h

Technická data

Total Consumption [W]	2 - 200
Lumen Output [LM]	100 - 23600
Efficacy lm/W	up to 170
Diffuser Material	Acrylic glass
Body Material	Anodized, Alu
Beam Angle [°]	Depending on a diffuser application
Light Distribution DIR/IND	DIR, IND
LED Color Temperature CCT [K]	3000, 4000, 2700 - 6500
Color Rendering Index [CRI]	80, 90
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B50 100.000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	White 9016, Black 9005, Gray 9006
Ingress Protection [IP]	20
Mechanical Protection [IK]	07
Main Feed AC [V]	220-240

Popis:

PROLINE family is an elegant and timeless linear system that allows to create captivating arrangements in any interior. It’s modern design and simple construction make it a great choice for general as well as decorative lighting in any interiors from residential to any public areas.

Key Advantages:

Various optics versions designed to suit any applications and requirements: OPAL, MICROPRISMATIC, FROST, BLACK, LOUVRE, DARK POINT, WHITE POINT ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Ke stažení:

Technický list:

Technické ilustrace:

Montážní pokyny:

Certifikáty:

Fotometrická data:

Všeobecni údaje

Key Advantages	Various optics versions designed to suit any applications and requirements: OPAL, MICROPRISMATIC, FROST, BLACK, LOUVRE, DARK POINT, WHITE POINT ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.
Product Shape	Rectangular
Mounting	Recessed

Elektrická data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	2 - 200
IEC Protection Class	I

Optika

Diffuser Material	Acrylic glass
Diffuser Material Design	Opal, MPR, Black, Louvre, DK Points, WH Points, Lens
TYPE OF CONTROL	ON/OFF, DALI
CONTROL SYSTEM	ON/OFF, DALI
LED LIFETIME Ta25 [h]	L80B50 100.000h

Technická data

Total Consumption [W]	2 - 200
Lumen Output [LM]	100 - 23600
Efficacy lm/W	up to 170
Diffuser Material	Acrylic glass
Body Material	Anodized, Alu
Beam Angle [°]	Depending on a diffuser application
Light Distribution DIR/IND	DIR, IND
LED Color Temperature CCT [K]	3000, 4000, 2700 - 6500
Color Rendering Index [CRI]	80, 90
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B50 100.000h
TYPE OF CONTROL	ON/OFF, DALI
Body Color	White 9016, Black 9005, Gray 9006
Ingress Protection [IP]	20
Mechanical Protection [IK]	07
Main Feed AC [V]	220-240

Kryt

Body Material	Anodized, Alu
Body Color	White 9016, Black 9005, Gray 9006
RAL	Any upon request
Finish	Matt, Gloss

Světelně-technická data

Light Source	PCB LED
Total Consumption [W]	2 - 200
Lumen Output [LM]	100 - 23600
Efficacy lm/W	up to 170
LED Color Temperature CCT [K]	3000, 4000, 2700 - 6500
Color Rendering Index [CRI]	80, 90
UGR	<19
MacAdam step	3
Beam Angle [°]	Depending on a diffuser application
Light Distribution DIR/IND	DIR, IND

Technická data

TA [°C]	0-25
Ingress Protection [IP]	20
Mechanical Protection [IK]	07
Corrosion Class	C3

Varianty

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	Type of Control	IP	Color
PROLINE 45 RECESSED OPAL 1100lm 9W 830 561 WH IP20 ON/OFF	MI112060949	561	45	50	9	1100	122	OPAL	90°	80	3000	ON/OFF	20	WHITE
PROLINE 45 RECESSED OPAL 1100lm 9W 830 561 WH IP20 DALI	MI117749626	561	45	50	9	1100	122	OPAL	90°	80	3000	DALI	20	WHITE
PROLINE 45 RECESSED OPAL 1150lm 9W 840 561 WH IP20 ON/OFF	MI115163272	561	45	50	9	1150	128	OPAL	90°	80	4000	ON/OFF	20	WHITE
PROLINE 45 RECESSED OPAL 1150lm 9W 840 561 WH IP20 DALI	MI116898752	561	45	50	9	1150	128	OPAL	90°	80	4000	DALI	20	WHITE
PROLINE 45 RECESSED OPAL 1000lm 9W 830 561 GR IP20 ON/OFF	MI114544183	561	45	50	9	1000	111	OPAL	90°	80	3000	ON/OFF	20	GREY
PROLINE 45 RECESSED OPAL 1000lm 9W 830 561 GR IP20 DALI	MI113504452	561	45	50	9	1000	111	OPAL	90°	80	3000	DALI	20	GREY
PROLINE 45 RECESSED OPAL 1050lm 9W 840 561 GR IP20 ON/OFF	MI114458786	561	45	50	9	1050	117	OPAL	90°	80	4000	ON/OFF	20	GREY
PROLINE 45 RECESSED OPAL 1050lm 9W 840 561 GR IP20 DALI	MI119907769	561	45	50	9	1050	117	OPAL	90°	80	4000	DALI	20	GREY
PROLINE 45 RECESSED OPAL 940lm 9W 830 561 BL IP20 ON/OFF	MI112527564	561	45	50	9	940	104	OPAL	90°	80	3000	ON/OFF	20	BLACK
PROLINE 45 RECESSED OPAL 940lm 9W 830 561 BL IP20 DALI	MI110150377	561	45	50	9	940	104	OPAL	90°	80	3000	DALI	20	BLACK
PROLINE 45 RECESSED OPAL 980lm 9W 840 561 BL IP20 ON/OFF	MI111842459	561	45	50	9	980	109	OPAL	90°	80	4000	ON/OFF	20	BLACK
PROLINE 45 RECESSED OPAL 980lm 9W 840 561 BL IP20 DALI	MI118861036	561	45	50	9	980	109	OPAL	90°	80	4000	DALI	20	BLACK
PROLINE 45 RECESSED OPAL 1700lm 14W 830 841 WH IP20 ON/OFF	MI115879351	841	45	50	14	1700	121	OPAL	90°	80	3000	ON/OFF	20	WHITE
PROLINE 45 RECESSED OPAL 1700lm 14W 830 841 WH IP20 DALI	MI112657143	841	45	50	14	1700	121	OPAL	90°	80	3000	DALI	20	WHITE
PROLINE 45 RECESSED OPAL 1800lm 14W 840 841 WH IP20 ON/OFF	MI111650164	841	45	50	14	1800	129	OPAL	90°	80	4000	ON/OFF	20	WHITE
PROLINE 45 RECESSED OPAL 1800lm 14W 840 841 WH IP20 DALI	MI118949615	841	45	50	14	1800	129	OPAL	90°	80	4000	DALI	20	WHITE
PROLINE 45 RECESSED OPAL 1550lm 14W 830 841 GR IP20 ON/OFF	MI116447002	841	45	50	14	1550	111	OPAL	90°	80	3000	ON/OFF	20	GREY
PROLINE 45 RECESSED OPAL 1550lm 14W 830 841 GR IP20 DALI	MI110902890	841	45	50	14	1550	111	OPAL	90°	80	3000	DALI	20	GREY
PROLINE 45 RECESSED OPAL 1650lm 14W 840 841 GR IP20 ON/OFF	MI114247973	841	45	50	14	1650	118	OPAL	90°	80	4000	ON/OFF	20	GREY
PROLINE 45 RECESSED OPAL 1650lm 14W 840 841 GR IP20 DALI	MI119762837	841	45	50	14	1650	118	OPAL	90°	80	4000	DALI	20	GREY
PROLINE 45 RECESSED OPAL 1450lm 14W 830 841 BL IP20 ON/OFF	MI112361203	841	45	50	14	1450	104	OPAL	90°	80	3000	ON/OFF	20	BLACK
PROLINE 45 RECESSED OPAL 1450lm 14W 830 841 BL IP20 DALI	MI117683556	841	45	50	14	1450	104	OPAL	90°	80	3000	DALI	20	BLACK
PROLINE 45 RECESSED OPAL 1550lm 14W 840 841 BL IP20 ON/OFF	MI111518693	841	45	50	14	1550	111	OPAL	90°	80	4000	ON/OFF	20	BLACK
PROLINE 45 RECESSED OPAL 1550lm 14W 840 841 BL IP20 DALI	MI116844999	841	45	50	14	1550	111	OPAL	90°	80	4000	DALI	20	BLACK
PROLINE 45 RECESSED OPAL 2200lm 18W 830 1121 WH IP20 ON/OFF	MI116583683	1121	45	50	18	2200	122	OPAL	90°	80	3000	ON/OFF	20	WHITE
