SLIDER B
SLIDER B

Elektrická data

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31
IEC Protection Class	2
Connector Type	3 PHASE UNIVERSAL

Optika

TYPE OF CONTROL	ON/OFF
LED LIFETIME Ta25 [h]	64000

Technická data

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31
Lumen Output [LM]	805, 920, 999, 1029, 1030, 1036, 1075, 1087, 1127, 1186, 1208, 1212, 1224, 1251, 1270, 1277, 1302, 1347, 1390, 1399, 1413, 1417, 1424, 1451, 1460, 1462, 1506, 1521, 1566, 1638, 1660, 1697, 1698, 1714, 1753, 1778, 1788, 1811, 1824, 1857, 1917, 1943, 1956, 1962, 1979, 1980, 1999, 2030, 2034, 2074, 2106, 2114, 2156, 2161, 2174, 2199, 2245, 2267, 2282, 2295, 2316, 2329, 2340, 2392, 2396, 2400, 2424, 2425, 2449, 2490, 2498, 2504, 2509, 2517, 2527, 2555, 2592, 2599, 2605, 2609, 2620, 2664, 2666, 2675, 2691, 2694, 2697, 2720, 2736, 2737, 2748, 2754, 2799, 2809, 2826, 2828, 2841, 2852, 2865, 2866, 2870, 2904, 2909, 2920, 2929, 2939, 2985, 3006, 3031, 3044, 3058, 3062, 3066, 3127, 3135, 3138, 3142, 3151, 3161, 3184, 3199, 3256, 3258, 3261, 3270, 3293, 3319, 3321, 3387, 3394, 3399, 3408, 3413, 3429, 3479, 3506, 3513, 3519, 3540, 3576, 3634, 3647, 3675, 3681, 3687, 3762, 3879, 3919, 3940, 3946, 4007, 4087, 4169, 4250, 4460, 4467
Efficacy lm/W	72, 78, 79, 81, 82, 88, 90, 91, 92, 93, 94, 96, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 116, 117, 118, 119, 120, 121, 122, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134, 135, 136, 137, 139, 140, 141, 142, 143, 144, 145, 146, 147, 148, 149, 150, 151
Beam Angle [°]	15°, 23°, 38°, 45°, 60°
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2000, 2500, 2700, 3000, 3500, 4000, 4200, 5000, 5700
Color Rendering Index [CRI]	80, 90
LED LIFETIME Ta25 [h]	64000
TYPE OF CONTROL	ON/OFF
Body Color	GREY, BLACK, WHITE
Ingress Protection [IP]	20
Diameter ø [mm]	107
Weight [KG]	0.80 kg

Popis:

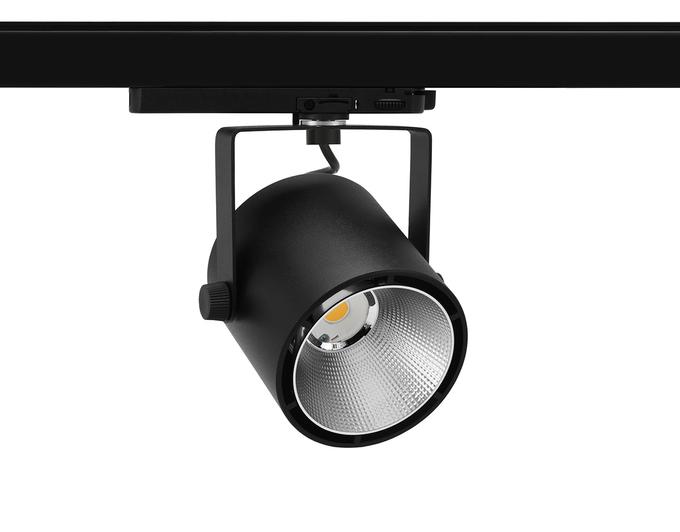

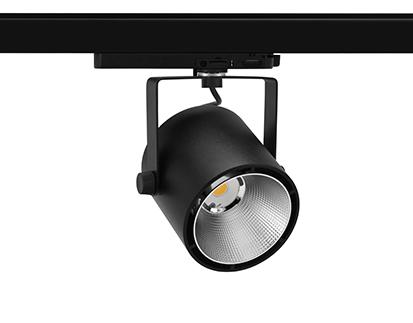

Track mounted LED spotlight. Aluminium housing. Ceiling base installation possible. Available in white, black and grey. Any RAL palette colour available on enquiry. Reflector beams available: 15°, 23°, 38°, 45° and 60°. Maximum power is 31W.

RAL colours on inquiry, honeycomb louver on inquiry , Casambi on inquiry, DALI on inquiry, Phase-cut dimming on inquiry.

Ke stažení:

Technický list:

Montážní pokyny:

Certifikáty:

Fotometrická data:

Elektrická data

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31
IEC Protection Class	2
Connector Type	3 PHASE UNIVERSAL

Optika

TYPE OF CONTROL	ON/OFF
LED LIFETIME Ta25 [h]	64000

Technická data

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31
Lumen Output [LM]	805, 920, 999, 1029, 1030, 1036, 1075, 1087, 1127, 1186, 1208, 1212, 1224, 1251, 1270, 1277, 1302, 1347, 1390, 1399, 1413, 1417, 1424, 1451, 1460, 1462, 1506, 1521, 1566, 1638, 1660, 1697, 1698, 1714, 1753, 1778, 1788, 1811, 1824, 1857, 1917, 1943, 1956, 1962, 1979, 1980, 1999, 2030, 2034, 2074, 2106, 2114, 2156, 2161, 2174, 2199, 2245, 2267, 2282, 2295, 2316, 2329, 2340, 2392, 2396, 2400, 2424, 2425, 2449, 2490, 2498, 2504, 2509, 2517, 2527, 2555, 2592, 2599, 2605, 2609, 2620, 2664, 2666, 2675, 2691, 2694, 2697, 2720, 2736, 2737, 2748, 2754, 2799, 2809, 2826, 2828, 2841, 2852, 2865, 2866, 2870, 2904, 2909, 2920, 2929, 2939, 2985, 3006, 3031, 3044, 3058, 3062, 3066, 3127, 3135, 3138, 3142, 3151, 3161, 3184, 3199, 3256, 3258, 3261, 3270, 3293, 3319, 3321, 3387, 3394, 3399, 3408, 3413, 3429, 3479, 3506, 3513, 3519, 3540, 3576, 3634, 3647, 3675, 3681, 3687, 3762, 3879, 3919, 3940, 3946, 4007, 4087, 4169, 4250, 4460, 4467
Efficacy lm/W	72, 78, 79, 81, 82, 88, 90, 91, 92, 93, 94, 96, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 116, 117, 118, 119, 120, 121, 122, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134, 135, 136, 137, 139, 140, 141, 142, 143, 144, 145, 146, 147, 148, 149, 150, 151
Beam Angle [°]	15°, 23°, 38°, 45°, 60°
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2000, 2500, 2700, 3000, 3500, 4000, 4200, 5000, 5700
Color Rendering Index [CRI]	80, 90
LED LIFETIME Ta25 [h]	64000
TYPE OF CONTROL	ON/OFF
Body Color	GREY, BLACK, WHITE
Ingress Protection [IP]	20
Diameter ø [mm]	107
Weight [KG]	0.80 kg

Kryt

Body Color	GREY, BLACK, WHITE

Světelně-technická data

Total Consumption [W]	10, 11, 13, 14, 19, 20, 21, 23, 25, 27, 31
Lumen Output [LM]	805, 920, 999, 1029, 1030, 1036, 1075, 1087, 1127, 1186, 1208, 1212, 1224, 1251, 1270, 1277, 1302, 1347, 1390, 1399, 1413, 1417, 1424, 1451, 1460, 1462, 1506, 1521, 1566, 1638, 1660, 1697, 1698, 1714, 1753, 1778, 1788, 1811, 1824, 1857, 1917, 1943, 1956, 1962, 1979, 1980, 1999, 2030, 2034, 2074, 2106, 2114, 2156, 2161, 2174, 2199, 2245, 2267, 2282, 2295, 2316, 2329, 2340, 2392, 2396, 2400, 2424, 2425, 2449, 2490, 2498, 2504, 2509, 2517, 2527, 2555, 2592, 2599, 2605, 2609, 2620, 2664, 2666, 2675, 2691, 2694, 2697, 2720, 2736, 2737, 2748, 2754, 2799, 2809, 2826, 2828, 2841, 2852, 2865, 2866, 2870, 2904, 2909, 2920, 2929, 2939, 2985, 3006, 3031, 3044, 3058, 3062, 3066, 3127, 3135, 3138, 3142, 3151, 3161, 3184, 3199, 3256, 3258, 3261, 3270, 3293, 3319, 3321, 3387, 3394, 3399, 3408, 3413, 3429, 3479, 3506, 3513, 3519, 3540, 3576, 3634, 3647, 3675, 3681, 3687, 3762, 3879, 3919, 3940, 3946, 4007, 4087, 4169, 4250, 4460, 4467
Efficacy lm/W	72, 78, 79, 81, 82, 88, 90, 91, 92, 93, 94, 96, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110, 111, 112, 113, 114, 116, 117, 118, 119, 120, 121, 122, 124, 125, 126, 127, 128, 129, 130, 131, 132, 133, 134, 135, 136, 137, 139, 140, 141, 142, 143, 144, 145, 146, 147, 148, 149, 150, 151
LED Color Temperature CCT [K]	2000, 2500, 2700, 3000, 3500, 4000, 4200, 5000, 5700
Color Rendering Index [CRI]	80, 90
Beam Angle [°]	15°, 23°, 38°, 45°, 60°
Light Distribution DIR/IND	DIR

Technická data

TA [°C]	0-30
Ingress Protection [IP]	20

Rozměry

Diameter ø [mm]	107
Weight [KG]	0.80 kg

Varianty

Item	Code	Lenght	Width	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Beam Angle	CRI	Color K	Type of Control	IP	Color
SLIDER B 1212lm 10W 827 107 15° GR IP20 ON/OFF	MI102909778	168	140	178	107	10	1212	121	15°	80	2700	ON/OFF	20	GREY
SLIDER B 1697lm 13W 827 107 15° GR IP20 ON/OFF	MI108705801	168	140	178	107	13	1697	131	15°	80	2700	ON/OFF	20	GREY
SLIDER B 2424lm 19W 827 107 15° GR IP20 ON/OFF	MI105261978	168	140	178	107	19	2424	128	15°	80	2700	ON/OFF	20	GREY
SLIDER B 2666lm 21W 827 107 15° GR IP20 ON/OFF	MI102157058	168	140	178	107	21	2666	127	15°	80	2700	ON/OFF	20	GREY
SLIDER B 2909lm 23W 827 107 15° GR IP20 ON/OFF	MI103413700	168	140	178	107	23	2909	126	15°	80	2700	ON/OFF	20	GREY
SLIDER B 3151lm 25W 827 107 15° GR IP20 ON/OFF	MI102620233	168	140	178	107	25	3151	126	15°	80	2700	ON/OFF	20	GREY
SLIDER B 3394lm 27W 827 107 15° GR IP20 ON/OFF	MI100755716	168	140	178	107	27	3394	126	15°	80	2700	ON/OFF	20	GREY
SLIDER B 3879lm 31W 827 107 15° GR IP20 ON/OFF	MI108821817	168	140	178	107	31	3879	125	15°	80	2700	ON/OFF	20	GREY
SLIDER B 999lm 10W 927 107 15° GR IP20 ON/OFF	MI109984910	168	140	178	107	10	999	100	15°	90	2700	ON/OFF	20	GREY
SLIDER B 1399lm 14W 827 107 15° GR IP20 ON/OFF	MI106951809	168	140	178	107	14	1399	100	15°	80	2700	ON/OFF	20	GREY
SLIDER B 1999lm 19W 827 107 15° GR IP20 ON/OFF	MI100622768	168	140	178	107	19	1999	105	15°	80	2700	ON/OFF	20	GREY
SLIDER B 2199lm 21W 827 107 15° GR IP20 ON/OFF	MI106908202	168	140	178	107	21	2199	105	15°	80	2700	ON/OFF	20	GREY
SLIDER B 2400lm 23W 827 107 15° GR IP20 ON/OFF	MI100709704	168	140	178	107	23	2400	104	15°	80	2700	ON/OFF	20	GREY
SLIDER B 2599lm 25W 827 107 15° GR IP20 ON/OFF	MI103321308	168	140	178	107	25	2599	104	15°	80	2700	ON/OFF	20	GREY
SLIDER B 2799lm 27W 827 107 15° GR IP20 ON/OFF	MI108587511	168	140	178	107	27	2799	104	15°	80	2700	ON/OFF	20	GREY
SLIDER B 3199lm 31W 827 107 15° GR IP20 ON/OFF	MI103702909	168	140	178	107	31	3199	103	15°	80	2700	ON/OFF	20	GREY
SLIDER B 1224lm 10W 830 107 15° GR IP20 ON/OFF	MI105192364	168	140	178	107	10	1224	122	15°	80	3000	ON/OFF	20	GREY
SLIDER B 1714lm 14W 830 107 15° GR IP20 ON/OFF	MI108957937	168	140	178	107	14	1714	122	15°	80	3000	ON/OFF	20	GREY
SLIDER B 2449lm 19W 830 107 15° GR IP20 ON/OFF	MI107338627	168	140	178	107	19	2449	129	15°	80	3000	ON/OFF	20	GREY
SLIDER B 2694lm 21W 830 107 15° GR IP20 ON/OFF	MI103870575	168	140	178	107	21	2694	128	15°	80	3000	ON/OFF	20	GREY
SLIDER B 2939lm 23W 830 107 15° GR IP20 ON/OFF	MI105893385	168	140	178	107	23	2939	128	15°	80	3000	ON/OFF	20	GREY
SLIDER B 3184lm 25W 830 107 15° GR IP20 ON/OFF	MI103725352	168	140	178	107	25	3184	127	15°	80	3000	ON/OFF	20	GREY
SLIDER B 3429lm 27W 830 107 15° GR IP20 ON/OFF	MI104678382	168	140	178	107	27	3429	127	15°	80	3000	ON/OFF	20	GREY
SLIDER B 3919lm 31W 830 107 15° GR IP20 ON/OFF	MI105982791	168	140	178	107	31	3919	126	15°	80	3000	ON/OFF	20	GREY
SLIDER B 1036lm 10W 930 107 15° GR IP20 ON/OFF	MI102466735	168	140	178	107	10	1036	104	15°	90	3000	ON/OFF	20	GREY
