TRIS R100 IP65 TRANSPARENT 820lm 10W 940 WH IP65 ON/OFF
Item No. MI107794306
TRIS R100 IP65

TRIS R100 IP65 TRANSPARENT 820lm 10W 940 WH IP65 ON/OFF

MI107794306

Všeobecni údaje
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeTube
TypeSpotlight downlight
MountingS
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]10
IEC Protection ClassI
Optika
DiffuserTRANSPARENT
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L70B50 50.000h
Technická data
Total Consumption [W]10
Lumen Output [LM]820
Efficacy [lm/W]82
DiffuserTRANSPARENT
Beam Angle [°]27°
Light distributionDIR
CCT [K]4000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L70B50 50.000h
Type of ControlON/OFF
Housing colorWHITE
IP65
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Popis:

A small, configurable spotlight – surface downlight for interior lighting. A wide range of technical parameter and luminaire appearance variants for versatile applications. COB technology and a high-performance, metalized, facetted plastic reflector guarantee the optimum construction of the optical system and a high efficiency. The tempered transparent glass protects the luminaire against dust, dirt. A ring or frame made of die-cast aluminium or steel sheet, painted white or black as a standard.

Key Advantages:

Various optic beam angle versions designed to suit any applications and requirements.

Ke stažení:
Technický list:
1
Montážní pokyny:
1
Certifikáty:
1

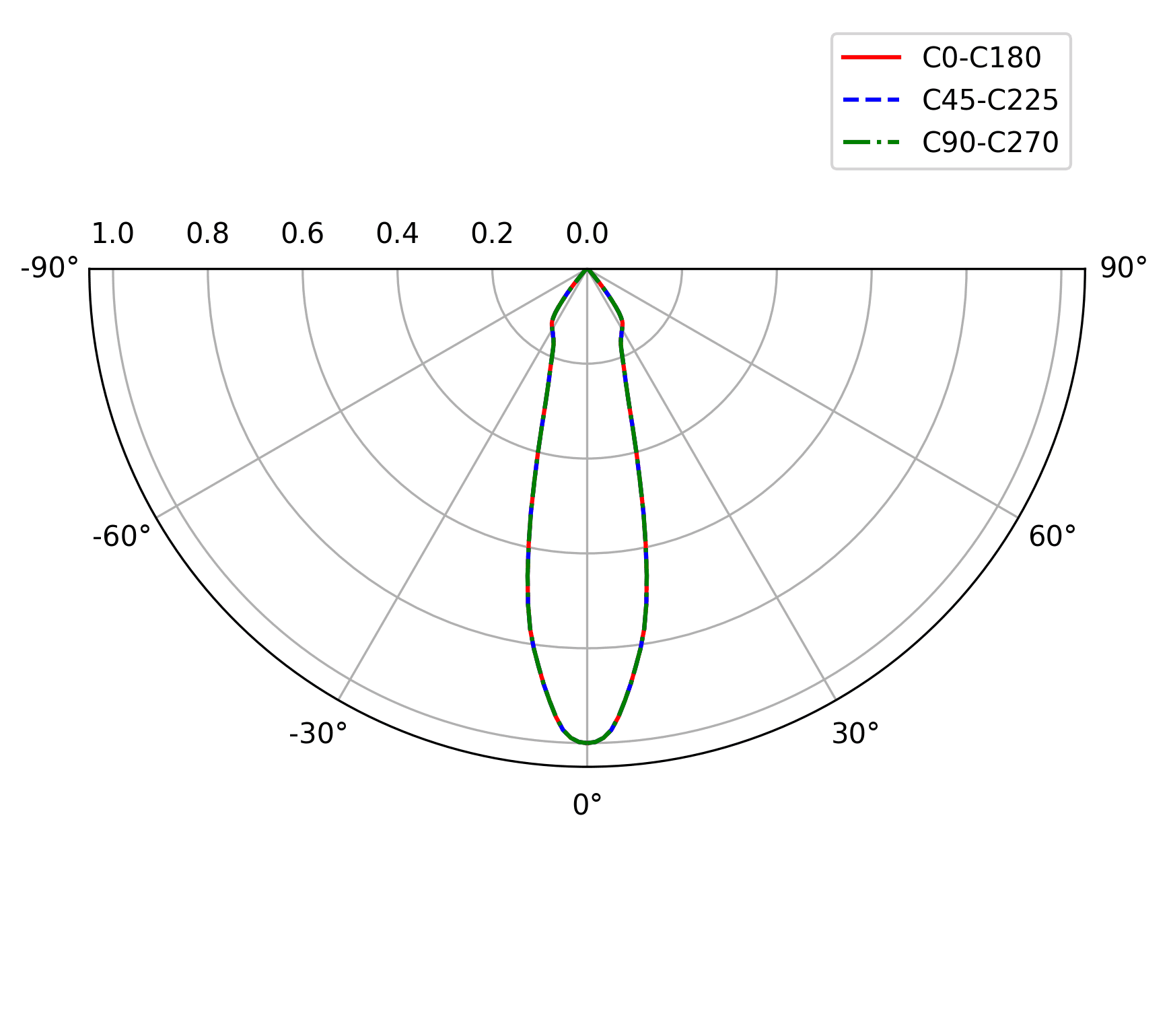

Fotometrická data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/65.svg
/soft4net/img/project/icons/J - MOUNTING/S.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
TRIS R100 IP65
Všeobecni údaje
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeTube
TypeSpotlight downlight
MountingS
Elektrická data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]10
IEC Protection ClassI
Optika
DiffuserTRANSPARENT
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L70B50 50.000h
Technická data
Total Consumption [W]10
Lumen Output [LM]820
Efficacy [lm/W]82
DiffuserTRANSPARENT
Beam Angle [°]27°
Light distributionDIR
CCT [K]4000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L70B50 50.000h
Type of ControlON/OFF
Housing colorWHITE
IP65
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Kryt
Housing colorWHITE
FinishMatt, Gloss
Světelně-technická data
Light SourceLED
Total Consumption [W]10
Lumen Output [LM]820
Efficacy [lm/W]82
CCT [K]4000
CRI90
MacAdam step3
Beam Angle [°]27°
Light distributionDIR
Technická data
IP65
Mechanical Protection [IK]01
Corrosion ClassC3
Generating PDF...

Technické ilustrace

TRIS R100 IP65
