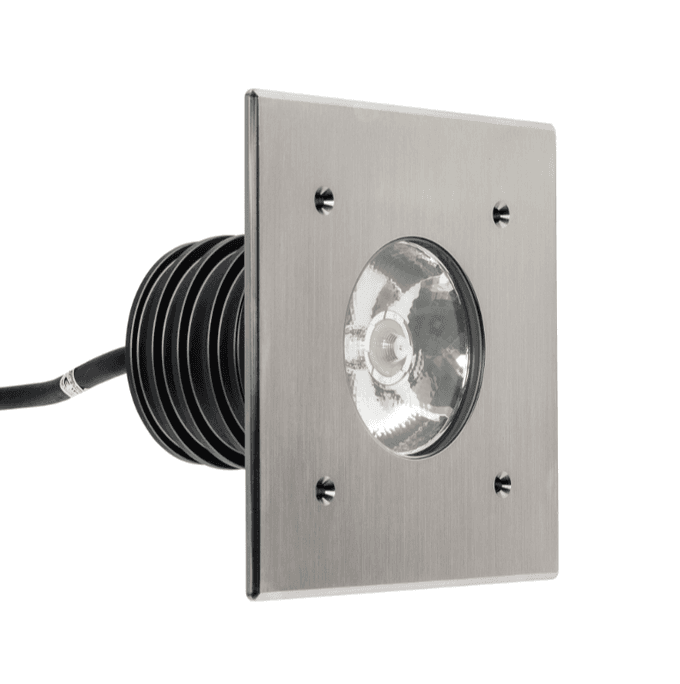

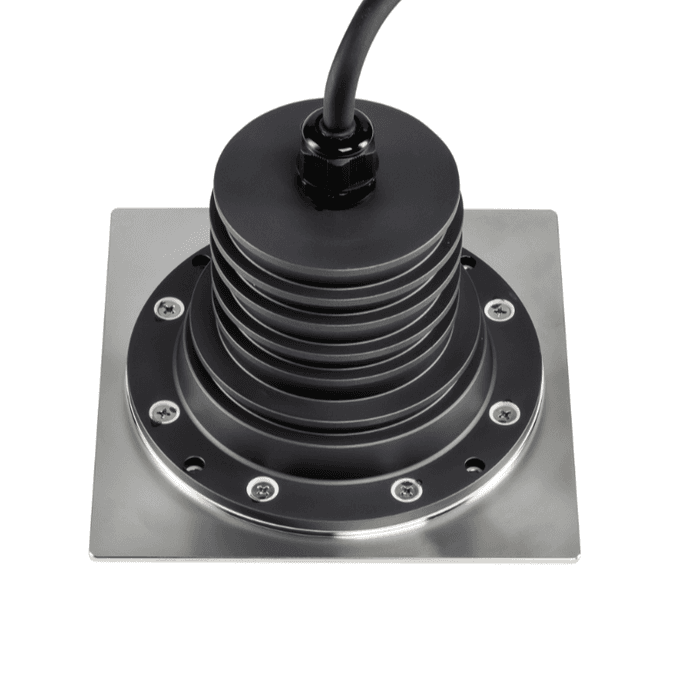

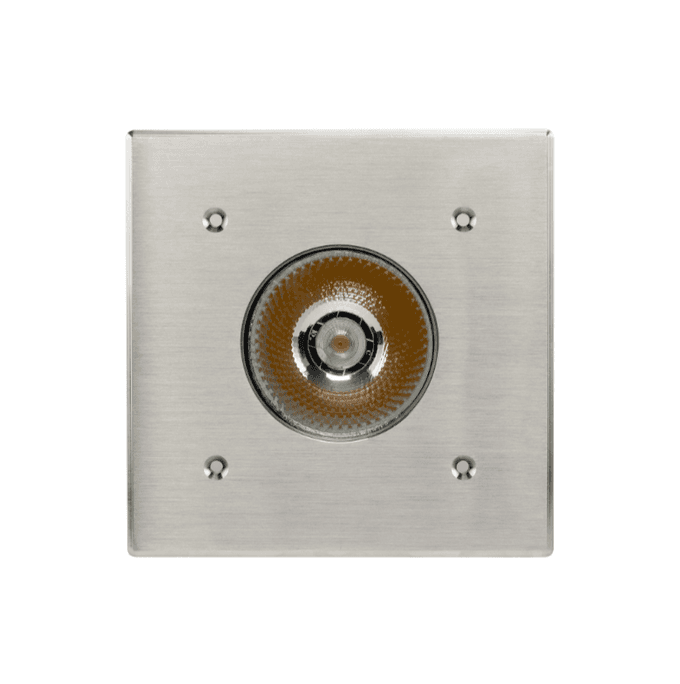

URO MEDIUM SQ 220-240VAC
URO MEDIUM SQ 220-240VAC

Všeobecni údaje

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Square
Type	Illumination
Mounting	In-ground

Elektrická data

Main Feed AC [V]	220-240V AC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	20
IEC Protection Class	I
Connector Type	0.5m
Wiring	H07RN-F 3G1

Optika

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF
LED LIFETIME Ta25 [h]	≥ 60 000h

Technická data

Total Consumption [W]	20
Lumen Output [LM]	1450 – 1760
Efficacy lm/W	73 – 88
Diffuser Material	Tempered glass
Body Material	SS316L, ALU
Beam Angle [°]	10, 20, 30, 45
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	220-240V AC

Popis:

URO MEDIUM series with a maximum output of 20W was designed for the most demanding customers, who expect a beautiful finish not only on the front. The body is made of SS316L stainless steel or aluminum, and the body itself can be made with IP68 technology and a high purity glass with a modern CREE LED®. MILIA URO MEDIUM luminaire can be used to illuminate a wide range of places and objects, such as: landscape, parks, gardens, terraces, squares, plants.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Ke stažení:

Technický list:

Technické ilustrace:

Montážní pokyny:

Certifikáty:

Fotometrická data:

Všeobecni údaje

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Square
Type	Illumination
Mounting	In-ground

Elektrická data

Main Feed AC [V]	220-240V AC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	20
IEC Protection Class	I
Connector Type	0.5m
Wiring	H07RN-F 3G1

Optika

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF
LED LIFETIME Ta25 [h]	≥ 60 000h

Technická data

Total Consumption [W]	20
Lumen Output [LM]	1450 – 1760
Efficacy lm/W	73 – 88
Diffuser Material	Tempered glass
Body Material	SS316L, ALU
Beam Angle [°]	10, 20, 30, 45
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	220-240V AC

Kryt

Body Material	SS316L, ALU
Body Color	SST

Světelně-technická data

Light Source	LED
Total Consumption [W]	20
Lumen Output [LM]	1450 – 1760
Efficacy lm/W	73 – 88
LED Color Temperature CCT [K]	2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	10, 20, 30, 45
Light Distribution DIR/IND	DIR

Technická data

TA [°C]	-20 to +55
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

Varianty

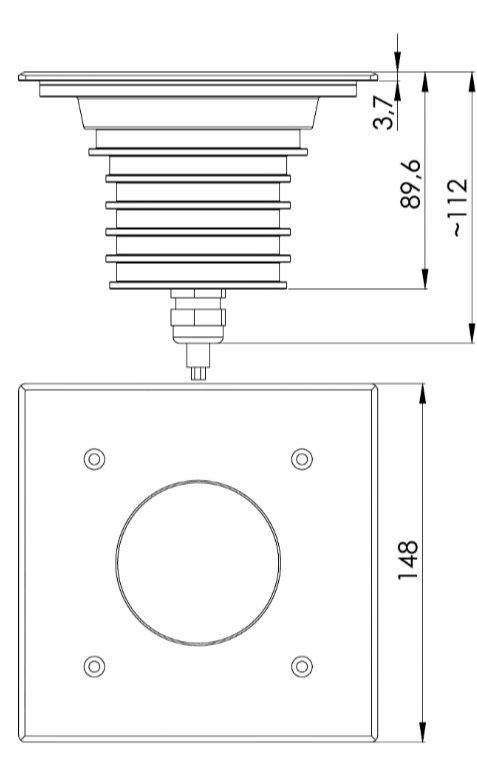

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	IP	Color
URO GROUND MEDIUM SQ 220-240VAC GLASS 1450lm 20W 827 148 SS IP67	MI43069268	148	148	112	20	1450	73	GLASS	10	80	2700	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1450lm 20W 827 148 SS IP67	MI44552968	148	148	112	20	1450	73	GLASS	20	80	2700	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1450lm 20W 827 148 SS IP67	MI44307588	148	148	112	20	1450	73	GLASS	30	80	2700	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1450lm 20W 827 148 SS IP67	MI47919456	148	148	112	20	1450	73	GLASS	10	80	2700	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1450lm 20W 827 148 SS IP67	MI45906397	148	148	112	20	1450	73	GLASS	20	80	2700	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1450lm 20W 827 148 SS IP67	MI48594619	148	148	112	20	1450	73	GLASS	30	80	2700	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1500lm 20W 830 148 SS IP67	MI42590152	148	148	112	20	1500	75	GLASS	10	80	3000	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1500lm 20W 830 148 SS IP67	MI44468229	148	148	112	20	1500	75	GLASS	20	80	3000	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1500lm 20W 830 148 SS IP67	MI44615937	148	148	112	20	1500	75	GLASS	30	80	3000	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1500lm 20W 830 148 SS IP67	MI41933491	148	148	112	20	1500	75	GLASS	10	80	3000	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1500lm 20W 830 148 SS IP67	MI498500	148	148	112	20	1500	75	GLASS	20	80	3000	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1500lm 20W 830 148 SS IP67	MI42942202	148	148	112	20	1500	75	GLASS	30	80	3000	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1660lm 20W 840 148 SS IP67	MI45485775	148	148	112	20	1660	83	GLASS	20	80	4000	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1660lm 20W 840 148 SS IP67	MI48387246	148	148	112	20	1660	83	GLASS	30	80	4000	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1660lm 20W 840 148 SS IP67	MI46464162	148	148	112	20	1660	83	GLASS	20	80	4000	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1660lm 20W 840 148 SS IP67	MI42661390	148	148	112	20	1660	83	GLASS	30	80	4000	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1760lm 20W 850 148 SS IP67	MI43487046	148	148	112	20	1760	88	GLASS	10	80	5000	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1760lm 20W 850 148 SS IP67	MI47684562	148	148	112	20	1760	88	GLASS	20	80	5000	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1760lm 20W 850 148 SS IP67	MI4520520	148	148	112	20	1760	88	GLASS	30	80	5000	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1760lm 20W 850 148 SS IP67	MI42784473	148	148	112	20	1760	88	GLASS	10	80	5000	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1760lm 20W 850 148 SS IP67	MI45051842	148	148	112	20	1760	88	GLASS	20	80	5000	67	SST
URO GROUND MEDIUM SQ 220-240VAC GLASS 1760lm 20W 850 148 SS IP67	MI4840497	148	148	112	20	1760	88	GLASS	30	80	5000	67	SST
