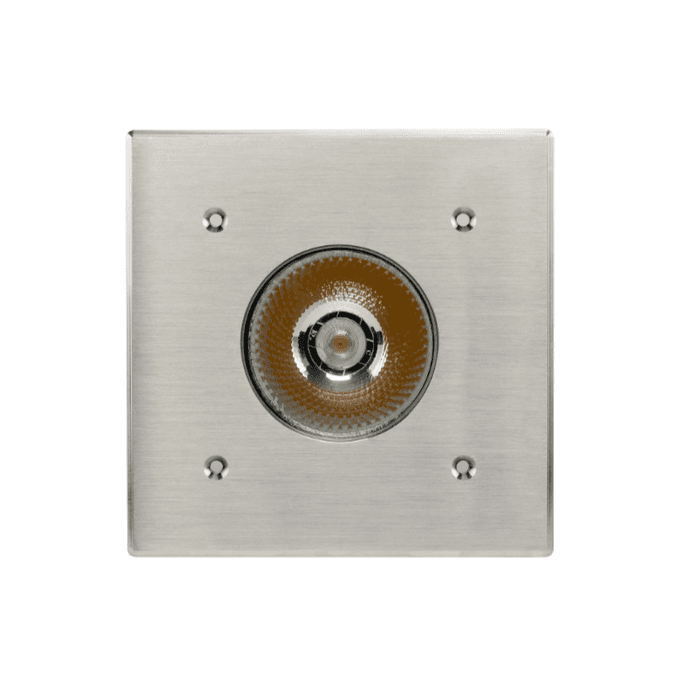

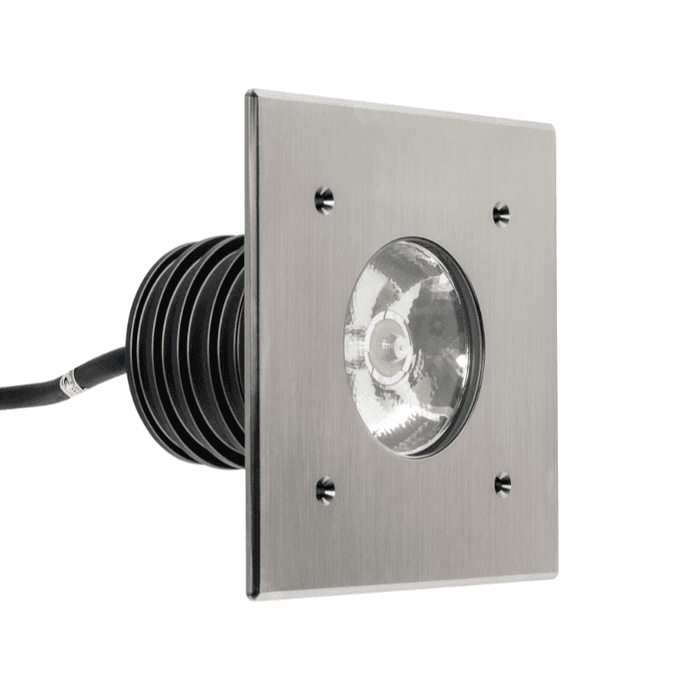

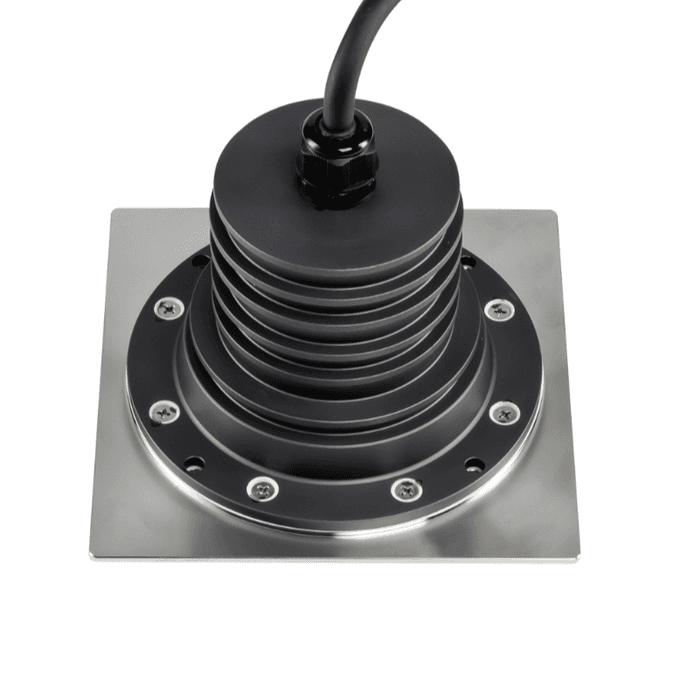

URO MEDIUM SQ RGBW 12/24VDC
URO MEDIUM SQ RGBW 12/24VDC

Všeobecni údaje

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Square
Type	Illumination
Mounting	In-ground

Elektrická data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	24
IEC Protection Class	III
Connector Type	0.5m
Wiring	JZ-600 5G1

Optika

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 65 000h

Technická data

Total Consumption [W]	24
Lumen Output [LM]	W600, R265, G370, B175
Efficacy lm/W	N/A
Diffuser Material	Tempered glass
Body Material	SS316L, ALU
Beam Angle [°]	15, 30
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000/4000/5000/RGBW
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 65 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC

Popis:

URO MEDIUM RGBW series has been designed using modern simulation methods to achieve the highest quality product. These luminaires are made of the highest quality materials such as marine steel, high purity glass for optical applications and state-of-the-art CREE LEDs. MILLIA URO MEDIUM RGBW can be used to illuminate a wide range of places and facilities, such as parks, gardens, terraces, squares, and premises.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Ke stažení:

Technický list:

Technické ilustrace:

Montážní pokyny:

Certifikáty:

Fotometrická data:

Všeobecni údaje

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Square
Type	Illumination
Mounting	In-ground

Elektrická data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	24
IEC Protection Class	III
Connector Type	0.5m
Wiring	JZ-600 5G1

Optika

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 65 000h

Technická data

Total Consumption [W]	24
Lumen Output [LM]	W600, R265, G370, B175
Efficacy lm/W	N/A
Diffuser Material	Tempered glass
Body Material	SS316L, ALU
Beam Angle [°]	15, 30
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000/4000/5000/RGBW
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 65 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC

Kryt

Body Material	SS316L, ALU
Body Color	SST

Světelně-technická data

Light Source	LED
Total Consumption [W]	24
Lumen Output [LM]	W600, R265, G370, B175
Efficacy lm/W	N/A
LED Color Temperature CCT [K]	3000/4000/5000/RGBW
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	15, 30
Light Distribution DIR/IND	DIR

Technická data

TA [°C]	-20 to +55
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

Varianty

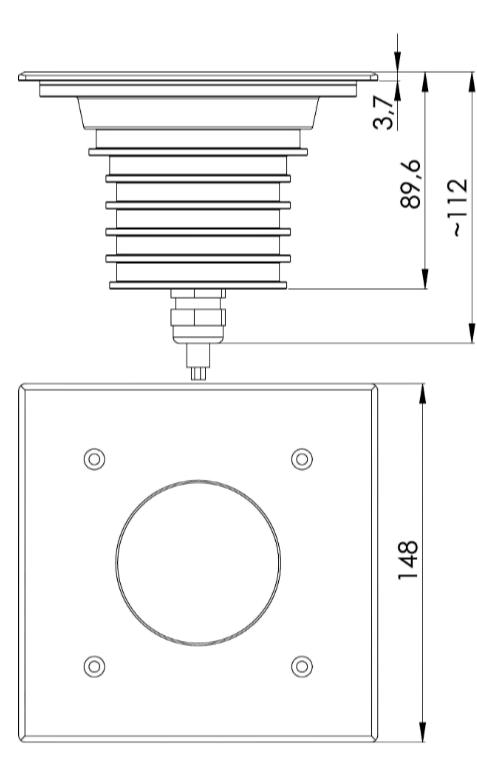

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Diffuser	Beam Angle	CRI	Color K	IP	Color
URO GROUND MEDIUM SQ RGBW 12/24VDC GLASS RGBWlm 24W 830 148 SS IP67	MI7258389	148	148	112	24	RGBW	GLASS	15	80	3000	67	SST
URO GROUND MEDIUM SQ RGBW 12/24VDC GLASS RGBWlm 24W 830 148 SS IP67	MI6985353	148	148	112	24	RGBW	GLASS	30	80	3000	67	SST
URO GROUND MEDIUM SQ RGBW 12/24VDC GLASS RGBWlm 24W 830 148 SS IP67	MI7415611	148	148	112	24	RGBW	GLASS	15	80	3000	67	SST
URO GROUND MEDIUM SQ RGBW 12/24VDC GLASS RGBWlm 24W 830 148 SS IP67	MI6899406	148	148	112	24	RGBW	GLASS	30	80	3000	67	SST
URO GROUND MEDIUM SQ RGBW 12/24VDC GLASS RGBWlm 24W 840 148 SS IP67	MI1943931	148	148	112	24	RGBW	GLASS	15	80	4000	67	SST
URO GROUND MEDIUM SQ RGBW 12/24VDC GLASS RGBWlm 24W 840 148 SS IP67	MI9328762	148	148	112	24	RGBW	GLASS	30	80	4000	67	SST
URO GROUND MEDIUM SQ RGBW 12/24VDC GLASS RGBWlm 24W 840 148 SS IP67	MI416147	148	148	112	24	RGBW	GLASS	15	80	4000	67	SST
URO GROUND MEDIUM SQ RGBW 12/24VDC GLASS RGBWlm 24W 840 148 SS IP67	MI450770	148	148	112	24	RGBW	GLASS	30	80	4000	67	SST
URO GROUND MEDIUM SQ RGBW 12/24VDC GLASS RGBWlm 24W 850 148 SS IP67	MI1869466	148	148	112	24	RGBW	GLASS	15	80	5000	67	SST
URO GROUND MEDIUM SQ RGBW 12/24VDC GLASS RGBWlm 24W 850 148 SS IP67	MI5662572	148	148	112	24	RGBW	GLASS	30	80	5000	67	SST
URO GROUND MEDIUM SQ RGBW 12/24VDC GLASS RGBWlm 24W 850 148 SS IP67	MI4236803	148	148	112	24	RGBW	GLASS	15	80	5000	67	SST
URO GROUND MEDIUM SQ RGBW 12/24VDC GLASS RGBWlm 24W 850 148 SS IP67	MI9909359	148	148	112	24	RGBW	GLASS	30	80	5000	67	SST
