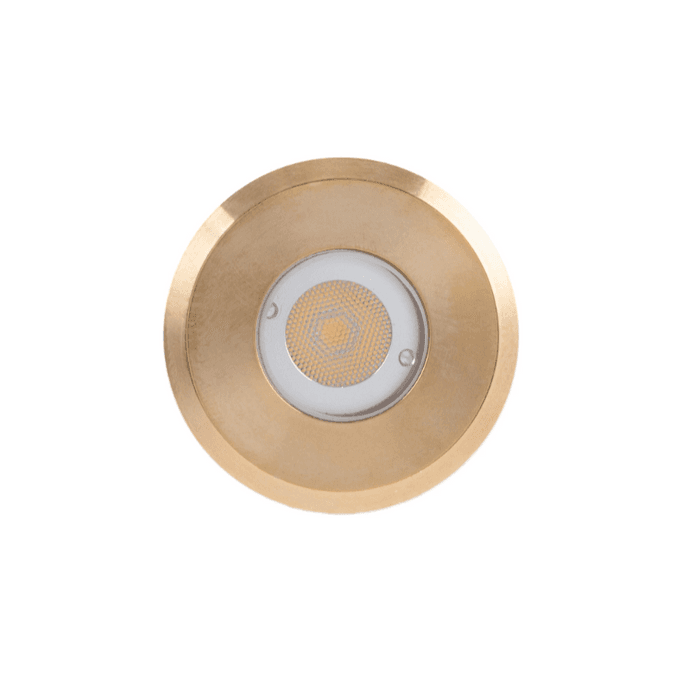

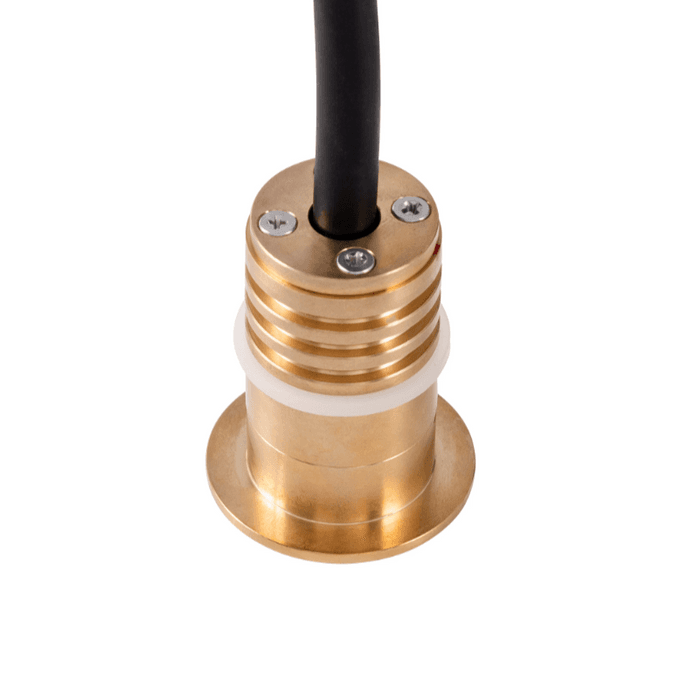

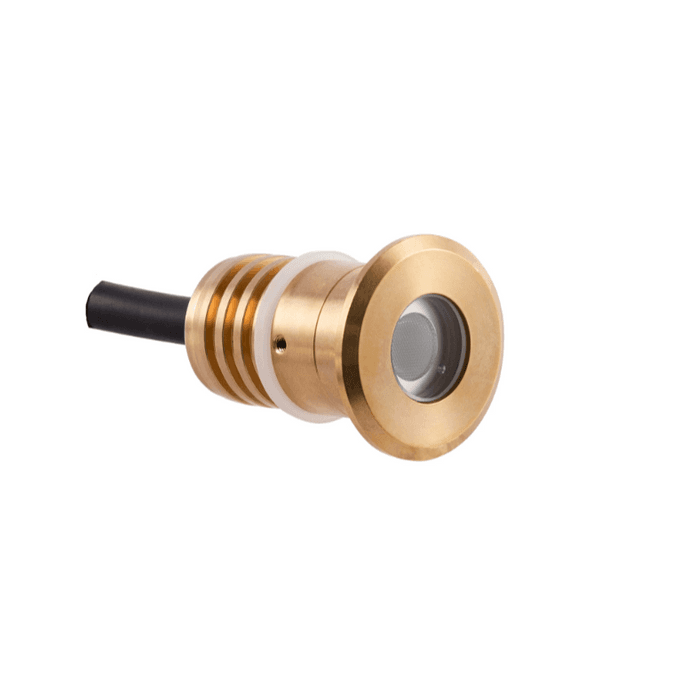

URO MICRO 40 2W BRASS RD 12/24VDC
URO MICRO 40 2W BRASS RD 12/24VDC

Všeobecni údaje

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	In-ground

Elektrická data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	2
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 2X1.5

Optika

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technická data

Total Consumption [W]	2
Lumen Output [LM]	140 – 205
Efficacy lm/W	70 – 103
Diffuser Material	Tempered glass
Body Material	Brass
Beam Angle [°]	17, 31, 39
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2200, 2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	Brass
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	40

Popis:

URO GROUND MICRO BRASS RD max power 2W was designed for the most demanding customers who expect a beautiful finish not only on the front.
Crafted from Brass made with IP67 technology.
URO GROUND MICRO BRASS RD luminaire can be used to illuminate many places and objects, such as parks, gardens, terraces, squares, premises, swimming pools.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Ke stažení:

Technický list:

Technické ilustrace:

Montážní pokyny:

Certifikáty:

Fotometrická data:

Všeobecni údaje

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	In-ground

Elektrická data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	2
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 2X1.5

Optika

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technická data

Total Consumption [W]	2
Lumen Output [LM]	140 – 205
Efficacy lm/W	70 – 103
Diffuser Material	Tempered glass
Body Material	Brass
Beam Angle [°]	17, 31, 39
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2200, 2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	Brass
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	40

Kryt

Body Material	Brass
Body Color	Brass

Světelně-technická data

Light Source	LED
Total Consumption [W]	2
Lumen Output [LM]	140 – 205
Efficacy lm/W	70 – 103
LED Color Temperature CCT [K]	2200, 2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	17, 31, 39
Light Distribution DIR/IND	DIR

Technická data

TA [°C]	-20 to +55
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

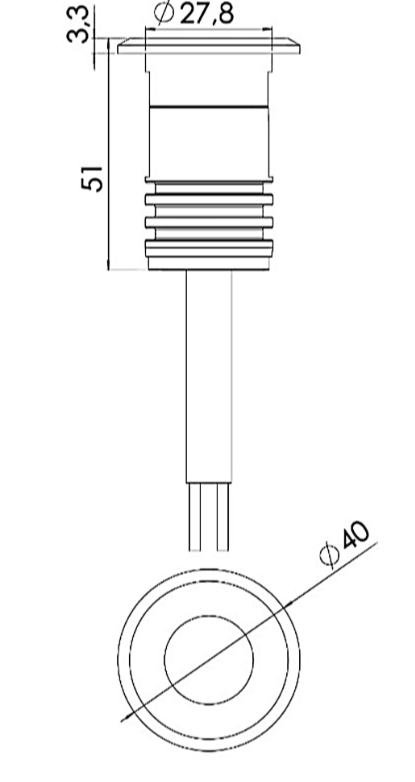

Rozměry

Diameter ø [mm]	40

Varianty

Item	Code	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	IP	Color
URO GROUND MICRO BRASS RD 12/24VDC GLASS 140lm 2W 822 40 SS IP67	MI44696061	51	40	2	140	70	GLASS	17	80	2200	67	BRASS
URO GROUND MICRO BRASS RD 12/24VDC GLASS 140lm 2W 822 40 SS IP67	MI49809142	51	40	2	140	70	GLASS	31	80	2200	67	BRASS
URO GROUND MICRO BRASS RD 12/24VDC GLASS 140lm 2W 822 40 SS IP67	MI45039435	51	40	2	140	70	GLASS	39	80	2200	67	BRASS
URO GROUND MICRO BRASS RD 12/24VDC GLASS 170lm 2W 827 40 SS IP67	MI42558886	51	40	2	170	85	GLASS	17	80	2700	67	BRASS
URO GROUND MICRO BRASS RD 12/24VDC GLASS 170lm 2W 827 40 SS IP67	MI49902840	51	40	2	170	85	GLASS	31	80	2700	67	BRASS
URO GROUND MICRO BRASS RD 12/24VDC GLASS 170lm 2W 827 40 SS IP67	MI46999590	51	40	2	170	85	GLASS	39	80	2700	67	BRASS
URO GROUND MICRO BRASS RD 12/24VDC GLASS 180lm 2W 830 40 SS IP67	MI43685122	51	40	2	180	95	GLASS	17	80	3000	67	BRASS
URO GROUND MICRO BRASS RD 12/24VDC GLASS 180lm 2W 830 40 SS IP67	MI43038069	51	40	2	180	95	GLASS	31	80	3000	67	BRASS
URO GROUND MICRO BRASS RD 12/24VDC GLASS 180lm 2W 830 40 SS IP67	MI48464318	51	40	2	180	95	GLASS	39	80	3000	67	BRASS
URO GROUND MICRO BRASS RD 12/24VDC GLASS 195lm 2W 840 40 SS IP67	MI49282865	51	40	2	195	98	GLASS	17	80	4000	67	BRASS
URO GROUND MICRO BRASS RD 12/24VDC GLASS 195lm 2W 840 40 SS IP67	MI44146552	51	40	2	195	98	GLASS	31	80	4000	67	BRASS
URO GROUND MICRO BRASS RD 12/24VDC GLASS 195lm 2W 840 40 SS IP67	MI41234544	51	40	2	195	98	GLASS	39	80	4000	67	BRASS
URO GROUND MICRO BRASS RD 12/24VDC GLASS 205lm 2W 850 40 SS IP67	MI44898643	51	40	2	205	103	GLASS	17	80	5000	67	BRASS
URO GROUND MICRO BRASS RD 12/24VDC GLASS 205lm 2W 850 40 SS IP67	MI46107491	51	40	2	205	103	GLASS	31	80	5000	67	BRASS
URO GROUND MICRO BRASS RD 12/24VDC GLASS 205lm 2W 850 40 SS IP67	MI49276283	51	40	2	205	103	GLASS	39	80	5000	67	BRASS
