URO MINI 50 3.5W RD 12/24VDC
URO MINI 50 3.5W RD 12/24VDC

Všeobecni údaje

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	In-ground

Elektrická data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	3,5
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 2X1.5

Optika

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technická data

Total Consumption [W]	3,5
Lumen Output [LM]	195 – 230
Efficacy lm/W	56 – 66
Diffuser Material	Tempered glass
Body Material	SS316L
Beam Angle [°]	15, 27, 43
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	50

Popis:

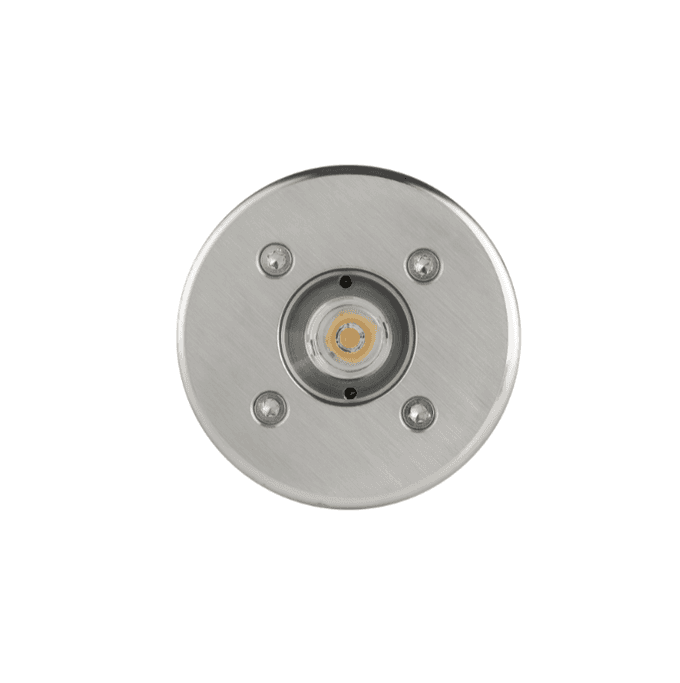

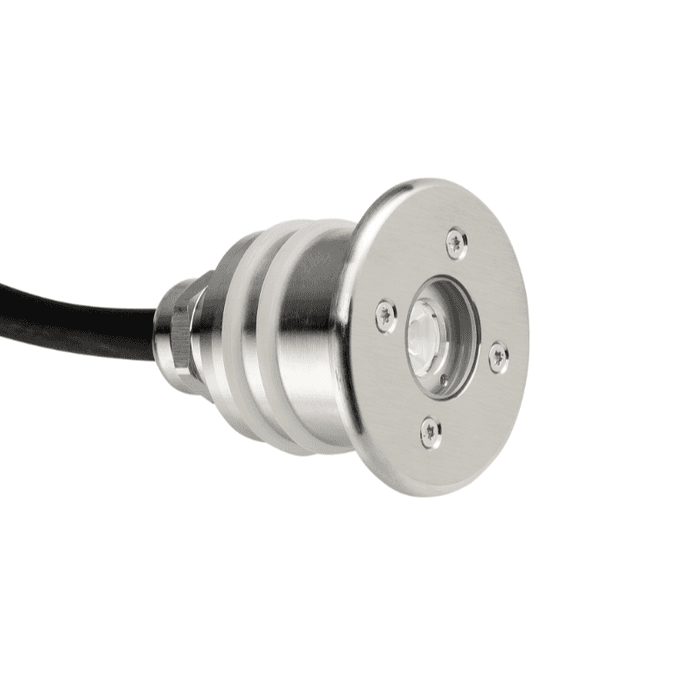

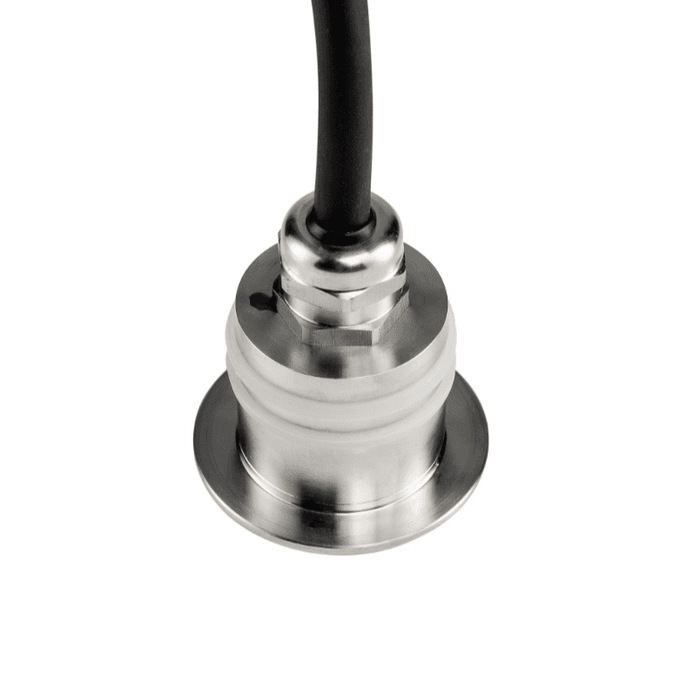

URO GROUND MINI RD 12/24VDC is a luminaire with a max power of 3,5W and 12V/24VDC.
The full stainless steel housing and IP67 rating provide many installation options, such as: bathrooms, kitchens, stairway, lighting, terraces, gardens, vegetation.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Ke stažení:

Technický list:

Technické ilustrace:

Montážní pokyny:

Certifikáty:

Fotometrická data:

Všeobecni údaje

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	In-ground

Elektrická data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	3,5
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 2X1.5

Optika

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technická data

Total Consumption [W]	3,5
Lumen Output [LM]	195 – 230
Efficacy lm/W	56 – 66
Diffuser Material	Tempered glass
Body Material	SS316L
Beam Angle [°]	15, 27, 43
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	50

Kryt

Body Material	SS316L
Body Color	SST

Světelně-technická data

Light Source	LED
Total Consumption [W]	3,5
Lumen Output [LM]	195 – 230
Efficacy lm/W	56 – 66
LED Color Temperature CCT [K]	2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	15, 27, 43
Light Distribution DIR/IND	DIR

Technická data

TA [°C]	-20 to +55
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

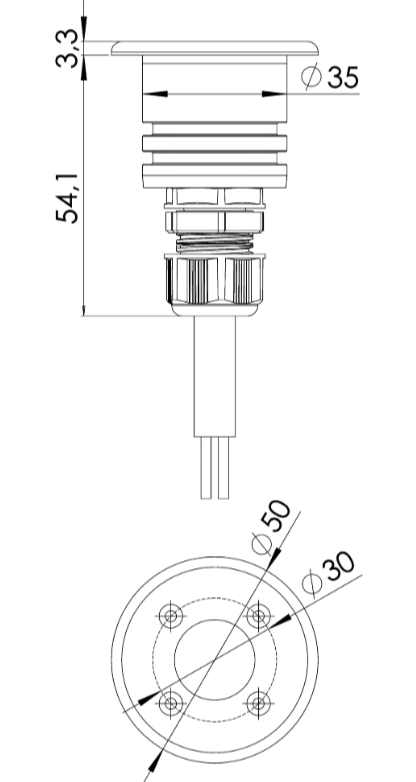

Rozměry

Diameter ø [mm]	50

Varianty

Item	Code	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	IP	Color
URO GROUND MINI RD 12/24VDC GLASS 195lm 3.5W 827 50 SS IP67	MI49884606	54	50	3,5	195	56	GLASS	15	80	2700	67	SST
URO GROUND MINI RD 12/24VDC GLASS 195lm 3.5W 827 50 SS IP67	MI44190329	54	50	3,5	195	56	GLASS	27	80	2700	67	SST
URO GROUND MINI RD 12/24VDC GLASS 195lm 3.5W 827 50 SS IP67	MI45350112	54	50	3,5	195	56	GLASS	43	80	2700	67	SST
URO GROUND MINI RD 12/24VDC GLASS 215lm 3.5W 830 50 SS IP67	MI44215385	54	50	3,5	215	62	GLASS	15	80	3000	67	SST
URO GROUND MINI RD 12/24VDC GLASS 215lm 3.5W 830 50 SS IP67	MI48372553	54	50	3,5	215	62	GLASS	27	80	3000	67	SST
URO GROUND MINI RD 12/24VDC GLASS 215lm 3.5W 830 50 SS IP67	MI45118725	54	50	3,5	215	62	GLASS	43	80	3000	67	SST
URO GROUND MINI RD 12/24VDC GLASS 215lm 3.5W 840 50 SS IP67	MI43131156	54	50	3,5	215	62	GLASS	15	80	4000	67	SST
URO GROUND MINI RD 12/24VDC GLASS 215lm 3.5W 840 50 SS IP67	MI42598609	54	50	3,5	215	62	GLASS	27	80	4000	67	SST
URO GROUND MINI RD 12/24VDC GLASS 215lm 3.5W 840 50 SS IP67	MI48413689	54	50	3,5	215	62	GLASS	43	80	4000	67	SST
URO GROUND MINI RD 12/24VDC GLASS 230lm 3.5W 850 50 SS IP67	MI42676463	54	50	3,5	230	66	GLASS	15	80	5000	67	SST
URO GROUND MINI RD 12/24VDC GLASS 230lm 3.5W 850 50 SS IP67	MI44358503	54	50	3,5	230	66	GLASS	27	80	5000	67	SST
URO GROUND MINI RD 12/24VDC GLASS 230lm 3.5W 850 50 SS IP67	MI4239532	54	50	3,5	230	66	GLASS	43	80	5000	67	SST
