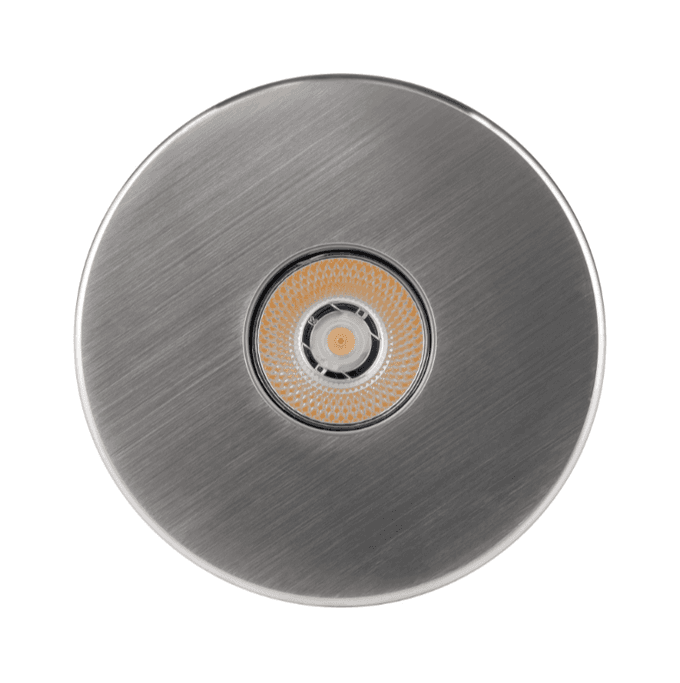

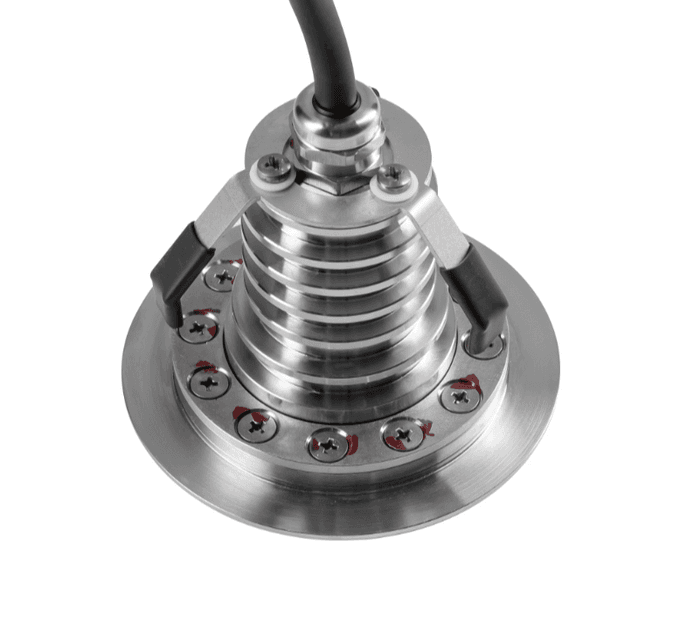

URO STANDARD 105 6W PREMIUM RD 12/24VDC
URO STANDARD 105 6W PREMIUM RD 12/24VDC

Všeobecni údaje

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	In-ground

Elektrická data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	6
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 2X1.5

Optika

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technická data

Total Consumption [W]	6
Lumen Output [LM]	540 – 710
Efficacy lm/W	90 – 118
Diffuser Material	Tempered glass
Body Material	SS316L, ALU
Beam Angle [°]	10, 20, 45
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2200, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	105

Popis:

URO GROUND STANDARD PREMIUM series of max 6W is designed to achieve the best visual effect by having no screws on the front.
Made of the highest quality materials such as marine steel, high purity glass and modern CREE LED®.
MILIA GROUND STANDARD PREMIUM luminaire can be used to illuminate a wide range of places and objects, such as: landscape, parks, gardens, terraces, squares, plants.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Ke stažení:

Technický list:

Technické ilustrace:

Montážní pokyny:

Certifikáty:

Fotometrická data:

Všeobecni údaje

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	In-ground

Elektrická data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	6
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 2X1.5

Optika

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technická data

Total Consumption [W]	6
Lumen Output [LM]	540 – 710
Efficacy lm/W	90 – 118
Diffuser Material	Tempered glass
Body Material	SS316L, ALU
Beam Angle [°]	10, 20, 45
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2200, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	105

Kryt

Body Material	SS316L, ALU
Body Color	SST

Světelně-technická data

Light Source	LED
Total Consumption [W]	6
Lumen Output [LM]	540 – 710
Efficacy lm/W	90 – 118
LED Color Temperature CCT [K]	2200, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	10, 20, 45
Light Distribution DIR/IND	DIR

Technická data

TA [°C]	-20 to +55
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

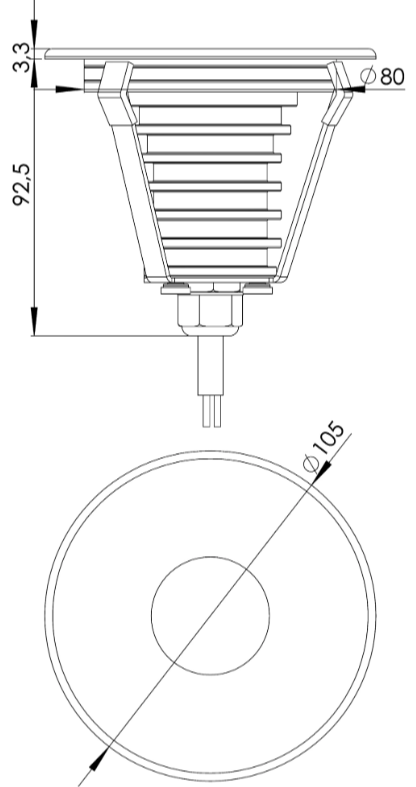

Rozměry

Diameter ø [mm]	105

Varianty

Item	Code	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	IP	Color
URO GROUND STANDARD PREMIUM RD 12/24VDC GLASS 540lm 6W 822 105 SS IP67	MI41917672	93	105	6	540	90	GLASS	10	80	2200	67	SST
URO GROUND STANDARD PREMIUM RD 12/24VDC GLASS 540lm 6W 822 105 SS IP67	MI41100585	93	105	6	540	90	GLASS	20	80	2200	67	SST
URO GROUND STANDARD PREMIUM RD 12/24VDC GLASS 540lm 6W 822 105 SS IP67	MI44325344	93	105	6	540	90	GLASS	10	80	2200	67	SST
URO GROUND STANDARD PREMIUM RD 12/24VDC GLASS 540lm 6W 822 105 SS IP67	MI46625545	93	105	6	540	90	GLASS	20	80	2200	67	SST
URO GROUND STANDARD PREMIUM RD 12/24VDC GLASS 650lm 6W 830 105 SS IP67	MI47622871	93	105	6	650	108	GLASS	10	80	3000	67	SST
URO GROUND STANDARD PREMIUM RD 12/24VDC GLASS 650lm 6W 830 105 SS IP67	MI42449631	93	105	6	650	108	GLASS	20	80	3000	67	SST
URO GROUND STANDARD PREMIUM RD 12/24VDC GLASS 650lm 6W 830 105 SS IP67	MI44731417	93	105	6	650	108	GLASS	10	80	3000	67	SST
URO GROUND STANDARD PREMIUM RD 12/24VDC GLASS 650lm 6W 830 105 SS IP67	MI43444260	93	105	6	650	108	GLASS	20	80	3000	67	SST
URO GROUND STANDARD PREMIUM RD 12/24VDC GLASS 710lm 6W 840 105 SS IP67	MI48608401	93	105	6	710	118	GLASS	10	80	4000	67	SST
URO GROUND STANDARD PREMIUM RD 12/24VDC GLASS 710lm 6W 840 105 SS IP67	MI47691528	93	105	6	710	118	GLASS	20	80	4000	67	SST
URO GROUND STANDARD PREMIUM RD 12/24VDC GLASS 710lm 6W 840 105 SS IP67	MI43770220	93	105	6	710	118	GLASS	10	80	4000	67	SST
URO GROUND STANDARD PREMIUM RD 12/24VDC GLASS 710lm 6W 840 105 SS IP67	MI43716192	93	105	6	710	118	GLASS	20	80	4000	67	SST
URO GROUND STANDARD PREMIUM RD 12/24VDC GLASS 710lm 6W 850 105 SS IP67	MI46327232	93	105	6	710	118	GLASS	10	80	5000	67	SST
URO GROUND STANDARD PREMIUM RD 12/24VDC GLASS 710lm 6W 850 105 SS IP67	MI4822681	93	105	6	710	118	GLASS	20	80	5000	67	SST
URO GROUND STANDARD PREMIUM RD 12/24VDC GLASS 710lm 6W 850 105 SS IP67	MI46640402	93	105	6	710	118	GLASS	10	80	5000	67	SST
URO GROUND STANDARD PREMIUM RD 12/24VDC GLASS 710lm 6W 850 105 SS IP67	MI45730196	93	105	6	710	118	GLASS	20	80	5000	67	SST
