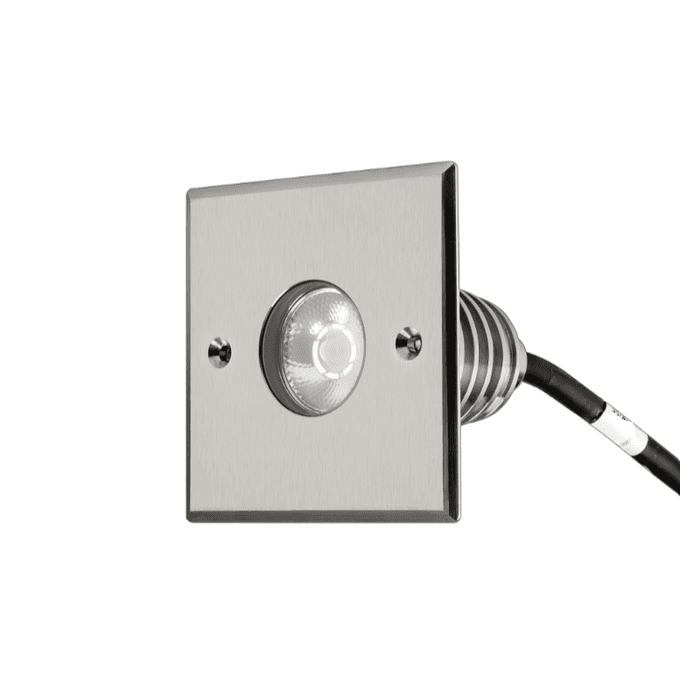

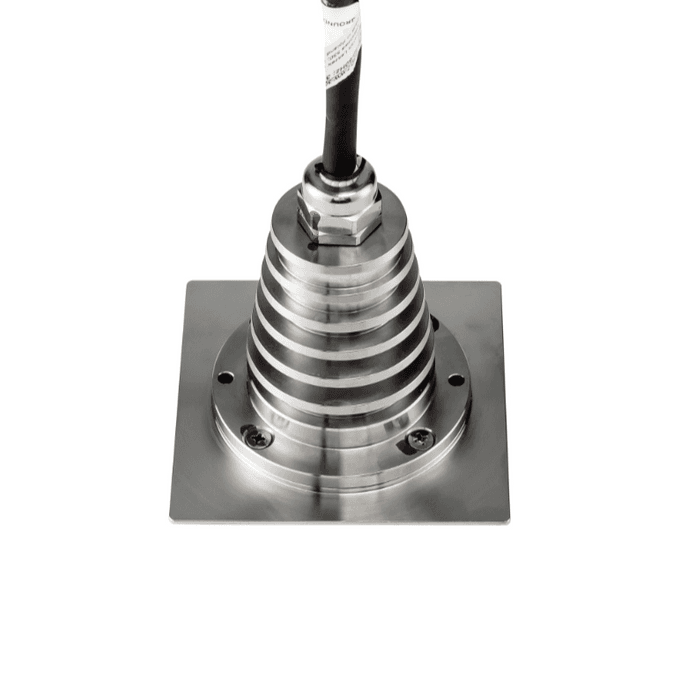

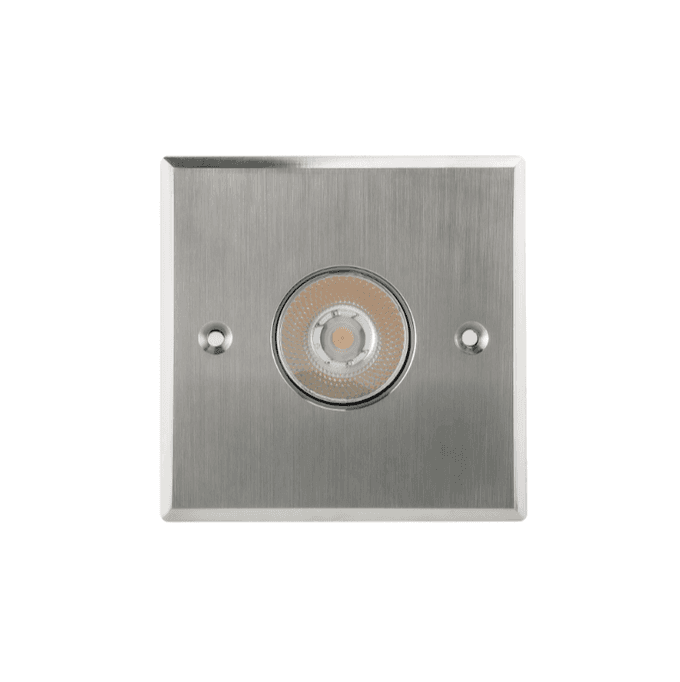

URO STANDARD SQ 12/24VDC
URO STANDARD SQ 12/24VDC

Všeobecni údaje

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Square
Type	Illumination
Mounting	In-ground

Elektrická data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	6
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 2X1.5

Optika

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technická data

Total Consumption [W]	6
Lumen Output [LM]	540 – 710
Efficacy lm/W	90 – 118
Diffuser Material	Tempered glass
Body Material	SS316L, ALU
Beam Angle [°]	10, 20
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2200, 2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC

Popis:

URO GROUND STANDARD series of max 6W is designed for the most demanding customers who expect a beautiful finish beyond the front. It has an SS316L stainless steel or aluminum body and is IP67-rated. MILLIA URO GROUND STANDARD luminaire can be used to illuminate a wide range of places and objects, such as parks, gardens, terraces, squares, premises, swimming pools.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Ke stažení:

Technický list:

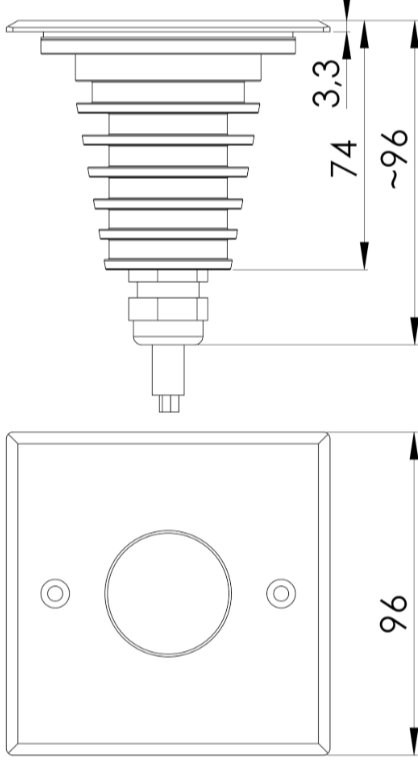

Technické ilustrace:

Montážní pokyny:

Certifikáty:

Fotometrická data:

Všeobecni údaje

Application	In-ground
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Square
Type	Illumination
Mounting	In-ground

Elektrická data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	6
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 2X1.5

Optika

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technická data

Total Consumption [W]	6
Lumen Output [LM]	540 – 710
Efficacy lm/W	90 – 118
Diffuser Material	Tempered glass
Body Material	SS316L, ALU
Beam Angle [°]	10, 20
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	2200, 2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC

Kryt

Body Material	SS316L, ALU
Body Color	SST

Světelně-technická data

Light Source	LED
Total Consumption [W]	6
Lumen Output [LM]	540 – 710
Efficacy lm/W	90 – 118
LED Color Temperature CCT [K]	2200, 2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	10, 20
Light Distribution DIR/IND	DIR

Technická data

TA [°C]	-20 to +55
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

Varianty

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	IP	Color
URO GROUND STANDARD SQ 12/24VDC GLASS 540lm 6W 822 96 SS IP67	MI41463228	96	96	96	6	540	90	GLASS	10	80	2200	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 540lm 6W 822 96 SS IP67	MI43615638	96	96	96	6	540	90	GLASS	20	80	2200	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 540lm 6W 822 96 SS IP67	MI48852423	96	96	96	6	540	90	GLASS	10	80	2200	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 540lm 6W 822 96 SS IP67	MI47957821	96	96	96	6	540	90	GLASS	20	80	2200	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 650lm 6W 827 96 SS IP67	MI48669535	96	96	96	6	650	108	GLASS	10	80	2700	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 650lm 6W 827 96 SS IP67	MI47537354	96	96	96	6	650	108	GLASS	20	80	2700	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 650lm 6W 827 96 SS IP67	MI46501252	96	96	96	6	650	108	GLASS	10	80	2700	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 650lm 6W 827 96 SS IP67	MI43266213	96	96	96	6	650	108	GLASS	20	80	2700	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 650lm 6W 830 96 SS IP67	MI42870395	96	96	96	6	650	108	GLASS	10	80	3000	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 650lm 6W 830 96 SS IP67	MI48039617	96	96	96	6	650	108	GLASS	20	80	3000	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 650lm 6W 830 96 SS IP67	MI44861122	96	96	96	6	650	108	GLASS	10	80	3000	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 650lm 6W 830 96 SS IP67	MI43786244	96	96	96	6	650	108	GLASS	20	80	3000	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 710lm 6W 840 96 SS IP67	MI41990426	96	96	96	6	710	118	GLASS	10	80	4000	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 710lm 6W 840 96 SS IP67	MI47312033	96	96	96	6	710	118	GLASS	20	80	4000	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 710lm 6W 840 96 SS IP67	MI48909540	96	96	96	6	710	118	GLASS	10	80	4000	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 710lm 6W 840 96 SS IP67	MI47116044	96	96	96	6	710	118	GLASS	20	80	4000	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 710lm 6W 850 96 SS IP67	MI4297511	96	96	96	6	710	118	GLASS	10	80	5000	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 710lm 6W 850 96 SS IP67	MI49940701	96	96	96	6	710	118	GLASS	20	80	5000	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 710lm 6W 850 96 SS IP67	MI44087640	96	96	96	6	710	118	GLASS	10	80	5000	67	SST
URO GROUND STANDARD SQ 12/24VDC GLASS 710lm 6W 850 96 SS IP67	MI46440261	96	96	96	6	710	118	GLASS	20	80	5000	67	SST
