VOIE S WOOD
VOIE S WOOD

Všeobecni údaje

Application	Illumination of public areas, access roads, parks, gardens, hotel surroundings, parking lots.
Product Shape	Pole
Type	Garden, Landscape, Street
Mounting	On foundation, Wall

Elektrická data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	30, 60
IEC Protection Class	I, on request II

Optika

Diffuser Material	PMMA
TYPE OF CONTROL	ON/OFF, on request DIM
LED LIFETIME Ta25 [h]	L80B20 70 000h

Technická data

Total Consumption [W]	30, 60
Lumen Output [LM]	3670, 7300
Diffuser Material	PMMA
Body Material	Aluminium
Beam Angle [°]	AS
LED Color Temperature CCT [K]	3000, 4000, on request 2700, 5000
Color Rendering Index [CRI]	80
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B20 70 000h
TYPE OF CONTROL	ON/OFF, on request DIM
Body Color	Graphite
Ingress Protection [IP]	65
Mechanical Protection [IK]	08
Main Feed AC [V]	220-240

Popis:

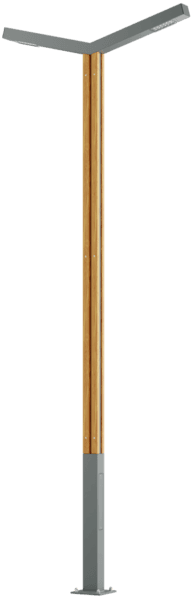

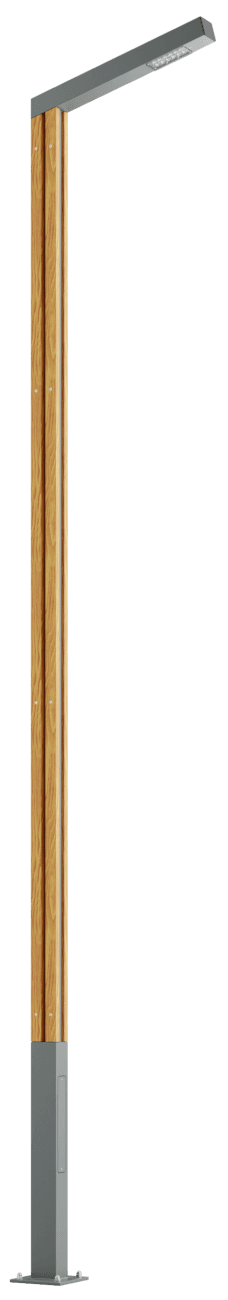

Lantern made of an aluminum profiles, according to individual projects. LED modules with modeled characteristics mounted in the arm booms. Version “D” – column enclosed with noble wood strips, impregnated and coloured in the selected colour. The use of modules with different power at different heights and directions allows to achieve spectacular effects appropriate to the place and function. Deisgned to illuminate areas around buildings, traffic routes, gardens, cycle paths, car parks..

Ke stažení:

Technický list:

Montážní pokyny:

Fotometrická data:

Certifikáty:

Všeobecni údaje

Application	Illumination of public areas, access roads, parks, gardens, hotel surroundings, parking lots.
Product Shape	Pole
Type	Garden, Landscape, Street
Mounting	On foundation, Wall

Elektrická data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	30, 60
IEC Protection Class	I, on request II

Optika

Diffuser Material	PMMA
TYPE OF CONTROL	ON/OFF, on request DIM
LED LIFETIME Ta25 [h]	L80B20 70 000h

Technická data

Total Consumption [W]	30, 60
Lumen Output [LM]	3670, 7300
Diffuser Material	PMMA
Body Material	Aluminium
Beam Angle [°]	AS
LED Color Temperature CCT [K]	3000, 4000, on request 2700, 5000
Color Rendering Index [CRI]	80
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B20 70 000h
TYPE OF CONTROL	ON/OFF, on request DIM
Body Color	Graphite
Ingress Protection [IP]	65
Mechanical Protection [IK]	08
Main Feed AC [V]	220-240

Kryt

Body Material	Aluminium
Body Color	Graphite
RAL	White 9003, Gray 7043, Graphite 7016, Black 9005

Světelně-technická data

Light Source	LED
Total Consumption [W]	30, 60
Lumen Output [LM]	3670, 7300
LED Color Temperature CCT [K]	3000, 4000, on request 2700, 5000
Color Rendering Index [CRI]	80
MacAdam step	3
Beam Angle [°]	AS

Technická data

TA [°C]	-30 to +45
Ingress Protection [IP]	65
Mechanical Protection [IK]	08
Corrosion Class	C3

Varianty

Item	Code	Lenght	Width	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	Type of Control	IP	Color	Foundation
Voie S Wood Lantern Lamp 4m 3670lm 30W 830 100 Gr IP65 ON/OFF	MI2469016312	100 100	800 1400	4000 4000		30 60	3670 7300			AS	80	3000 4000	ON/OFF DIM ON REQUEST	65	GRAPHITE	FBK 90/18
Voie S Wood Lantern Lamp 5m 3670lm 30W 830 100 Gr IP65 ON/OFF	MI2447249491	100 100	800 1400	5000 5000		30 60	3670 7300			AS	80	3000 4000	ON/OFF DIM ON REQUEST	65	GRAPHITE	FBK 90/18
