CAEL 95 TRANSPARENT 790lm 10W 930 BL IP44 ON/OFF
Item No. MI102866487
CAEL 95

CAEL 95 TRANSPARENT 790lm 10W 930 BL IP44 ON/OFF

MI102866487

Allgemeine Daten
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRound
TypeDownlight
MountingR
Mounting Opening85
Elektrische Daten
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]10
IEC Protection ClassI
Optik
DiffuserTRANSPARENT
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L80B10 60.000h
Technische Informationen
Total Consumption [W]10
Lumen Output [LM]790
Efficacy [lm/W]79
DiffuserTRANSPARENT
Beam Angle [°]43°
Light distributionDIR
CCT [K]3000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
Type of ControlON/OFF
Housing colorBLACK
IP44
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Produktbeschreibung :

A small, configurable spotlight – recessed downlight for interior lighting. A wide range of technical parameter and luminaire appearance variants for versatile applications. COB technology and a high-performance, metalized, facetted plastic reflector guarantee the optimum construction of the optical system and a high efficiency.

Key Advantages:

Various optic beam angle versions designed to suit any applications and requirements.

Downloads :
Produktdatenblatt :
1
Bedienungs-/Montageanleitung :
1
Zertifikate:
1
LDT:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/J - MOUNTING/R.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
CAEL 95
Allgemeine Daten
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRound
TypeDownlight
MountingR
Mounting Opening85
Elektrische Daten
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]10
IEC Protection ClassI
Optik
DiffuserTRANSPARENT
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L80B10 60.000h
Technische Informationen
Total Consumption [W]10
Lumen Output [LM]790
Efficacy [lm/W]79
DiffuserTRANSPARENT
Beam Angle [°]43°
Light distributionDIR
CCT [K]3000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
Type of ControlON/OFF
Housing colorBLACK
IP44
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Gehäusematerial & -farbe
Housing colorBLACK
FinishMatt, Gloss
Lichttechnische Informationen
Light SourceLED
Total Consumption [W]10
Lumen Output [LM]790
Efficacy [lm/W]79
CCT [K]3000
CRI90
MacAdam step3
Beam Angle [°]43°

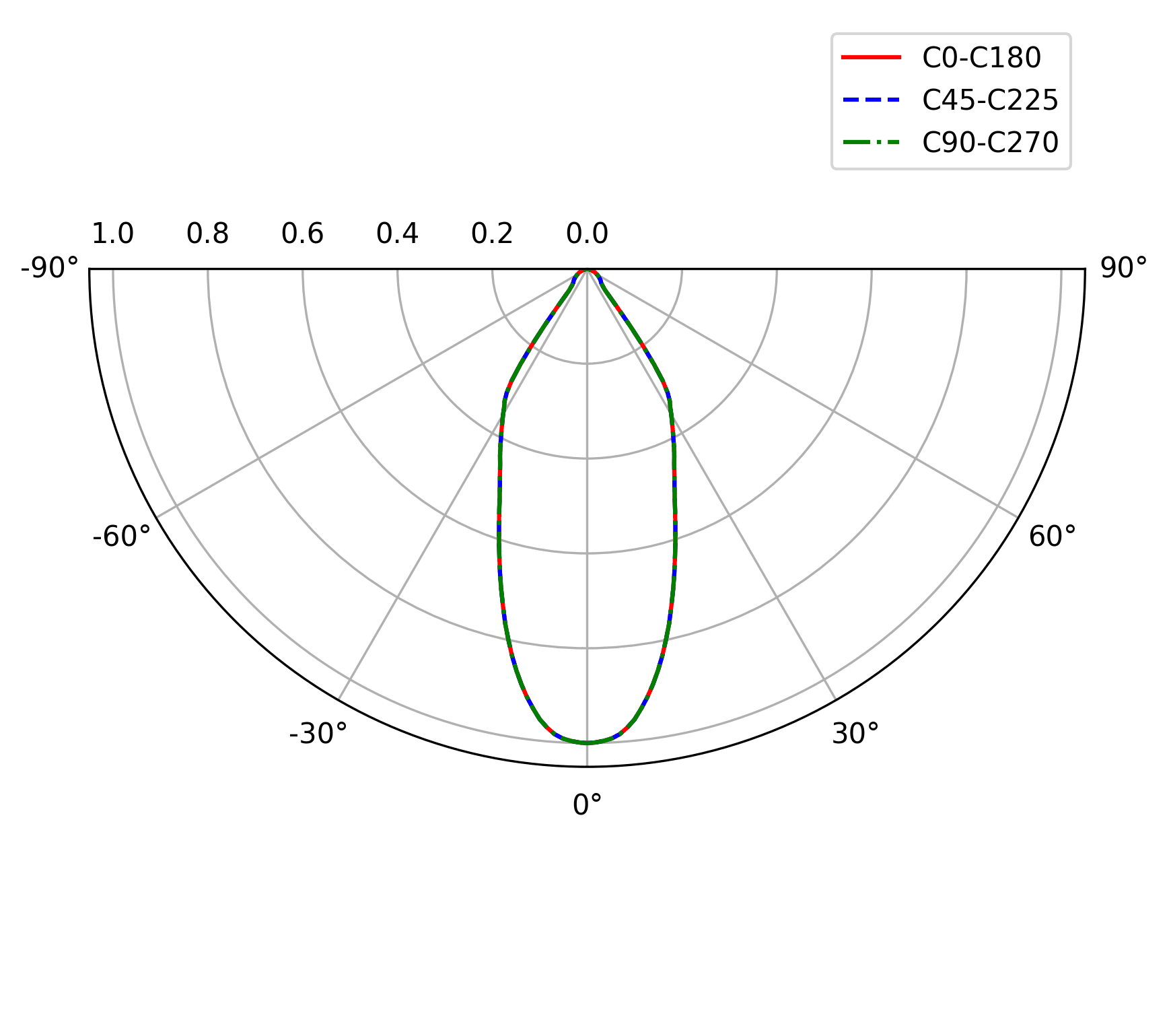

Light distributionDIR
Technische Informationen
IP44
Mechanical Protection [IK]01
Generating PDF...

Technische Illustrationen

CAEL 95
