ECLIP MEDIUM 220-240VAC 2 460lm 5W 827 169 SS IP67
Item No. MI6642488
ECLIP MEDIUM 220-240VAC

ECLIP MEDIUM 220-240VAC 2 460lm 5W 827 169 SS IP67

MI6642488

Allgemeine Daten
Key Advantages

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Product ShapeRound
TypeIllumination
MountingIn-ground
Elektrische Daten
Main Feed AC [V]220-240VAC
Main Feed Frequency [Hz]50-60
Total Consumption [W]5
IEC Protection ClassI
Connector Type0.5m
WiringH07RN-F 3G2
Optik
Diffuser2
LED LIFETIME Ta25 [h]≥ 60 000h
Technische Informationen
Total Consumption [W]5
Lumen Output [LM]460
Efficacy [lm/W]77
Diffuser2
Housing MaterialSS316L
Beam Angle [°]180
Light distributionSYM
CCT [K]2700
CRI80
MacAdam step<3
LED LIFETIME Ta25 [h]≥ 60 000h
Housing colorSST
IP67
Mechanical Protection [IK]10
Main Feed AC [V]220-240VAC
Diameter ø [mm]169
Produktbeschreibung :

ECLIP MEDIUM 6W 220-240VAC is made of the highest quality materials such as marine steel and/or aluminum.. The power is 6W and the load pressure is 1300kg. ECLIP MEDIUM can be used to illuminate many places and objects, such as recreational areas, gardens, terraces, commercial parking lots, skate parks, etc.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Downloads :
Produktdatenblatt :
1
Technische Illustrationen:
1
Bedienungs-/Montageanleitung :
1
Zertifikate:
1
LDT:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/67.svg
/soft4net/img/project/icons/BB - IK/10.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/2700_80.svg
ECLIP MEDIUM 220-240VAC
Allgemeine Daten
Key Advantages

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Product ShapeRound
TypeIllumination
MountingIn-ground
Elektrische Daten
Main Feed AC [V]220-240VAC
Main Feed Frequency [Hz]50-60
Total Consumption [W]5
IEC Protection ClassI
Connector Type0.5m
WiringH07RN-F 3G2
Optik
Diffuser2
LED LIFETIME Ta25 [h]≥ 60 000h
Technische Informationen
Total Consumption [W]5
Lumen Output [LM]460
Efficacy [lm/W]77
Diffuser2
Housing MaterialSS316L
Beam Angle [°]180
Light distributionSYM
CCT [K]2700
CRI80
MacAdam step<3
LED LIFETIME Ta25 [h]≥ 60 000h
Housing colorSST
IP67
Mechanical Protection [IK]10
Main Feed AC [V]220-240VAC
Diameter ø [mm]169
Gehäusematerial & -farbe
Housing MaterialSS316L
Housing colorSST
Lichttechnische Informationen
Light SourceLED
Total Consumption [W]5
Lumen Output [LM]460
Efficacy [lm/W]77
CCT [K]2700
CRI80
MacAdam step<3
Beam Angle [°]180
Light distributionSYM
Technische Informationen
IP67
Mechanical Protection [IK]10
Corrosion ClassC3, C4
Abmessungen
Diameter ø [mm]169
Generating PDF...

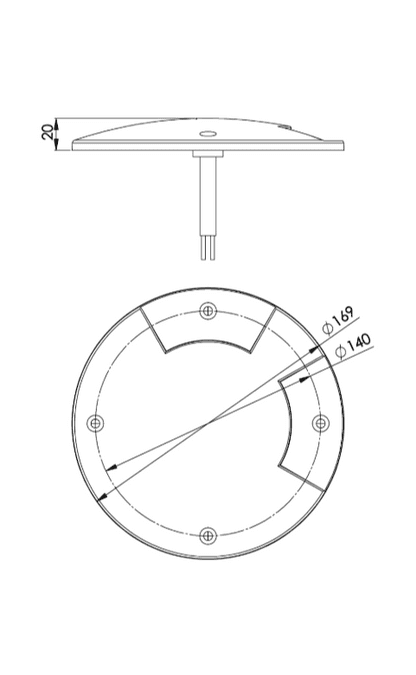

Technische Illustrationen

ECLIP MEDIUM 220-240VAC
