LINA H MINI
LINA H MINI

Allgemeine Daten
Application

production halls warehouses underground parkings and passes powerhouses workshops car washes petrol stations

Key Advantages

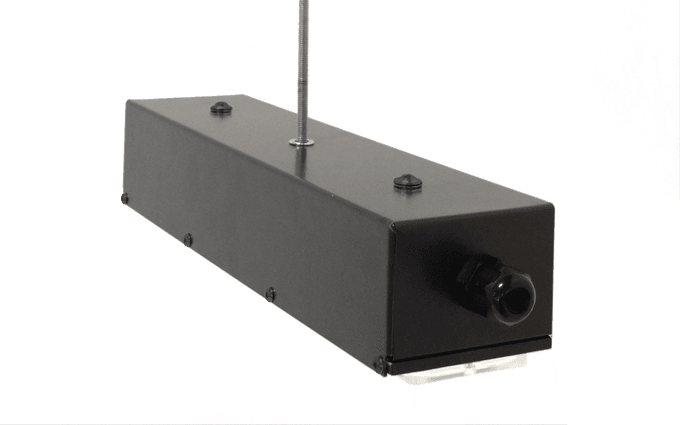

luminous efficacy up to 148 lm/W optional quick and easy linking of multiple units lifetime up to 100 000 h (L80B10) three mounting methods: surface mounted, on ropes or single-point universal application can be adapted to any control system modern design and solid workmanship (IP65, IK09)

Product ShapeLINEAR
TypeHIGHBAY
MountingPENDANT, SURFACE
Elektrische Daten
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]25
IEC Protection ClassI, II
Optik
Diffuser MaterialTEMPERED GLASS
Diffuser Material DesignCLEAR
TYPE OF CONTROLON/OFF DALI
LED LIFETIME Ta25 [h]L80B10 100 000h
Technische Informationen
Total Consumption [W]25
Lumen Output [LM]3700
Efficacy lm/W148
Diffuser MaterialTEMPERED GLASS
Body MaterialALUMINIUM
Beam Angle [°]90°, 60°, 30°, 20°, ±20°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 100 000h
TYPE OF CONTROLON/OFF DALI
Body ColorANTHRACIT
Ingress Protection [IP]65
Mechanical Protection [IK]09
Main Feed AC [V]220-240
Weight [KG]1.60 kg
Produktbeschreibung :

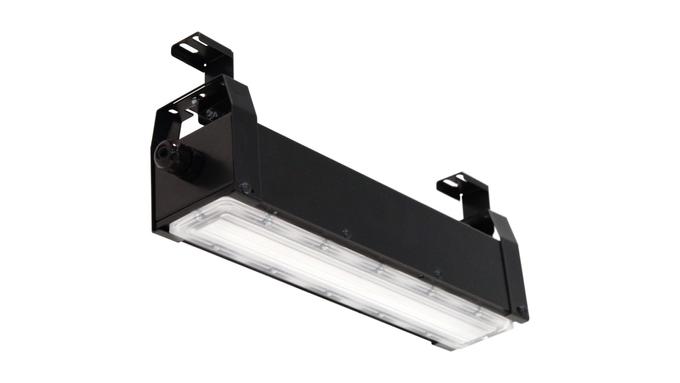

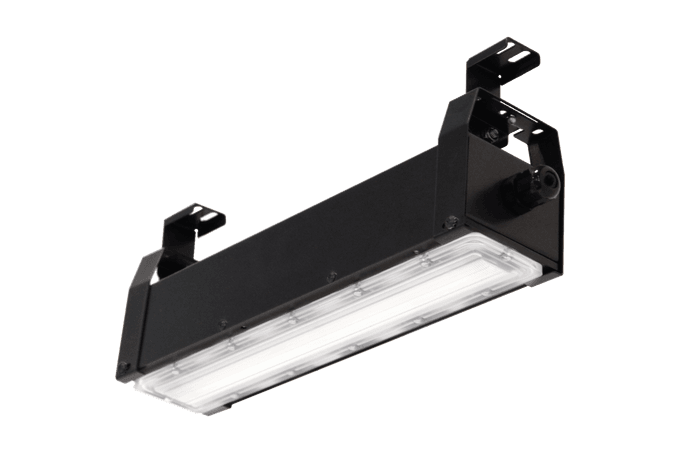

LINA HERMETIC LED MINI is a hermetic light fitting for use in production halls, storage rooms, workshops, supermarkets as well as car parks. Given its high ingress protection rating IP65, it is also perfectly applicable in car washes. With its excellent performance and optics, the light fitting can be used in narrow corridors as well as open spaces. Simple design ensures easy installation. Connectable units can be easily and tool-free installed in continuous light-lines, which constitutes an additional strength of the fitting. Equipped with linear optics with very low unified glare rating (UGR), LINA HERMETIC LED MINI is perfect for low and medium installation heights.

Key Advantages:

luminous efficacy up to 148 lm/W optional quick and easy linking of multiple units lifetime up to 100 000 h (L80B10) three mounting methods: surface mounted, on ropes or single-point universal application can be adapted to any control system modern design and solid workmanship (IP65, IK09)

Downloads :
Produktdatenblatt :
1
Technische Illustrationen:
1
Bedienungs-/Montageanleitung :
1
Zertifikate:
1
LDT:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/65.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
Allgemeine Daten
Application

production halls warehouses underground parkings and passes powerhouses workshops car washes petrol stations

Key Advantages

luminous efficacy up to 148 lm/W optional quick and easy linking of multiple units lifetime up to 100 000 h (L80B10) three mounting methods: surface mounted, on ropes or single-point universal application can be adapted to any control system modern design and solid workmanship (IP65, IK09)

Product ShapeLINEAR
TypeHIGHBAY
MountingPENDANT, SURFACE
Elektrische Daten
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]25
IEC Protection ClassI, II
Optik
Diffuser MaterialTEMPERED GLASS
Diffuser Material DesignCLEAR
TYPE OF CONTROLON/OFF DALI
LED LIFETIME Ta25 [h]L80B10 100 000h
Technische Informationen
Total Consumption [W]25
Lumen Output [LM]3700
Efficacy lm/W148
Diffuser MaterialTEMPERED GLASS
Body MaterialALUMINIUM
Beam Angle [°]90°, 60°, 30°, 20°, ±20°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 100 000h
TYPE OF CONTROLON/OFF DALI
Body ColorANTHRACIT
Ingress Protection [IP]65
Mechanical Protection [IK]09
Main Feed AC [V]220-240
Weight [KG]1.60 kg
Gehäusematerial & -farbe
Body MaterialALUMINIUM
Body ColorANTHRACIT
RALANY RAL UPON REQUEST
FinishPOWDER COATING
Lichttechnische Informationen
Light SourceLED
Total Consumption [W]25
Lumen Output [LM]3700
Efficacy lm/W148
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80
MacAdam step3
Beam Angle [°]90°, 60°, 30°, 20°, ±20°
Light Distribution DIR/INDDIR
Technische Informationen
TA [°C]-25 to +40
Ingress Protection [IP]65
Mechanical Protection [IK]09
Corrosion ClassC3, C4
Abmessungen
Weight [KG]1.60 kg
Generating PDF...

Varianten

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
LINA H MINI 25W, 3700lm, CRI 80 3700lm 25W 830 IP65 ON/OFFMI1311736652253700148803000
4000		ON/OFF65
