MEDICA SDK 600x600 RECESSED
MEDICA SDK 600x600 RECESSED

Allgemeine Daten
Application

Applications such as clinical areas of hospitals and health care buildings, laboratories, operating rooms without sterile ceilings, food processing facilities and commercial kitchen

Product ShapeSquare
TypeClean room
MountingRecessed
Elektrische Daten
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]44
IEC Protection ClassI
Optik
Diffuser Material DesignOpal
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 150.000h
Technische Informationen
Total Consumption [W]44
Lumen Output [LM]5200
Efficacy lm/W117
Body MaterialPowdercoated steel sheet
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 150.000h
Body ColorWhite 9016
Ingress Protection [IP]65
Mechanical Protection [IK]04
Main Feed AC [V]220-240
Produktbeschreibung :

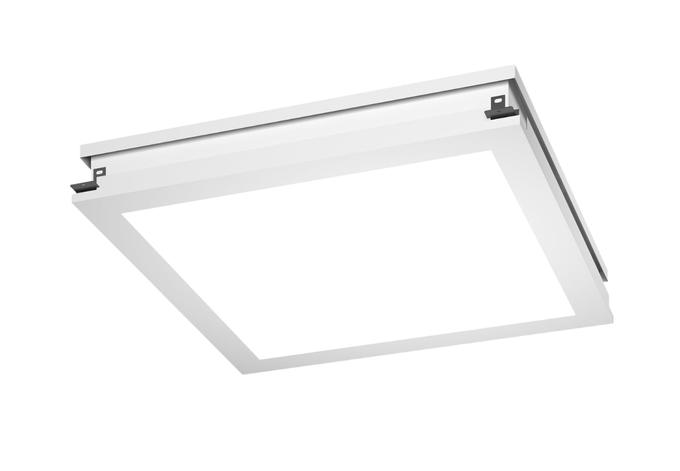

A versatile, recessed for sheetrock installation luminaire with IP65

Downloads :
Produktdatenblatt :
1
Bedienungs-/Montageanleitung :
1
Zertifikate:
1
LDT:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
Allgemeine Daten
Application

Applications such as clinical areas of hospitals and health care buildings, laboratories, operating rooms without sterile ceilings, food processing facilities and commercial kitchen

Product ShapeSquare
TypeClean room
MountingRecessed
Elektrische Daten
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]44
IEC Protection ClassI
Optik
Diffuser Material DesignOpal
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 150.000h
Technische Informationen
Total Consumption [W]44
Lumen Output [LM]5200
Efficacy lm/W117
Body MaterialPowdercoated steel sheet
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 150.000h
Body ColorWhite 9016
Ingress Protection [IP]65
Mechanical Protection [IK]04
Main Feed AC [V]220-240
Gehäusematerial & -farbe
Body MaterialPowdercoated steel sheet
Body ColorWhite 9016
Lichttechnische Informationen
Light SourceLED
Total Consumption [W]44
Lumen Output [LM]5200
Efficacy lm/W117
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]90
MacAdam step3
Light Distribution DIR/INDDIR
Technische Informationen
TA [°C]5-30
Ingress Protection [IP]65
Mechanical Protection [IK]04
