ORTUS 100 SURFACE TRANSPARENT 1350lm 12W 930 BL IP44 ON/OFF
Item No. MI106122776
ORTUS 100 SURFACE

ORTUS 100 SURFACE TRANSPARENT 1350lm 12W 930 BL IP44 ON/OFF

MI106122776

Allgemeine Daten
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRound
TypeSpotlight
MountingS
Elektrische Daten
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]12
IEC Protection ClassI
Optik
DiffuserTRANSPARENT
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L70B50 50.000h
Technische Informationen
Total Consumption [W]12
Lumen Output [LM]1350
Efficacy [lm/W]113
DiffuserTRANSPARENT

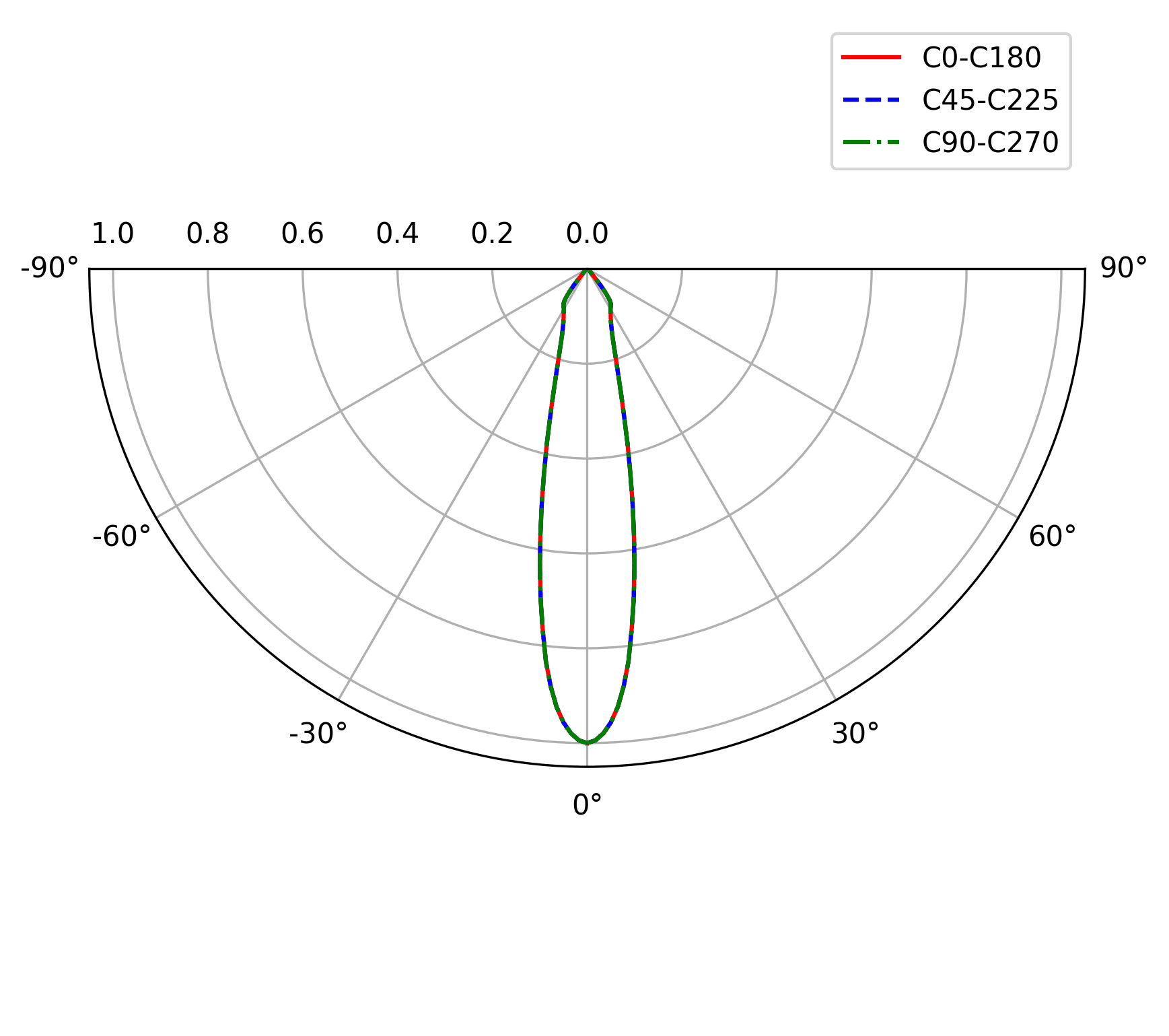

Beam Angle [°]22°
Light distributionDIR
CCT [K]3000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L70B50 50.000h
Type of ControlON/OFF
Housing colorBLACK
IP44
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Produktbeschreibung :

A small, configurable spotlight – surface downlight for interior lighting. A wide range of technical parameter and luminaire appearance variants for versatile applications. COB technology and a high-performance, metalized, facetted plastic reflector guarantee the optimum construction of the optical system and a high efficiency. The tempered transparent glass protects the luminaire against dust, dirt. A ring or frame made of die-cast aluminium or steel sheet, painted white or black as a standard.

Key Advantages:

Various optic beam angle versions designed to suit any applications and requirements.

Downloads :
Produktdatenblatt :
1
Bedienungs-/Montageanleitung :
1
Zertifikate:
1
LDT:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/J - MOUNTING/S.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
ORTUS 100 SURFACE
Allgemeine Daten
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRound
TypeSpotlight
MountingS
Elektrische Daten
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]12
IEC Protection ClassI
Optik
DiffuserTRANSPARENT
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L70B50 50.000h
Technische Informationen
Total Consumption [W]12
Lumen Output [LM]1350
Efficacy [lm/W]113
DiffuserTRANSPARENT
Beam Angle [°]22°
Light distributionDIR
CCT [K]3000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L70B50 50.000h
Type of ControlON/OFF
Housing colorBLACK
IP44
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Gehäusematerial & -farbe
Housing colorBLACK
FinishMatt, Gloss
Lichttechnische Informationen
Light SourceLED
Total Consumption [W]12
Lumen Output [LM]1350
Efficacy [lm/W]113
CCT [K]3000
CRI90
MacAdam step3
Beam Angle [°]22°
Light distributionDIR
Technische Informationen
IP44
Mechanical Protection [IK]01
Generating PDF...

Technische Illustrationen

ORTUS 100 SURFACE
