ACRA PENDANT
ACRA PENDANT

General data
Application

The luminaire’s design and low glare rating makes it an excellent choice for offices, entrance halls, lobbies, conference rooms, residential applications.

Product ShapeRound
TypeDecorative
MountingPendant
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]24 - 48
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignOpal
TYPE OF CONTROLON/OFF
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B10 60.000h
Technical data
Total Consumption [W]24 - 48
Lumen Output [LM]2950 - 3360
Efficacy lm/Wup to 70
Diffuser MaterialPMMA
Body MaterialAnodized aluminium
Beam Angle [°]360°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
TYPE OF CONTROLON/OFF
Body ColorWhite 9016
Ingress Protection [IP]20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Diameter ø [mm]515
Description:

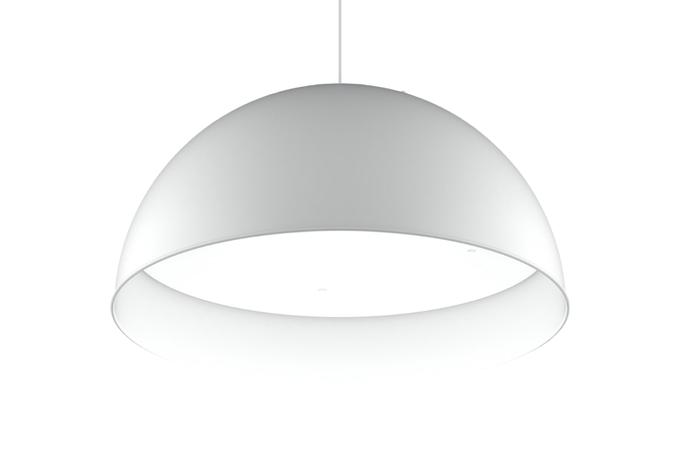

A pendant luminaire that can make a striking impression with its bold plano-convex cylinder shape made of aluminium in white color with a highly permeable, evenly illuminated opal diffuser allow for the luminaire to suit many different applications. Ceiling canopy with supply cable L=800mm included

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/J - MOUNTING/P.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
General data
Application

The luminaire’s design and low glare rating makes it an excellent choice for offices, entrance halls, lobbies, conference rooms, residential applications.

Product ShapeRound
TypeDecorative
MountingPendant
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]24 - 48
IEC Protection ClassI
Optics
Diffuser MaterialPMMA
Diffuser Material DesignOpal
TYPE OF CONTROLON/OFF
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B10 60.000h
Technical data
Total Consumption [W]24 - 48
Lumen Output [LM]2950 - 3360
Efficacy lm/Wup to 70
Diffuser MaterialPMMA
Body MaterialAnodized aluminium
Beam Angle [°]360°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
TYPE OF CONTROLON/OFF
Body ColorWhite 9016
Ingress Protection [IP]20
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Diameter ø [mm]515
Housing
Body MaterialAnodized aluminium
Body ColorWhite 9016
Light technical data
Light SourceLED
Total Consumption [W]24 - 48
Lumen Output [LM]2950 - 3360
Efficacy lm/Wup to 70
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80
UGR<19
MacAdam step3
Beam Angle [°]360°
Light Distribution DIR/INDDIR
Technical data
TA [°C]0 to +25
Ingress Protection [IP]20
Mechanical Protection [IK]01
Dimensions
Diameter ø [mm]515
