ACRO
ACRO

General data
Product ShapeSquare
MountingSurface
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]24 - 37
IEC Protection ClassII
Optics
Diffuser MaterialPMMA
Diffuser Material DesignOpal
TYPE OF CONTROLON/OFF
CONTROL SYSTEMON/OFF, DALI, 1-10V, Touch-Dim, Casambi
LED LIFETIME Ta25 [h]LM80 and TM21 60 000 h
Technical data
Total Consumption [W]24 - 37
Lumen Output [LM]2520 - 3885
Efficacy lm/W105
Diffuser MaterialPMMA
Body MaterialSteel sheet body
Beam Angle [°]120
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000 - 6500
Color Rendering Index [CRI]80
MacAdam step3
LED LIFETIME Ta25 [h]LM80 and TM21 60 000 h
TYPE OF CONTROLON/OFF
Body ColorOpal white
Ingress Protection [IP]54
Mechanical Protection [IK]03
Main Feed AC [V]220-240
Description:

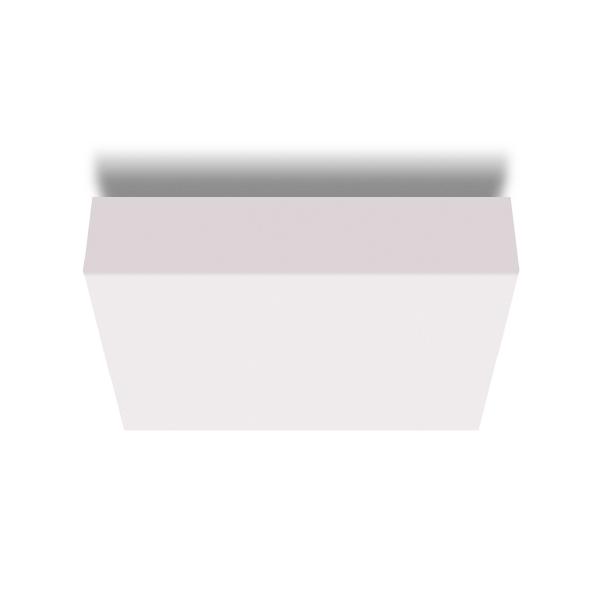

The ACRO series is a modern, surface LED lighting solution designed for optimal performance and durability for general indoor lighting.
Available in three dimensions—300mm, 400mm, 550mm, 600mm—these fixtures are ideal for a wide range of indoor applications.

Downloads:
Datasheet:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/CASAMBI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/54.svg
General data
Product ShapeSquare
MountingSurface
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]24 - 37
IEC Protection ClassII
Optics
Diffuser MaterialPMMA
Diffuser Material DesignOpal
TYPE OF CONTROLON/OFF
CONTROL SYSTEMON/OFF, DALI, 1-10V, Touch-Dim, Casambi
LED LIFETIME Ta25 [h]LM80 and TM21 60 000 h
Technical data
Total Consumption [W]24 - 37
Lumen Output [LM]2520 - 3885
Efficacy lm/W105
Diffuser MaterialPMMA
Body MaterialSteel sheet body
Beam Angle [°]120
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000 - 6500
Color Rendering Index [CRI]80
MacAdam step3
LED LIFETIME Ta25 [h]LM80 and TM21 60 000 h
TYPE OF CONTROLON/OFF
Body ColorOpal white
Ingress Protection [IP]54
Mechanical Protection [IK]03
Main Feed AC [V]220-240
Housing
Body MaterialSteel sheet body
Body ColorOpal white
Light technical data
Light SourcePCB LED
Total Consumption [W]24 - 37
Lumen Output [LM]2520 - 3885
Efficacy lm/W105
LED Color Temperature CCT [K]3000 - 6500
Color Rendering Index [CRI]80
MacAdam step3
Beam Angle [°]120
Light Distribution DIR/INDDIR
Technical data
TA [°C]-20 - +35
Ingress Protection [IP]54
Mechanical Protection [IK]03
