ARLA
ARLA

General data

Application	Lighting of historic and sacred spaces, as well as parks, squares..
Product Shape	Round
Type	Garden, Landscape, Street
Mounting	On a pole, arm

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	26, 30, 36, 60
IEC Protection Class	I, on request II

Optics

Diffuser Material	PMMA
TYPE OF CONTROL	ON/OFF, on request DIM
LED LIFETIME Ta25 [h]	L80B20 70 000h

Technical data

Total Consumption [W]	26, 30, 36, 60
Lumen Output [LM]	2700, 3100, 3200, 5400
Diffuser Material	PMMA
Body Material	Aluminium
Beam Angle [°]	AS, S, ASW, ASP
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000, on request 2700, 5000
Color Rendering Index [CRI]	80
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B20 70 000h
TYPE OF CONTROL	ON/OFF, on request DIM
Body Color	Black, Graphite, Grey
Ingress Protection [IP]	65
Mechanical Protection [IK]	08
Main Feed AC [V]	220-240
Weight [KG]	4.00 kg

Description:

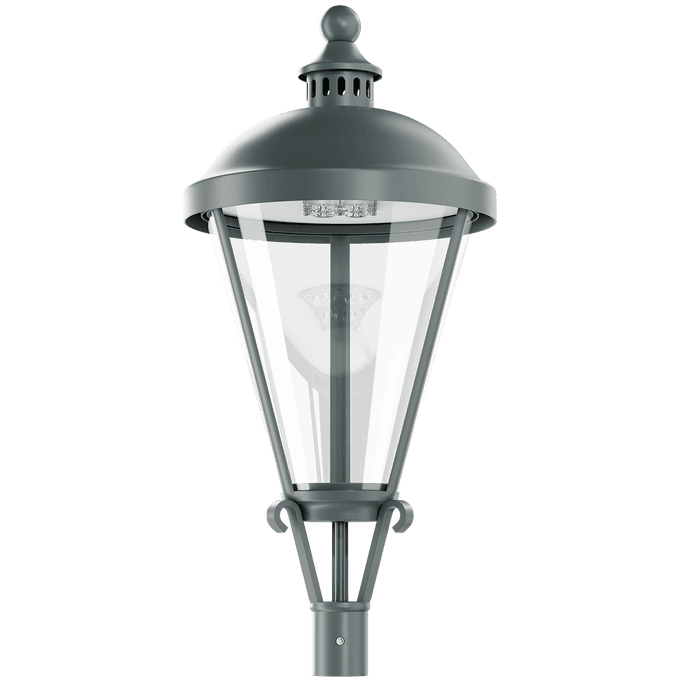

A classic luminaire suitable for mounting directly on a 60 mm diameter pole or arm system – Aria, Aria S at a height of 3-4 m, Arla Plus at a height of 5-6 m. The aluminium body is a sealed fixture chamber enclosed by a plate on which a sealed LED module with lens is mounted on the diffuser side. The dome is set on shaped profiles connected to a lower rosette, which acts as the luminaire’s attachment to the pole. The Aria version has a UV-resistant polycarbonate diffuser. Arla S and Arla Plus versions without diffuser.

Downloads:

Datasheet:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	Lighting of historic and sacred spaces, as well as parks, squares..
Product Shape	Round
Type	Garden, Landscape, Street
Mounting	On a pole, arm

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	26, 30, 36, 60
IEC Protection Class	I, on request II

Optics

Diffuser Material	PMMA
TYPE OF CONTROL	ON/OFF, on request DIM
LED LIFETIME Ta25 [h]	L80B20 70 000h

Technical data

Total Consumption [W]	26, 30, 36, 60
Lumen Output [LM]	2700, 3100, 3200, 5400
Diffuser Material	PMMA
Body Material	Aluminium
Beam Angle [°]	AS, S, ASW, ASP
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000, on request 2700, 5000
Color Rendering Index [CRI]	80
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B20 70 000h
TYPE OF CONTROL	ON/OFF, on request DIM
Body Color	Black, Graphite, Grey
Ingress Protection [IP]	65
Mechanical Protection [IK]	08
Main Feed AC [V]	220-240
Weight [KG]	4.00 kg

Housing

Body Material	Aluminium
Body Color	Black, Graphite, Grey
RAL	Gray 7043, Graphite 7016, Black 9005

Light technical data

Light Source	LED
Total Consumption [W]	26, 30, 36, 60
Lumen Output [LM]	2700, 3100, 3200, 5400
LED Color Temperature CCT [K]	3000, 4000, on request 2700, 5000
Color Rendering Index [CRI]	80
MacAdam step	3
Beam Angle [°]	AS, S, ASW, ASP
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-30 to +45
Ingress Protection [IP]	65
Mechanical Protection [IK]	08
Corrosion Class	C3

Dimensions

Weight [KG]	4.00 kg

Variations

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Beam Angle	CRI	Color K	Type of Control	IP	Color
Arla 30W LED 3100lm 30W 830 380 Bl Gr Gr IP65 ON/OFF	MI2415351482	380	380	700	30	3100	AS, S, ASW, ASP	80	3000 4000	ON/OFF DIM ON REQUEST	65	BLACK GRAPHITE GREY
Arla 36W LED 3200lm 36W 830 380 Bl Gr Gr IP65 ON/OFF	MI2410193067	380	380	700	36	3200	AS, S, ASW, ASP	80	3000 4000	ON/OFF DIM ON REQUEST	65	BLACK GRAPHITE GREY
Arla 60W LED 5400lm 60W 830 380 Bl Gr Gr IP65 ON/OFF	MI2402049031	380	380	700	60	5400	AS, S, ASW, ASP	80	3000 4000	ON/OFF DIM ON REQUEST	65	BLACK GRAPHITE GREY
Arla 26W COB LED 2700lm 26W 830 380 Bl Gr Gr IP65 ON/OFF	MI2458628420	380	380	700	26	2700	AS, S, ASW, ASP	80	3000 4000	ON/OFF DIM ON REQUEST	65	BLACK GRAPHITE GREY
