BOCART O
BOCART O

General data

Application	Illumination of public areas, access roads, parks, gardens, hotel surroundings, parking lots.
Product Shape	Pole
Type	Garden, Landscape, Street
Mounting	On foundation, Wall

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	8, 40, 48, 18,5
IEC Protection Class	I, on request II

Optics

Diffuser Material	PMMA
TYPE OF CONTROL	ON/OFF, on request DIM
LED LIFETIME Ta25 [h]	L80B20 70 000h

Technical data

Total Consumption [W]	8, 40, 48, 18,5
Lumen Output [LM]	920, 960, 2100, 4400
Diffuser Material	PMMA
Body Material	Aluminium
Beam Angle [°]	S
LED Color Temperature CCT [K]	3000, 4000, on request 2700, 5000
Color Rendering Index [CRI]	80
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B20 70 000h
TYPE OF CONTROL	ON/OFF, on request DIM
Body Color	White, Black, Graphite, Grey
Ingress Protection [IP]	65
Mechanical Protection [IK]	08
Main Feed AC [V]	220-240

Description:

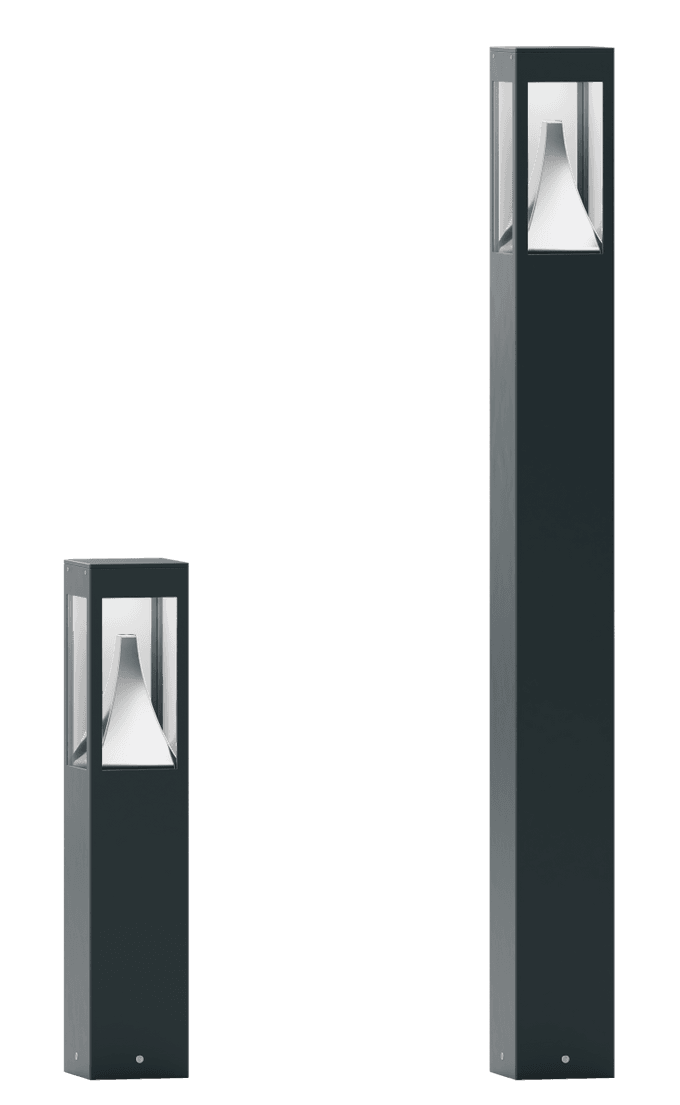

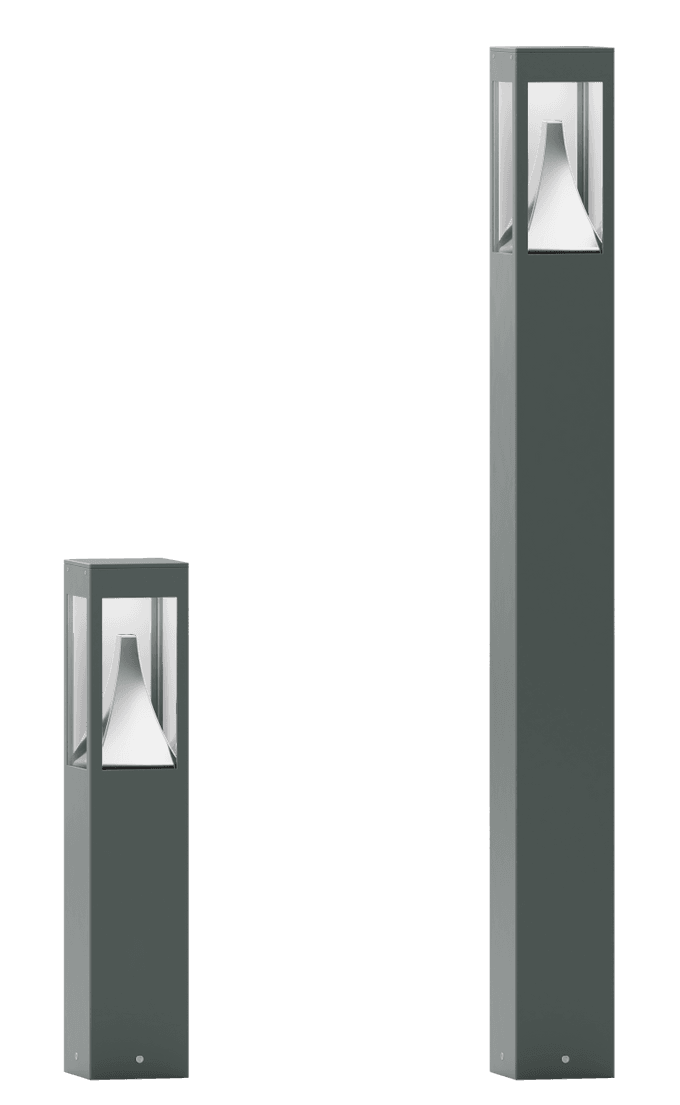

Modern LED lantern with its column made of a square aluminium profile fixed to the foundation. The upper part forms an optical chamber with oryginal reflector. Lamp-shade made of PC or PMMA (transparent). The lower part LP (in the bay) contains a fuse plate and power supply unit. Optionally, IP 54 230-V plug sockets can be mounted.

Downloads:

Datasheet:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	Illumination of public areas, access roads, parks, gardens, hotel surroundings, parking lots.
Product Shape	Pole
Type	Garden, Landscape, Street
Mounting	On foundation, Wall

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	8, 40, 48, 18,5
IEC Protection Class	I, on request II

Optics

Diffuser Material	PMMA
TYPE OF CONTROL	ON/OFF, on request DIM
LED LIFETIME Ta25 [h]	L80B20 70 000h

Technical data

Total Consumption [W]	8, 40, 48, 18,5
Lumen Output [LM]	920, 960, 2100, 4400
Diffuser Material	PMMA
Body Material	Aluminium
Beam Angle [°]	S
LED Color Temperature CCT [K]	3000, 4000, on request 2700, 5000
Color Rendering Index [CRI]	80
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B20 70 000h
TYPE OF CONTROL	ON/OFF, on request DIM
Body Color	White, Black, Graphite, Grey
Ingress Protection [IP]	65
Mechanical Protection [IK]	08
Main Feed AC [V]	220-240

Housing

Body Material	Aluminium
Body Color	White, Black, Graphite, Grey
RAL	White 9003, Gray 7043, Graphite 7016, Black 9005

Light technical data

Light Source	LED
Total Consumption [W]	8, 40, 48, 18,5
Lumen Output [LM]	920, 960, 2100, 4400
LED Color Temperature CCT [K]	3000, 4000, on request 2700, 5000
Color Rendering Index [CRI]	80
MacAdam step	3
Beam Angle [°]	S

Technical data

TA [°C]	-30 to +45
Ingress Protection [IP]	65
Mechanical Protection [IK]	08
Corrosion Class	C3

Variations

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Beam Angle	CRI	Color K	Type of Control	IP	Color	Foundation
Bocart O Garden Lamp 0,6m 920lm 8W 830 120 Wh Bl Gr Gr IP65 ON/OFF	MI2428497998	120	120	600	8	920	S	80	3000 4000	ON/OFF DIM ON REQUEST	65	WHITE BLACK GRAPHITE GREY	FBO 35/7,5
Bocart O Garden Lamp 1,2m 920lm 8W 830 120 Wh Bl Gr Gr IP65 ON/OFF	MI2417163768	120	120	1200	8	920	S	80	3000 4000	ON/OFF DIM ON REQUEST	65	WHITE BLACK GRAPHITE GREY	FBO 50/7,5
Bocart O Garden Lamp 2m 2100lm 18,5W 830 120 Wh Bl Gr Gr IP65 ON/OFF	MI2483113542	120	120	2000	18,5	2100	S	80	3000 4000	ON/OFF DIM ON REQUEST	65	WHITE BLACK GRAPHITE GREY	FBK 90/18
Bocart O Garden Lamp 2,5m 2100lm 18,5W 830 120 Wh Bl Gr Gr IP65 ON/OFF	MI2459483254	120	120	2500	18,5	2100	S	80	3000 4000	ON/OFF DIM ON REQUEST	65	WHITE BLACK GRAPHITE GREY	FBK 90/18
Bocart O Lantern Lamp 3m 4400lm 40W 830 150 Wh Bl Gr Gr IP65 ON/OFF	MI2471582173	150	150	3000	40	4400	S	80	3000 4000	ON/OFF DIM ON REQUEST	65	WHITE BLACK GRAPHITE GREY	FBK 90/18
Bocart O Lantern Lamp 4m 4400lm 48W 830 150 Wh Bl Gr Gr IP65 ON/OFF	MI2464918939	150	150	4000	48	4400	S	80	3000 4000	ON/OFF DIM ON REQUEST	65	WHITE BLACK GRAPHITE GREY	FBK 90/18
Bocart O Wall 400 960lm 8W 830 120 Wh Bl Gr Gr IP65 ON/OFF	MI2404667385	120	120	300	8	960	S	80	3000 4000	ON/OFF DIM ON REQUEST	65	WHITE BLACK GRAPHITE GREY
Bocart O Wall 900 960lm 8W 830 120 Wh Bl Gr Gr IP65 ON/OFF	MI2451959461	120	120	400	8	960	S	80	3000 4000	ON/OFF DIM ON REQUEST	65	WHITE BLACK GRAPHITE GREY
