CAEL 95 TRANSPARENT 1400lm 19W 940 GR IP44 DALI
Item No. MI101088861
CAEL 95

CAEL 95 TRANSPARENT 1400lm 19W 940 GR IP44 DALI

MI101088861

General data
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRound
TypeDownlight
MountingR
Mounting Opening85
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]19
IEC Protection ClassI
Optics
DiffuserTRANSPARENT
Type of ControlDALI
LED LIFETIME Ta25 [h]L80B10 60.000h
Technical data
Total Consumption [W]19
Lumen Output [LM]1400
Efficacy [lm/W]74
DiffuserTRANSPARENT
Beam Angle [°]43°
Light distributionDIR
CCT [K]4000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
Type of ControlDALI
Housing colorGREY
IP44
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Description:

A small, configurable spotlight – recessed downlight for interior lighting. A wide range of technical parameter and luminaire appearance variants for versatile applications. COB technology and a high-performance, metalized, facetted plastic reflector guarantee the optimum construction of the optical system and a high efficiency.

Key Advantages:

Various optic beam angle versions designed to suit any applications and requirements.

Downloads:
Datasheet:
1
Mounting instructions:
1
Certificates:
1

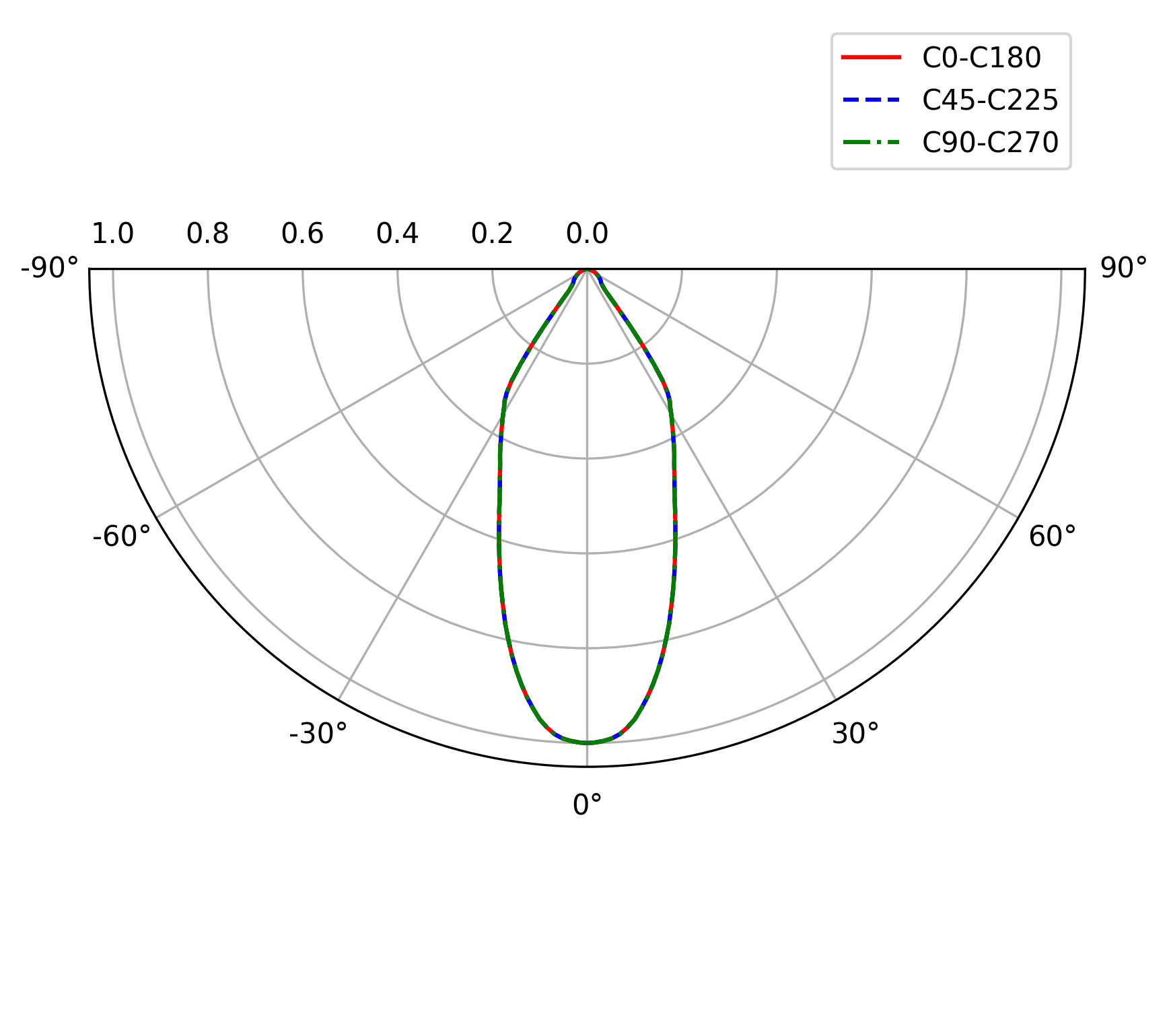

Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/J - MOUNTING/R.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
CAEL 95
General data
Key Advantages

Various optic beam angle versions designed to suit any applications and requirements.

Product ShapeRound
TypeDownlight
MountingR
Mounting Opening85
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]19
IEC Protection ClassI
Optics
DiffuserTRANSPARENT
Type of ControlDALI
LED LIFETIME Ta25 [h]L80B10 60.000h
Technical data
Total Consumption [W]19
Lumen Output [LM]1400
Efficacy [lm/W]74
DiffuserTRANSPARENT
Beam Angle [°]43°
Light distributionDIR
CCT [K]4000
CRI90
MacAdam step3
LED LIFETIME Ta25 [h]L80B10 60.000h
Type of ControlDALI
Housing colorGREY
IP44
Mechanical Protection [IK]01
Main Feed AC [V]220-240
Housing
Housing colorGREY
FinishMatt, Gloss
Light technical data
Light SourceLED
Total Consumption [W]19
Lumen Output [LM]1400
Efficacy [lm/W]74
CCT [K]4000
CRI90
MacAdam step3
Beam Angle [°]43°
Light distributionDIR
Technical data
IP44
Mechanical Protection [IK]01
Generating PDF...

Technical illustrations

CAEL 95
