CHATEAU M
CHATEAU M

General data

Application	Lighting of historical areas and sacred spaces, as well as roads, parking lots, parks, squares..
Product Shape	Round
Type	Garden, Landscape, Street
Mounting	On an arm

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	36, 55, 83
IEC Protection Class	I, on request II

Optics

Diffuser Material	PMMA
TYPE OF CONTROL	ON/OFF, on request DIM
LED LIFETIME Ta25 [h]	L80B20 70 000h

Technical data

Total Consumption [W]	36, 55, 83
Lumen Output [LM]	3460, 5300, 8000
Diffuser Material	PMMA
Body Material	Aluminium
Beam Angle [°]	AS, S, ASW, ASP
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000, on request 2700, 5000
Color Rendering Index [CRI]	80
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B20 70 000h
TYPE OF CONTROL	ON/OFF, on request DIM
Body Color	White, Black, Graphite, Grey
Ingress Protection [IP]	65
Mechanical Protection [IK]	08
Main Feed AC [V]	220-240
Weight [KG]	5.50 kg

Description:

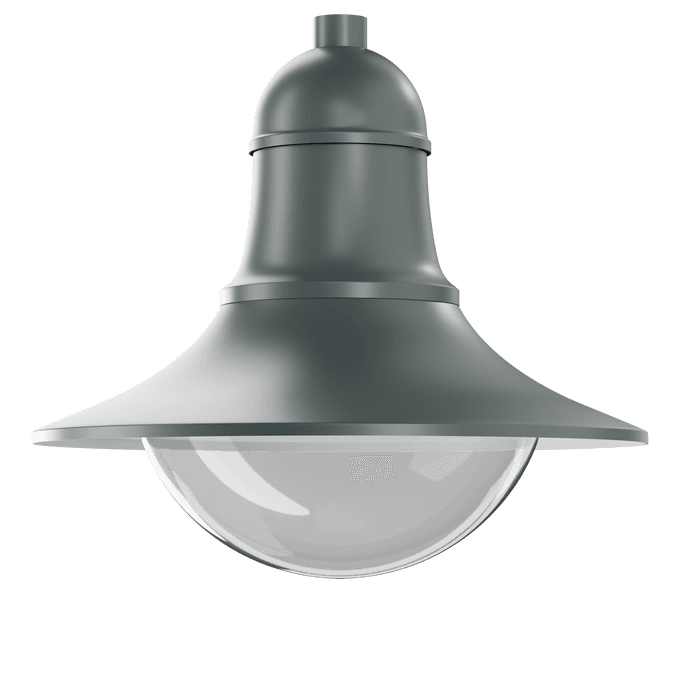

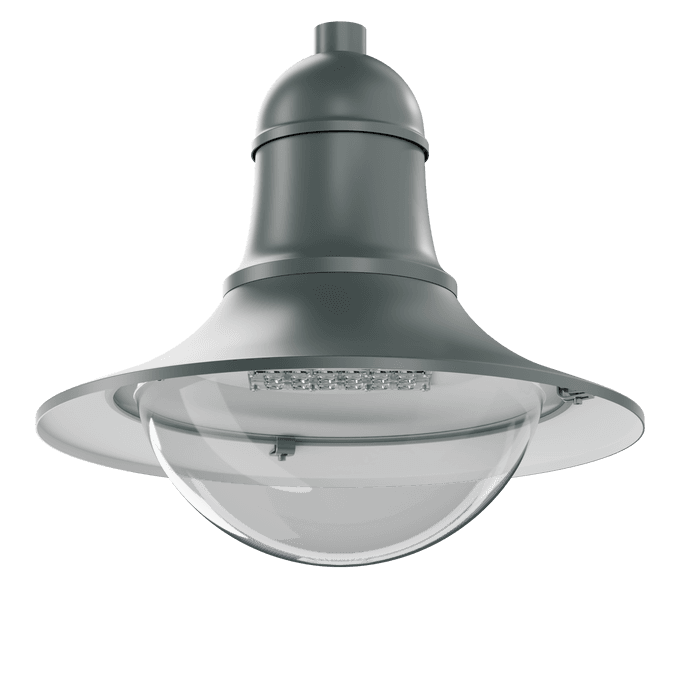

Classic fixture to be arm-mounted, Ø60 mm at a height of 5–7 m. Aluminum body forms a sealed chamber (closed with a plate) with a sealed LED module (with the lens) mounted from the lampshade’s side and a heat-sink and power supply unit – from the inside. The chamber is connected to the upper rosette, which – apart from its decorative function, also serves as a mounting bracket. Lamp-shade made of polycarbonate (PC) or polymethacrylate (PMMA), transparent or ‘frozen’ texture.

Downloads:

Datasheet:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	Lighting of historical areas and sacred spaces, as well as roads, parking lots, parks, squares..
Product Shape	Round
Type	Garden, Landscape, Street
Mounting	On an arm

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	36, 55, 83
IEC Protection Class	I, on request II

Optics

Diffuser Material	PMMA
TYPE OF CONTROL	ON/OFF, on request DIM
LED LIFETIME Ta25 [h]	L80B20 70 000h

Technical data

Total Consumption [W]	36, 55, 83
Lumen Output [LM]	3460, 5300, 8000
Diffuser Material	PMMA
Body Material	Aluminium
Beam Angle [°]	AS, S, ASW, ASP
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000, on request 2700, 5000
Color Rendering Index [CRI]	80
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B20 70 000h
TYPE OF CONTROL	ON/OFF, on request DIM
Body Color	White, Black, Graphite, Grey
Ingress Protection [IP]	65
Mechanical Protection [IK]	08
Main Feed AC [V]	220-240
Weight [KG]	5.50 kg

Housing

Body Material	Aluminium
Body Color	White, Black, Graphite, Grey
RAL	White 9003, Gray 7043, Graphite 7016, Black 9005

Light technical data

Light Source	LED
Total Consumption [W]	36, 55, 83
Lumen Output [LM]	3460, 5300, 8000
LED Color Temperature CCT [K]	3000, 4000, on request 2700, 5000
Color Rendering Index [CRI]	80
MacAdam step	3
Beam Angle [°]	AS, S, ASW, ASP
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-30 to +45
Ingress Protection [IP]	65
Mechanical Protection [IK]	08
Corrosion Class	C3

Dimensions

Weight [KG]	5.50 kg

Variations

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Beam Angle	CRI	Color K	Type of Control	IP	Color
Chateau M 36W LED 3460lm 36W 830 560 Wh Bl Gr Gr IP65 ON/OFF	MI2425540449	560	560	500	36	3460	AS, S, ASW, ASP	80	3000 4000	ON/OFF DIM ON REQUEST	65	WHITE BLACK GRAPHITE GREY
Chateau M 55W LED 5300lm 55W 830 560 Wh Bl Gr Gr IP65 ON/OFF	MI2433642839	560	560	500	55	5300	AS, S, ASW, ASP	80	3000 4000	ON/OFF DIM ON REQUEST	65	WHITE BLACK GRAPHITE GREY
Chateau M 83W LED 8000lm 83W 830 560 Wh Bl Gr Gr IP65 ON/OFF	MI2415913223	560	560	500	83	8000	AS, S, ASW, ASP	80	3000 4000	ON/OFF DIM ON REQUEST	65	WHITE BLACK GRAPHITE GREY
