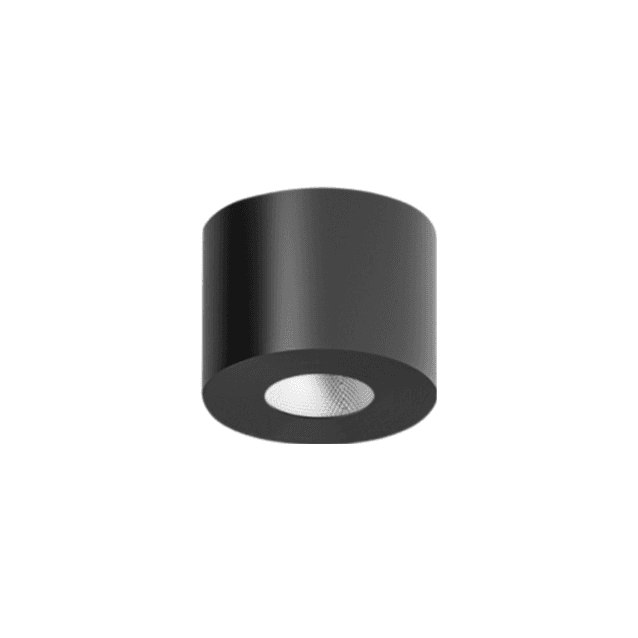

CLARO-N S 110CLARO-N S 110
General data
| Application | Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting. |
|---|---|
| Product Shape | Round |
| Mounting | Surface |
Electrical data
| Main Feed AC [V] | 220-240 |
|---|---|
| Main Feed Frequency [Hz] | 50-60 |
| Total Consumption [W] | 8 – 10 |
| IEC Protection Class | I |
Optics
| Diffuser Material | PC GLASS |
|---|---|
| Diffuser Material Design | PC GLASS |
| TYPE OF CONTROL | ON/OFF, DALI |
| CONTROL SYSTEM | ON/OFF, DALI |
| LED LIFETIME Ta25 [h] | L80B50 50.000h |
Technical data
| Total Consumption [W] | 8 – 10 |
|---|---|
| Lumen Output [LM] | 878 – 1097 |
| Efficacy lm/W | 110 |
| Diffuser Material | PC GLASS |
| Body Material | Aluminium |
| Beam Angle [°] | 24°, 36° |
| Light Distribution DIR/IND | DIR |
| LED Color Temperature CCT [K] | 2700, 3000, 4000 |
| Color Rendering Index [CRI] | 80, 90 |
| MacAdam step | 3 |
| LED LIFETIME Ta25 [h] | L80B50 50.000h |
| TYPE OF CONTROL | ON/OFF, DALI |
| Body Color | WHITE, BLACK, GRAY |
| Ingress Protection [IP] | 44 |
| Mechanical Protection [IK] | 1 |
| Main Feed AC [V] | 220-240 |
| Diameter ø [mm] | 110 |
Description:
The sleek and versatile design of the CLARO-N S surface-mounted luminaire, crafted to bring elegance and functionality to any space. Featuring a compact cylindrical body in a premium finish, the CLARO-N S seamlessly integrates into modern interiors, adding a touch of sophistication.
Engineered with advanced LED technology and a precision-designed glass lens, the CLARO-N S delivers focused, high-quality illumination with excellent energy efficiency. Its durable construction and minimalist aesthetics make it ideal for a variety of applications, including residential, commercial, and hospitality spaces.
Downloads:
Datasheet:
1Technical illustrations:
1Mounting instructions:
1Photometric data:
1Certificates:
1
General data
| Application | Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting. |
|---|---|
| Product Shape | Round |
| Mounting | Surface |
Electrical data
| Main Feed AC [V] | 220-240 |
|---|---|
| Main Feed Frequency [Hz] | 50-60 |
| Total Consumption [W] | 8 – 10 |
| IEC Protection Class | I |
Optics
| Diffuser Material | PC GLASS |
|---|---|
| Diffuser Material Design | PC GLASS |
| TYPE OF CONTROL | ON/OFF, DALI |
| CONTROL SYSTEM | ON/OFF, DALI |
| LED LIFETIME Ta25 [h] | L80B50 50.000h |
Technical data
| Total Consumption [W] | 8 – 10 |
|---|---|
| Lumen Output [LM] | 878 – 1097 |
| Efficacy lm/W | 110 |
| Diffuser Material | PC GLASS |
| Body Material | Aluminium |
| Beam Angle [°] | 24°, 36° |
| Light Distribution DIR/IND | DIR |
| LED Color Temperature CCT [K] | 2700, 3000, 4000 |
| Color Rendering Index [CRI] | 80, 90 |
| MacAdam step | 3 |
| LED LIFETIME Ta25 [h] | L80B50 50.000h |
| TYPE OF CONTROL | ON/OFF, DALI |
| Body Color | WHITE, BLACK, GRAY |
| Ingress Protection [IP] | 44 |
| Mechanical Protection [IK] | 1 |
| Main Feed AC [V] | 220-240 |
| Diameter ø [mm] | 110 |
Housing
| Body Material | Aluminium |
|---|---|
| Body Color | WHITE, BLACK, GRAY |
Light technical data
| Light Source | LED |
|---|---|
| Total Consumption [W] | 8 – 10 |
| Lumen Output [LM] | 878 – 1097 |
| Efficacy lm/W | 110 |
| LED Color Temperature CCT [K] | 2700, 3000, 4000 |
| Color Rendering Index [CRI] | 80, 90 |
| MacAdam step | 3 |
| Beam Angle [°] | 24°, 36° |
| Light Distribution DIR/IND | DIR |
Technical data
| TA [°C] | -20C° / +40C° |
|---|---|
| Ingress Protection [IP] | 44 |
| Mechanical Protection [IK] | 1 |
Dimensions
| Diameter ø [mm] | 110 |
|---|
