CLARO S 130
CLARO S 130

General data
Application

Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingSurface
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]10
IEC Protection ClassI
Optics
Diffuser MaterialPC GLASS
Diffuser Material DesignPC GLASS
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]10
Lumen Output [LM]1108
Efficacy lm/W111
Diffuser MaterialPC GLASS
Body MaterialAluminium
Beam Angle [°]60°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]130
Description:

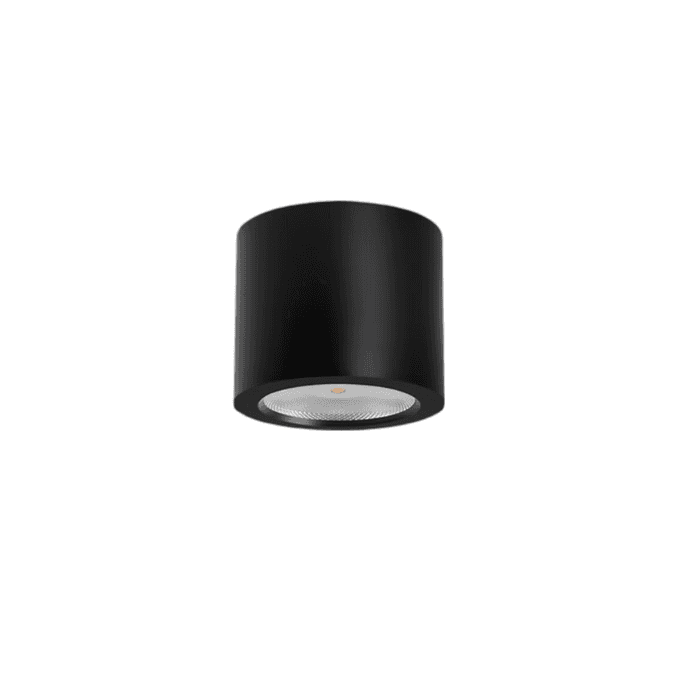

The sleek and versatile design of the CLARO S surface-mounted luminaire, crafted to bring elegance and functionality to any space. Featuring a compact cylindrical body in a premium finish, the CLARO S seamlessly integrates into modern interiors, adding a touch of sophistication.

Engineered with advanced LED technology and a precision-designed glass lens, the CLARO S delivers focused, high-quality illumination with excellent energy efficiency. Its durable construction and minimalist aesthetics make it ideal for a variety of applications, including residential, commercial, and hospitality spaces. Available in six dimensions – ø110mm, ø130mm, ø150mm, ø180mm, ø200mm, ø240mm.

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
General data
Application

Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingSurface
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]10
IEC Protection ClassI
Optics
Diffuser MaterialPC GLASS
Diffuser Material DesignPC GLASS
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]10
Lumen Output [LM]1108
Efficacy lm/W111
Diffuser MaterialPC GLASS
Body MaterialAluminium
Beam Angle [°]60°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]130
Housing
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY
Light technical data
Light SourceLED
Total Consumption [W]10
Lumen Output [LM]1108
Efficacy lm/W111
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]60°
Light Distribution DIR/INDDIR
Technical data
TA [°C]-20C° / +40C°
Ingress Protection [IP]44
Mechanical Protection [IK]1
Dimensions
Diameter ø [mm]130
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
CLARO S PC GLASS 1108lm 10W 830 130 WH IP44 ON/OFFMI4392076100130101108111PC GLASS60°803000ON/OFF44WHITE
CLARO S PC GLASS 1108lm 10W 830 130 BL IP44 ON/OFFMI6713929100130101108111PC GLASS60°803000ON/OFF44BLACK
CLARO S PC GLASS 1108lm 10W 830 130 GR IP44 ON/OFFMI4555399100130101108111PC GLASS60°803000ON/OFF44GREY
CLARO S PC GLASS 1108lm 10W 830 130 WH IP44 DALIMI1641948100130101108111PC GLASS60°803000DALI44WHITE
CLARO S PC GLASS 1108lm 10W 830 130 BL IP44 DALIMI9424792100130101108111PC GLASS60°803000DALI44BLACK
CLARO S PC GLASS 1108lm 10W 830 130 GR IP44 DALIMI7701452100130101108111PC GLASS60°803000DALI44GREY
CLARO S PC GLASS 1108lm 10W 840 130 WH IP44 ON/OFFMI2826250100130101108111PC GLASS60°804000ON/OFF44WHITE
CLARO S PC GLASS 1108lm 10W 840 130 BL IP44 ON/OFFMI4413971100130101108111PC GLASS60°804000ON/OFF44BLACK
CLARO S PC GLASS 1108lm 10W 840 130 GR IP44 ON/OFFMI3275248100130101108111PC GLASS60°804000ON/OFF44GREY
CLARO S PC GLASS 1108lm 10W 840 130 WH IP44 DALIMI6181017100130101108111PC GLASS60°804000DALI44WHITE
CLARO S PC GLASS 1108lm 10W 840 130 BL IP44 DALIMI3687782100130101108111PC GLASS60°804000DALI44BLACK
CLARO S PC GLASS 1108lm 10W 840 130 GR IP44 DALIMI9923549100130101108111PC GLASS60°804000DALI44GREY
CLARO S PC GLASS 1108lm 10W 930 130 WH IP44 ON/OFFMI1160587100130101108111PC GLASS60°903000ON/OFF44WHITE
CLARO S PC GLASS 1108lm 10W 930 130 BL IP44 ON/OFFMI2523960100130101108111PC GLASS60°903000ON/OFF44BLACK
CLARO S PC GLASS 1108lm 10W 930 130 GR IP44 ON/OFFMI2653202100130101108111PC GLASS60°903000ON/OFF44GREY
CLARO S PC GLASS 1108lm 10W 930 130 WH IP44 DALIMI8847921100130101108111PC GLASS60°903000DALI44WHITE
CLARO S PC GLASS 1108lm 10W 930 130 BL IP44 DALIMI8535991100130101108111PC GLASS60°903000DALI44BLACK
CLARO S PC GLASS 1108lm 10W 930 130 GR IP44 DALIMI7818686100130101108111PC GLASS60°903000DALI44GREY
CLARO S PC GLASS 1108lm 10W 940 130 WH IP44 ON/OFFMI9883742100130101108111PC GLASS60°904000ON/OFF44WHITE
CLARO S PC GLASS 1108lm 10W 940 130 BL IP44 ON/OFFMI1103696100130101108111PC GLASS60°904000ON/OFF44BLACK
CLARO S PC GLASS 1108lm 10W 940 130 GR IP44 ON/OFFMI7937333100130101108111PC GLASS60°904000ON/OFF44GREY
CLARO S PC GLASS 1108lm 10W 940 130 WH IP44 DALIMI7985371100130101108111PC GLASS60°904000DALI44WHITE
CLARO S PC GLASS 1108lm 10W 940 130 BL IP44 DALIMI6773400100130101108111PC GLASS60°904000DALI44BLACK
CLARO S PC GLASS 1108lm 10W 940 130 GR IP44 DALIMI9310036100130101108111PC GLASS60°904000DALI44GREY
