CLARO S 150
CLARO S 150

General data
Application

Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingSurface
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]15
IEC Protection ClassI
Optics
Diffuser MaterialPC GLASS
Diffuser Material DesignPC GLASS
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]15
Lumen Output [LM]1662
Efficacy lm/W111
Diffuser MaterialPC GLASS
Body MaterialAluminium
Beam Angle [°]60°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]150
Description:

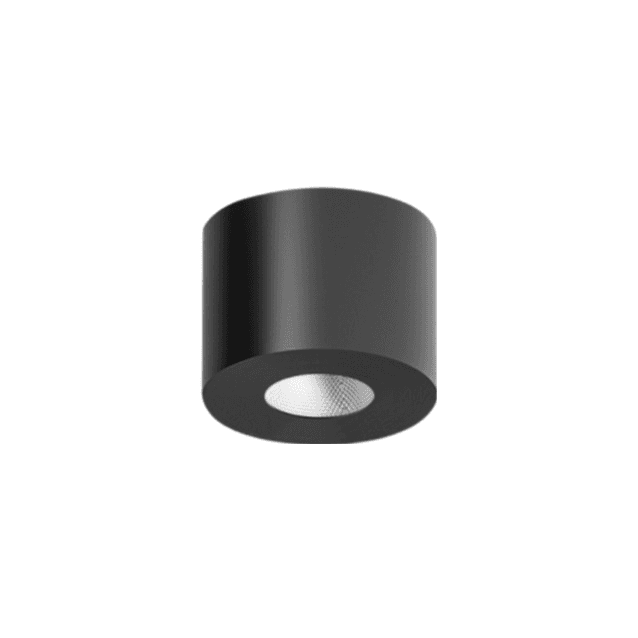

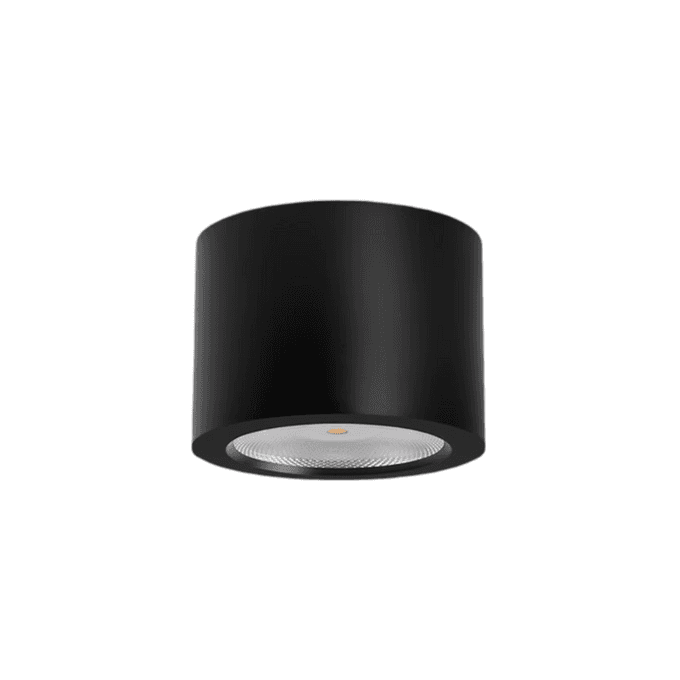

The sleek and versatile design of the CLARO S surface-mounted luminaire, crafted to bring elegance and functionality to any space. Featuring a compact cylindrical body in a premium finish, the CLARO S seamlessly integrates into modern interiors, adding a touch of sophistication.

Engineered with advanced LED technology and a precision-designed glass lens, the CLARO S delivers focused, high-quality illumination with excellent energy efficiency. Its durable construction and minimalist aesthetics make it ideal for a variety of applications, including residential, commercial, and hospitality spaces. Available in six dimensions – ø110mm, ø130mm, ø150mm, ø180mm, ø200mm, ø240mm.

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
General data
Application

Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingSurface
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]15
IEC Protection ClassI
Optics
Diffuser MaterialPC GLASS
Diffuser Material DesignPC GLASS
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]15
Lumen Output [LM]1662
Efficacy lm/W111
Diffuser MaterialPC GLASS
Body MaterialAluminium
Beam Angle [°]60°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]150
Housing
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY
Light technical data
Light SourceLED
Total Consumption [W]15
Lumen Output [LM]1662
Efficacy lm/W111
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]60°
Light Distribution DIR/INDDIR
Technical data
TA [°C]-20C° / +40C°
Ingress Protection [IP]44
Mechanical Protection [IK]1
Dimensions
Diameter ø [mm]150
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
CLARO S PC GLASS 1662lm 15W 830 150 WH IP44 ON/OFFMI2971584100150151662111PC GLASS60°803000ON/OFF44WHITE
CLARO S PC GLASS 1662lm 15W 830 150 BL IP44 ON/OFFMI2867555100150151662111PC GLASS60°803000ON/OFF44BLACK
CLARO S PC GLASS 1662lm 15W 830 150 GR IP44 ON/OFFMI5773296100150151662111PC GLASS60°803000ON/OFF44GREY
CLARO S PC GLASS 1662lm 15W 830 150 WH IP44 DALIMI6900146100150151662111PC GLASS60°803000DALI44WHITE
CLARO S PC GLASS 1662lm 15W 830 150 BL IP44 DALIMI7904882100150151662111PC GLASS60°803000DALI44BLACK
CLARO S PC GLASS 1662lm 15W 830 150 GR IP44 DALIMI1937896100150151662111PC GLASS60°803000DALI44GREY
CLARO S PC GLASS 1662lm 15W 840 150 WH IP44 ON/OFFMI7758364100150151662111PC GLASS60°804000ON/OFF44WHITE
CLARO S PC GLASS 1662lm 15W 840 150 BL IP44 ON/OFFMI7371440100150151662111PC GLASS60°804000ON/OFF44BLACK
CLARO S PC GLASS 1662lm 15W 840 150 GR IP44 ON/OFFMI5614522100150151662111PC GLASS60°804000ON/OFF44GREY
CLARO S PC GLASS 1662lm 15W 840 150 WH IP44 DALIMI2698528100150151662111PC GLASS60°804000DALI44WHITE
CLARO S PC GLASS 1662lm 15W 840 150 BL IP44 DALIMI1293204100150151662111PC GLASS60°804000DALI44BLACK
CLARO S PC GLASS 1662lm 15W 840 150 GR IP44 DALIMI7054016100150151662111PC GLASS60°804000DALI44GREY
CLARO S PC GLASS 1662lm 15W 930 150 WH IP44 ON/OFFMI8613178100150151662111PC GLASS60°903000ON/OFF44WHITE
CLARO S PC GLASS 1662lm 15W 930 150 BL IP44 ON/OFFMI2465261100150151662111PC GLASS60°903000ON/OFF44BLACK
CLARO S PC GLASS 1662lm 15W 930 150 GR IP44 ON/OFFMI7393239100150151662111PC GLASS60°903000ON/OFF44GREY
CLARO S PC GLASS 1662lm 15W 930 150 WH IP44 DALIMI2585589100150151662111PC GLASS60°903000DALI44WHITE
CLARO S PC GLASS 1662lm 15W 930 150 BL IP44 DALIMI2853817100150151662111PC GLASS60°903000DALI44BLACK
CLARO S PC GLASS 1662lm 15W 930 150 GR IP44 DALIMI3716465100150151662111PC GLASS60°903000DALI44GREY
CLARO S PC GLASS 1662lm 15W 940 150 WH IP44 ON/OFFMI2332849100150151662111PC GLASS60°904000ON/OFF44WHITE
CLARO S PC GLASS 1662lm 15W 940 150 BL IP44 ON/OFFMI1431004100150151662111PC GLASS60°904000ON/OFF44BLACK
CLARO S PC GLASS 1662lm 15W 940 150 GR IP44 ON/OFFMI5730807100150151662111PC GLASS60°904000ON/OFF44GREY
CLARO S PC GLASS 1662lm 15W 940 150 WH IP44 DALIMI972095100150151662111PC GLASS60°904000DALI44WHITE
CLARO S PC GLASS 1662lm 15W 940 150 BL IP44 DALIMI2373161100150151662111PC GLASS60°904000DALI44BLACK
CLARO S PC GLASS 1662lm 15W 940 150 GR IP44 DALIMI8102830100150151662111PC GLASS60°904000DALI44GREY
