CLARO S 240
CLARO S 240

General data
Application

Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingSurface
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]30
IEC Protection ClassI
Optics
Diffuser MaterialPC GLASS
Diffuser Material DesignPC GLASS
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]30
Lumen Output [LM]3324
Efficacy lm/W111
Diffuser MaterialPC GLASS
Body MaterialAluminium
Beam Angle [°]60°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]240
Description:

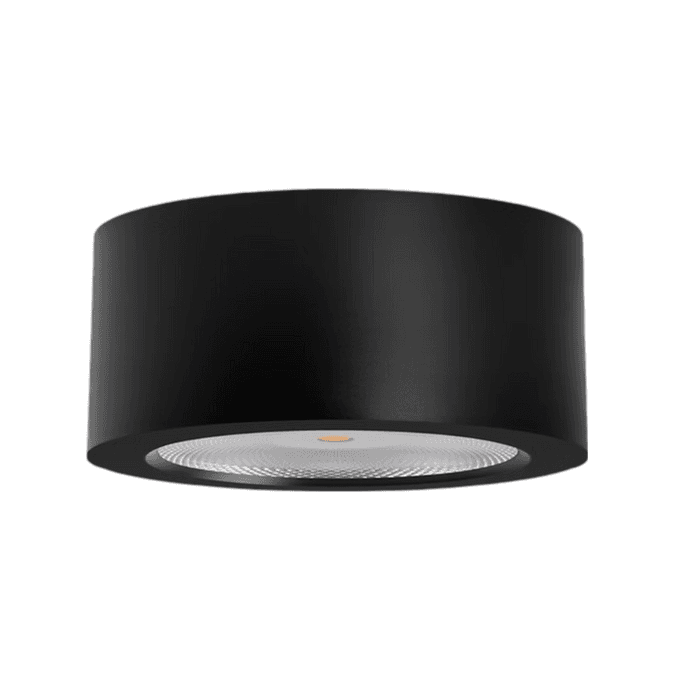

The sleek and versatile design of the CLARO S surface-mounted luminaire, crafted to bring elegance and functionality to any space. Featuring a compact cylindrical body in a premium finish, the CLARO S seamlessly integrates into modern interiors, adding a touch of sophistication.

Engineered with advanced LED technology and a precision-designed glass lens, the CLARO S delivers focused, high-quality illumination with excellent energy efficiency. Its durable construction and minimalist aesthetics make it ideal for a variety of applications, including residential, commercial, and hospitality spaces. Available in six dimensions – ø110mm, ø130mm, ø150mm, ø180mm, ø200mm, ø240mm.

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/DALI.svg
/soft4net/img/project/icons/AB - TYPE OF CONTROL/ON_OFF.svg
/soft4net/img/project/icons/AD - IP/44.svg
/soft4net/img/project/icons/W - HOUSING COLOR/BLACK.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/W - HOUSING COLOR/WHITE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_90.svg
General data
Application

Ideal for residential spaces, offices and commercial areas, retails and showrooms, restaurants, hotels, public spaces and as accent lighting.

Product ShapeRound
MountingSurface
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]30
IEC Protection ClassI
Optics
Diffuser MaterialPC GLASS
Diffuser Material DesignPC GLASS
TYPE OF CONTROLON/OFF, DALI
CONTROL SYSTEMON/OFF, DALI
LED LIFETIME Ta25 [h]L80B50 50.000h
Technical data
Total Consumption [W]30
Lumen Output [LM]3324
Efficacy lm/W111
Diffuser MaterialPC GLASS
Body MaterialAluminium
Beam Angle [°]60°
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 50.000h
TYPE OF CONTROLON/OFF, DALI
Body ColorWHITE, BLACK, GRAY
Ingress Protection [IP]44
Mechanical Protection [IK]1
Main Feed AC [V]220-240
Diameter ø [mm]240
Housing
Body MaterialAluminium
Body ColorWHITE, BLACK, GRAY
Light technical data
Light SourceLED
Total Consumption [W]30
Lumen Output [LM]3324
Efficacy lm/W111
LED Color Temperature CCT [K]3000, 4000
Color Rendering Index [CRI]80, 90
MacAdam step3
Beam Angle [°]60°
Light Distribution DIR/INDDIR
Technical data
TA [°C]-20C° / +40C°
Ingress Protection [IP]44
Mechanical Protection [IK]1
Dimensions
Diameter ø [mm]240
Generating PDF...

Variations

Item
Code
Lenght
Width
Height
Diameter
W
Lumen
Output lm
Efficacy
lm/W
Diffuser
Beam
Angle
CRI
Color K
Type of
Control
IP
Color
CLARO S PC GLASS 3324lm 30W 830 240 WH IP44 ON/OFFMI7051750100240303324111PC GLASS60°803000ON/OFF44WHITE
CLARO S PC GLASS 3324lm 30W 830 240 BL IP44 ON/OFFMI7561084100240303324111PC GLASS60°803000ON/OFF44BLACK
CLARO S PC GLASS 3324lm 30W 830 240 GR IP44 ON/OFFMI3601534100240303324111PC GLASS60°803000ON/OFF44GREY
CLARO S PC GLASS 3324lm 30W 830 240 WH IP44 DALIMI3994640100240303324111PC GLASS60°803000DALI44WHITE
CLARO S PC GLASS 3324lm 30W 830 240 BL IP44 DALIMI1145797100240303324111PC GLASS60°803000DALI44BLACK
CLARO S PC GLASS 3324lm 30W 830 240 GR IP44 DALIMI5589401100240303324111PC GLASS60°803000DALI44GREY
CLARO S PC GLASS 3324lm 30W 840 240 WH IP44 ON/OFFMI9730370100240303324111PC GLASS60°804000ON/OFF44WHITE
CLARO S PC GLASS 3324lm 30W 840 240 BL IP44 ON/OFFMI4386620100240303324111PC GLASS60°804000ON/OFF44BLACK
CLARO S PC GLASS 3324lm 30W 840 240 GR IP44 ON/OFFMI5490712100240303324111PC GLASS60°804000ON/OFF44GREY
CLARO S PC GLASS 3324lm 30W 840 240 WH IP44 DALIMI4400588100240303324111PC GLASS60°804000DALI44WHITE
CLARO S PC GLASS 3324lm 30W 840 240 BL IP44 DALIMI7842443100240303324111PC GLASS60°804000DALI44BLACK
CLARO S PC GLASS 3324lm 30W 840 240 GR IP44 DALIMI2085791100240303324111PC GLASS60°804000DALI44GREY
CLARO S PC GLASS 3324lm 30W 930 240 WH IP44 ON/OFFMI7144136100240303324111PC GLASS60°903000ON/OFF44WHITE
CLARO S PC GLASS 3324lm 30W 930 240 BL IP44 ON/OFFMI3487436100240303324111PC GLASS60°903000ON/OFF44BLACK
CLARO S PC GLASS 3324lm 30W 930 240 GR IP44 ON/OFFMI8621562100240303324111PC GLASS60°903000ON/OFF44GREY
CLARO S PC GLASS 3324lm 30W 930 240 WH IP44 DALIMI8518031100240303324111PC GLASS60°903000DALI44WHITE
CLARO S PC GLASS 3324lm 30W 930 240 BL IP44 DALIMI3194062100240303324111PC GLASS60°903000DALI44BLACK
CLARO S PC GLASS 3324lm 30W 930 240 GR IP44 DALIMI6016790100240303324111PC GLASS60°903000DALI44GREY
CLARO S PC GLASS 3324lm 30W 940 240 WH IP44 ON/OFFMI7473954100240303324111PC GLASS60°904000ON/OFF44WHITE
CLARO S PC GLASS 3324lm 30W 940 240 BL IP44 ON/OFFMI8488340100240303324111PC GLASS60°904000ON/OFF44BLACK
CLARO S PC GLASS 3324lm 30W 940 240 GR IP44 ON/OFFMI968491100240303324111PC GLASS60°904000ON/OFF44GREY
CLARO S PC GLASS 3324lm 30W 940 240 WH IP44 DALIMI6126022100240303324111PC GLASS60°904000DALI44WHITE
CLARO S PC GLASS 3324lm 30W 940 240 BL IP44 DALIMI5866927100240303324111PC GLASS60°904000DALI44BLACK
CLARO S PC GLASS 3324lm 30W 940 240 GR IP44 DALIMI3173476100240303324111PC GLASS60°904000DALI44GREY
