CLUB C1
CLUB C1

General data
Application

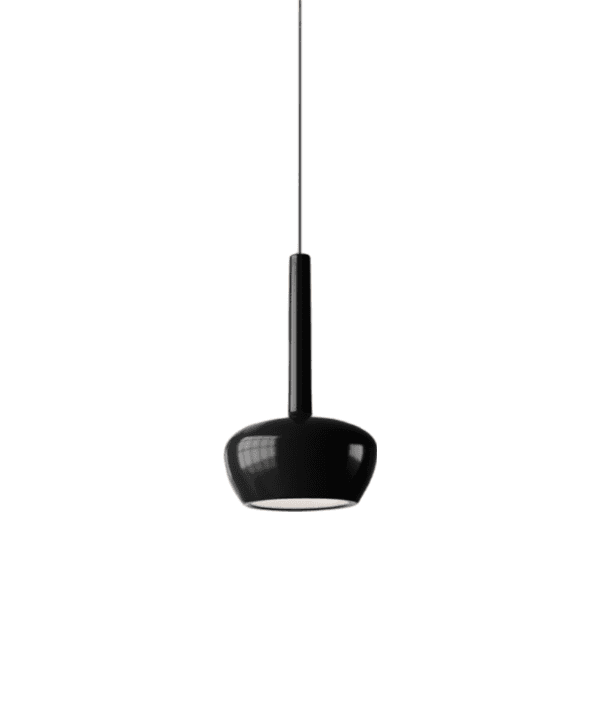

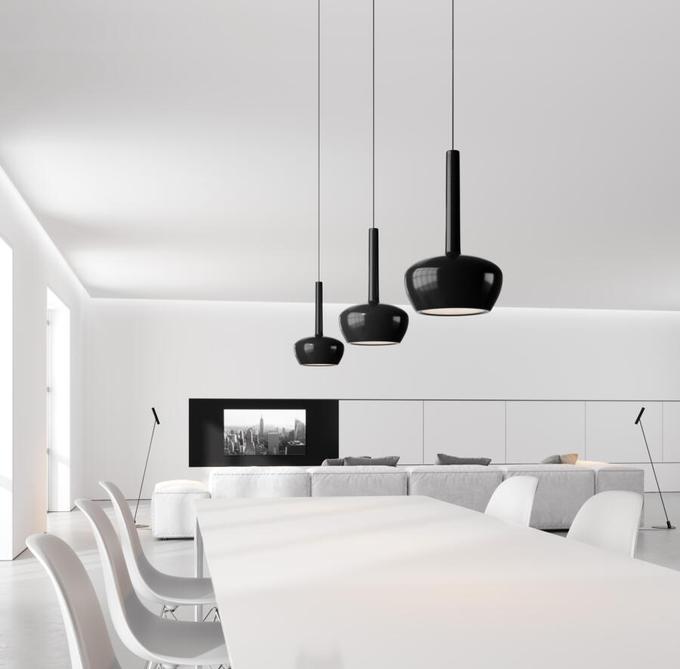

Glass dome decorative pendant luminaire suitable for mounting in any luxurious interior, residental, retail, office/conference rooms.

Product ShapeOval
TypeDecorative
Electrical data
Main Feed AC [V]220-240
Total Consumption [W]9
Optics
Diffuser MaterialEcofriendly ceramic material
TYPE OF CONTROLON/OFF
CONTROL SYSTEMON/OFF - driver included
Technical data
Total Consumption [W]9
Lumen Output [LM]1008, 1066
Diffuser MaterialEcofriendly ceramic material
Beam Angle [°]60
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]2700, 3000
Color Rendering Index [CRI]90
MacAdam step3
TYPE OF CONTROLON/OFF
Body ColorCode 02: black painted , Code 06: white painted, * wiring always in black color (max 250mm)
Ingress Protection [IP]20
Main Feed AC [V]220-240
Diameter ø [mm]20
Description:

Completely hand made in Tuscany, Club is a lamp composed of an ecofriendly ceramic material, entirely recyclable. External canopy for installation on all ceilings.

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/2700_90.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_90.svg
General data
Application

Glass dome decorative pendant luminaire suitable for mounting in any luxurious interior, residental, retail, office/conference rooms.

Product ShapeOval
TypeDecorative
Electrical data
Main Feed AC [V]220-240
Total Consumption [W]9
Optics
Diffuser MaterialEcofriendly ceramic material
TYPE OF CONTROLON/OFF
CONTROL SYSTEMON/OFF - driver included
Technical data
Total Consumption [W]9
Lumen Output [LM]1008, 1066
Diffuser MaterialEcofriendly ceramic material
Beam Angle [°]60
Light Distribution DIR/INDDIR
LED Color Temperature CCT [K]2700, 3000
Color Rendering Index [CRI]90
MacAdam step3
TYPE OF CONTROLON/OFF
Body ColorCode 02: black painted , Code 06: white painted, * wiring always in black color (max 250mm)
Ingress Protection [IP]20
Main Feed AC [V]220-240
Diameter ø [mm]20
Housing
Body ColorCode 02: black painted , Code 06: white painted, * wiring always in black color (max 250mm)
Light technical data
Light SourceLED
Total Consumption [W]9
Lumen Output [LM]1008, 1066
LED Color Temperature CCT [K]2700, 3000
Color Rendering Index [CRI]90
MacAdam step3
Beam Angle [°]60
Light Distribution DIR/INDDIR
Technical data
TA [°C]0 to +35
Ingress Protection [IP]20

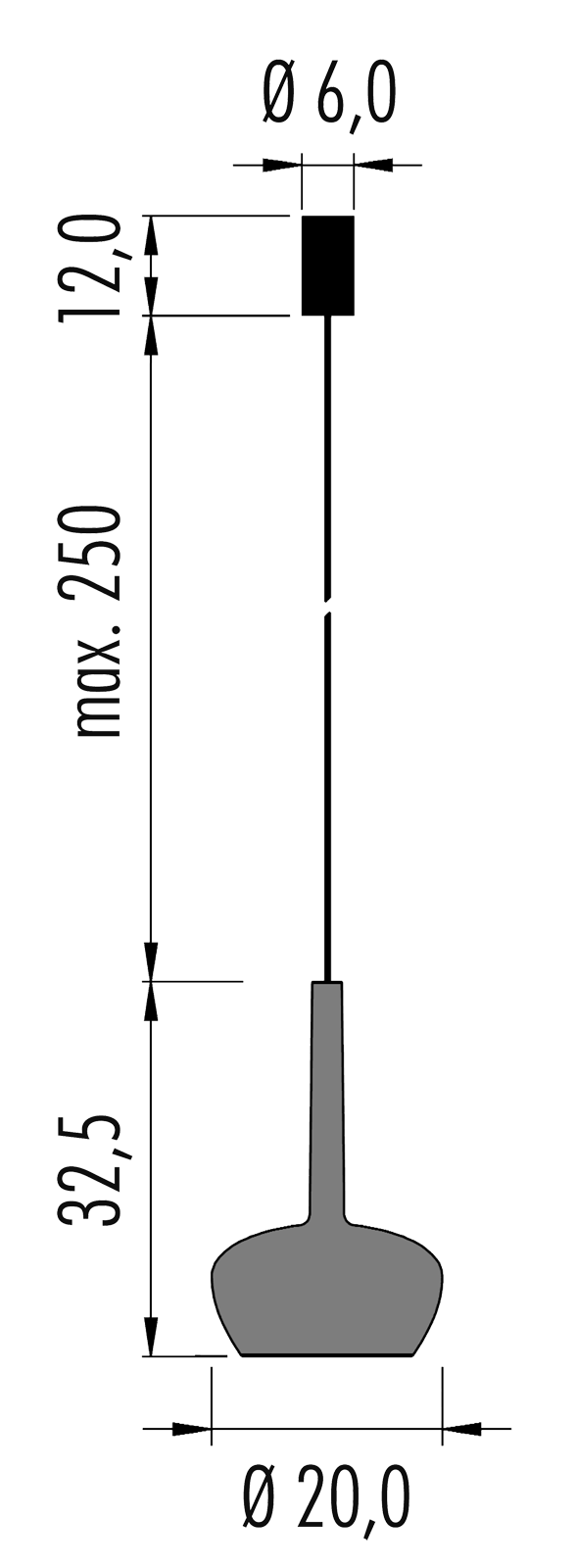

Dimensions
Diameter ø [mm]20
