DECCO S
DECCO S

General data

Application	Lighting of historic and sacred spaces, as well as parks, squares..
Product Shape	Round
Type	Garden, Landscape, Street
Mounting	On an arm

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	30, 36, 60, 90
IEC Protection Class	I, on request II

Optics

Diffuser Material	PMMA
TYPE OF CONTROL	ON/OFF, on request DIM
LED LIFETIME Ta25 [h]	L80B20 70 000h

Technical data

Total Consumption [W]	30, 36, 60, 90
Lumen Output [LM]	3300, 4200, 7000, 10500
Diffuser Material	PMMA
Body Material	Aluminium
Beam Angle [°]	AS, S, ASW, ASP
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000, on request 2700, 5000
Color Rendering Index [CRI]	80
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B20 70 000h
TYPE OF CONTROL	ON/OFF, on request DIM
Body Color	White, Black, Graphite, Grey
Ingress Protection [IP]	65
Mechanical Protection [IK]	08
Main Feed AC [V]	220-240
Weight [KG]	5.00 kg, 5.50 kg

Description:

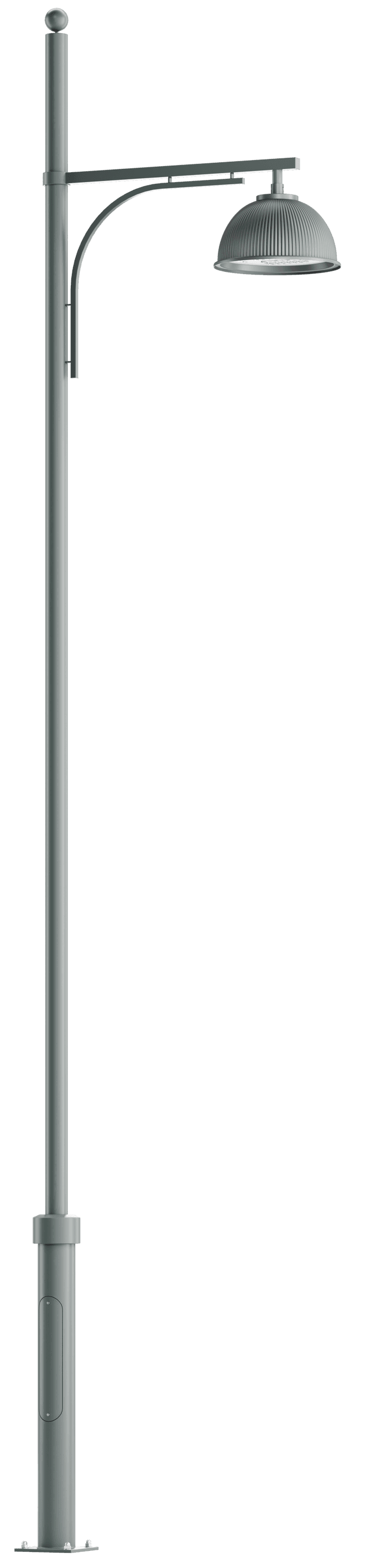

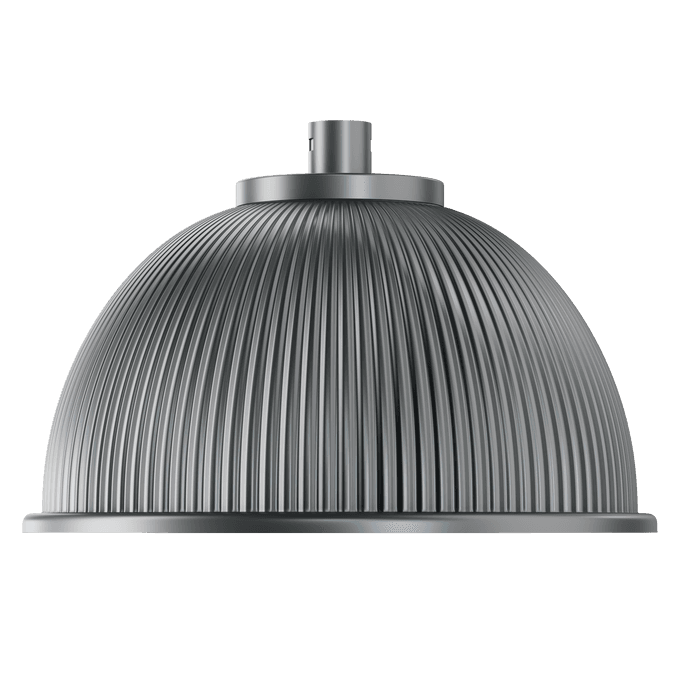

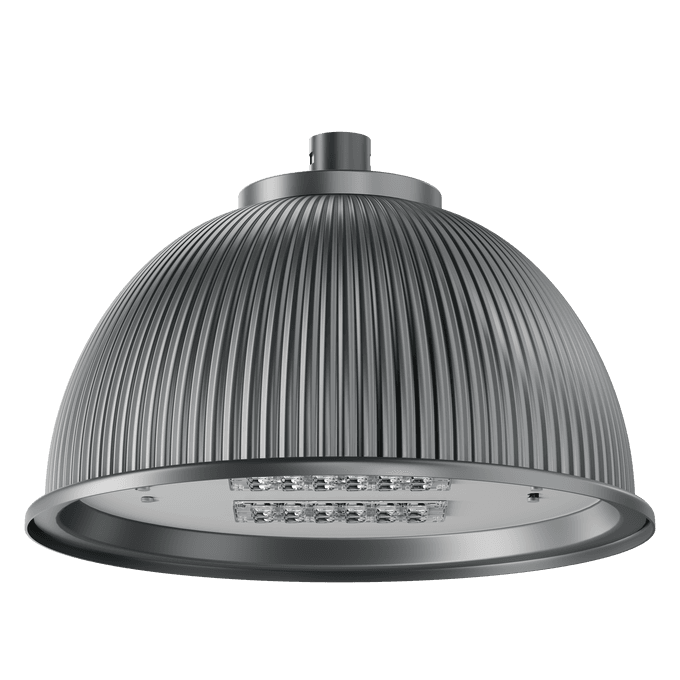

Classic arm mount luminaire, Ø60 mm at a height of 5-8 m. The aluminium body is a sealed chamber, enclosed by a plate on which a sealed LED module with lenses of selected optics is mounted on the glass side, and a heat sink and power supply on the inside. The chamber is connected to a top rosette, which, in addition to its decorative function, serves as a mounting bracket. Transparent or frosted glass glazing.

Downloads:

Datasheet:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	Lighting of historic and sacred spaces, as well as parks, squares..
Product Shape	Round
Type	Garden, Landscape, Street
Mounting	On an arm

Electrical data

Main Feed AC [V]	220-240
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	30, 36, 60, 90
IEC Protection Class	I, on request II

Optics

Diffuser Material	PMMA
TYPE OF CONTROL	ON/OFF, on request DIM
LED LIFETIME Ta25 [h]	L80B20 70 000h

Technical data

Total Consumption [W]	30, 36, 60, 90
Lumen Output [LM]	3300, 4200, 7000, 10500
Diffuser Material	PMMA
Body Material	Aluminium
Beam Angle [°]	AS, S, ASW, ASP
Light Distribution DIR/IND	DIR
LED Color Temperature CCT [K]	3000, 4000, on request 2700, 5000
Color Rendering Index [CRI]	80
MacAdam step	3
LED LIFETIME Ta25 [h]	L80B20 70 000h
TYPE OF CONTROL	ON/OFF, on request DIM
Body Color	White, Black, Graphite, Grey
Ingress Protection [IP]	65
Mechanical Protection [IK]	08
Main Feed AC [V]	220-240
Weight [KG]	5.00 kg, 5.50 kg

Housing

Body Material	Aluminium
Body Color	White, Black, Graphite, Grey
RAL	White 9003, Gray 7043, Graphite 7016, Black 9005

Light technical data

Light Source	LED
Total Consumption [W]	30, 36, 60, 90
Lumen Output [LM]	3300, 4200, 7000, 10500
LED Color Temperature CCT [K]	3000, 4000, on request 2700, 5000
Color Rendering Index [CRI]	80
MacAdam step	3
Beam Angle [°]	AS, S, ASW, ASP
Light Distribution DIR/IND	DIR

Technical data

TA [°C]	-30 to +45
Ingress Protection [IP]	65
Mechanical Protection [IK]	08
Corrosion Class	C3

Dimensions

Weight [KG]	5.00 kg, 5.50 kg

Variations

Item	Code	Lenght	Width	Height	W	Lumen Output lm	Beam Angle	CRI	Color K	Type of Control	IP	Color
Decco S 30W LED 3300lm 30W 830 50 Wh Bl Gr Gr IP65 ON/OFF	MI2485003493	50	50	300	30	3300	AS, S, ASW, ASP	80	3000 4000	ON/OFF DIM ON REQUEST	65	WHITE BLACK GRAPHITE GREY
Decco S 36W LED 4200lm 36W 830 50 Wh Bl Gr Gr IP65 ON/OFF	MI2457006525	50	50	300	36	4200	AS, S, ASW, ASP	80	3000 4000	ON/OFF DIM ON REQUEST	65	WHITE BLACK GRAPHITE GREY
Decco S 60W LED 7000lm 60W 830 50 Wh Bl Gr Gr IP65 ON/OFF	MI2423687880	50	50	300	60	7000	AS, S, ASW, ASP	80	3000 4000	ON/OFF DIM ON REQUEST	65	WHITE BLACK GRAPHITE GREY
Decco S 90W LED 10500lm 90W 830 50 Wh Bl Gr Gr IP65 ON/OFF	MI2442324871	50	50	300	90	10500	AS, S, ASW, ASP	80	3000 4000	ON/OFF DIM ON REQUEST	65	WHITE BLACK GRAPHITE GREY
