DIU SURFACE OPAL 1500lm 16W 840 1244 GR IP20 ON/OFF
Item No. MI114355866
DIU SURFACE

DIU SURFACE OPAL 1500lm 16W 840 1244 GR IP20 ON/OFF

MI114355866

General data
Key Advantages

Various optics versions designed to suit any applications and requirements: OPAL ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Product ShapeLinear, Rectangular
MountingS
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]16
IEC Protection ClassI
Optics
DiffuserOPAL
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L80B50 100.000h
Technical data
Total Consumption [W]16
Lumen Output [LM]1500
Efficacy [lm/W]94
DiffuserOPAL
Beam Angle [°]90°
Light distributionDIR
CCT [K]4000
CRI80
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 100.000h
Type of ControlON/OFF
Housing colorGREY
IP20
Mechanical Protection [IK]07
Main Feed AC [V]220-240
Dimensions (length, width, height)1244 x 58 x 83 mm [LxWxH]
Description:

PROLINE family is an elegant and timeless linear system that allows to create captivating arrangements in any interior. It’s modern design and simple construction make it a great choice for general as well as decorative lighting in any interiors from residential to any public areas.

Key Advantages:

Various optics versions designed to suit any applications and requirements: OPAL ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Downloads:
Datasheet:
1
Mounting instructions:
1
Certificates:
1

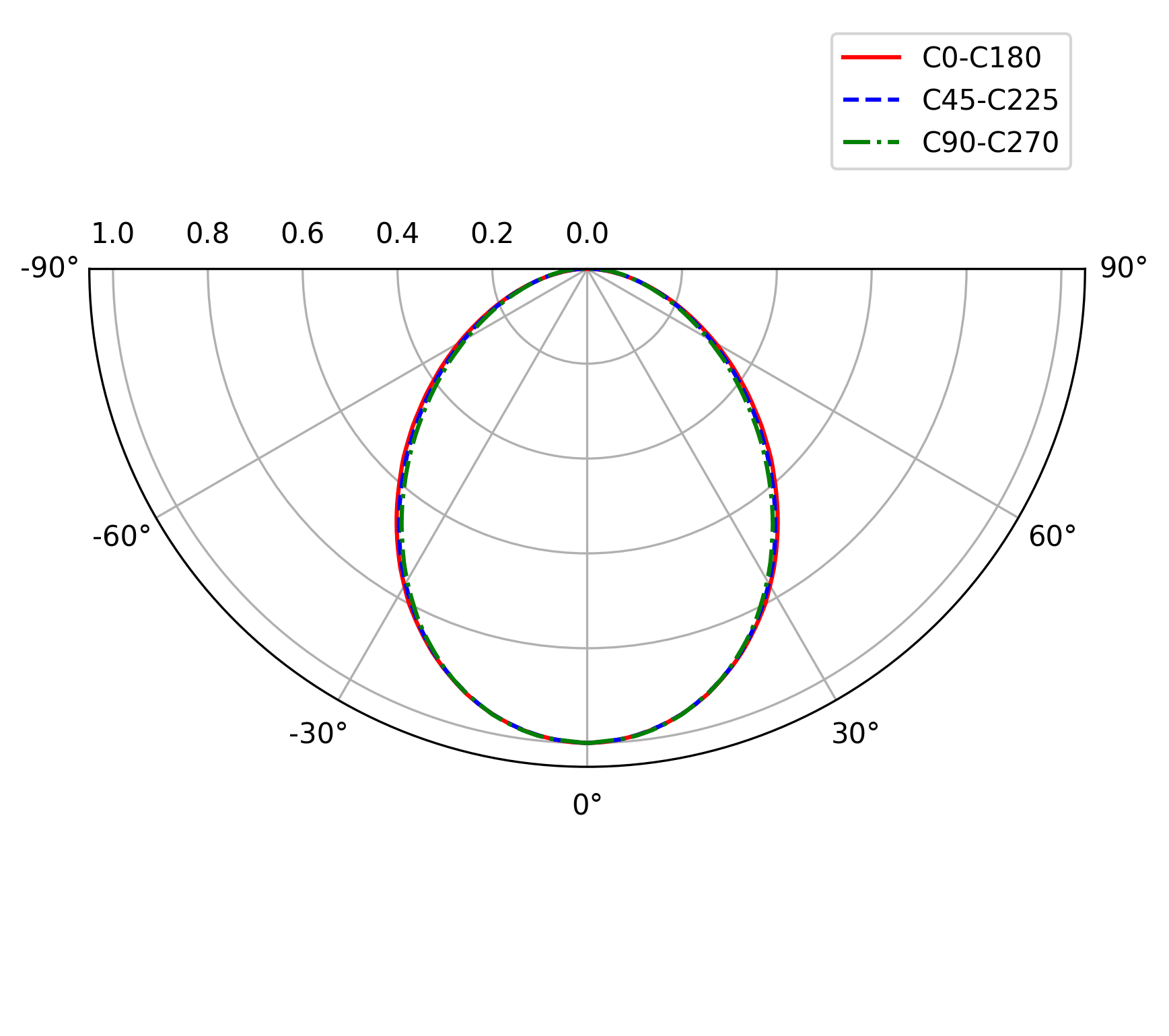

Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/20.svg
/soft4net/img/project/icons/J - MOUNTING/S.svg
/soft4net/img/project/icons/W - HOUSING COLOR/GREY.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/4000_80.svg
DIU SURFACE
General data
Key Advantages

Various optics versions designed to suit any applications and requirements: OPAL ensuring highest performance, comfort, light uniformity and glare-eliminating reflectors.

Product ShapeLinear, Rectangular
MountingS
Electrical data
Main Feed AC [V]220-240
Main Feed Frequency [Hz]50-60
Total Consumption [W]16
IEC Protection ClassI
Optics
DiffuserOPAL
Type of ControlON/OFF
LED LIFETIME Ta25 [h]L80B50 100.000h
Technical data
Total Consumption [W]16
Lumen Output [LM]1500
Efficacy [lm/W]94
DiffuserOPAL
Beam Angle [°]90°
Light distributionDIR
CCT [K]4000
CRI80
MacAdam step3
LED LIFETIME Ta25 [h]L80B50 100.000h
Type of ControlON/OFF
Housing colorGREY
IP20
Mechanical Protection [IK]07
Main Feed AC [V]220-240
Dimensions (length, width, height)1244 x 58 x 83 mm [LxWxH]
Housing
Housing colorGREY
RALAny upon request
FinishMatt, Gloss
Light technical data
Light SourcePCB LED
Total Consumption [W]16
Lumen Output [LM]1500
Efficacy [lm/W]94
CCT [K]4000
CRI80
UGR<19
MacAdam step3
Beam Angle [°]90°
Light distributionDIR
Technical data
IP20
Mechanical Protection [IK]07
Corrosion ClassC3
Dimensions
Dimensions (length, width, height)1244 x 58 x 83 mm [LxWxH]
Generating PDF...

Technical illustrations

DIU SURFACE
