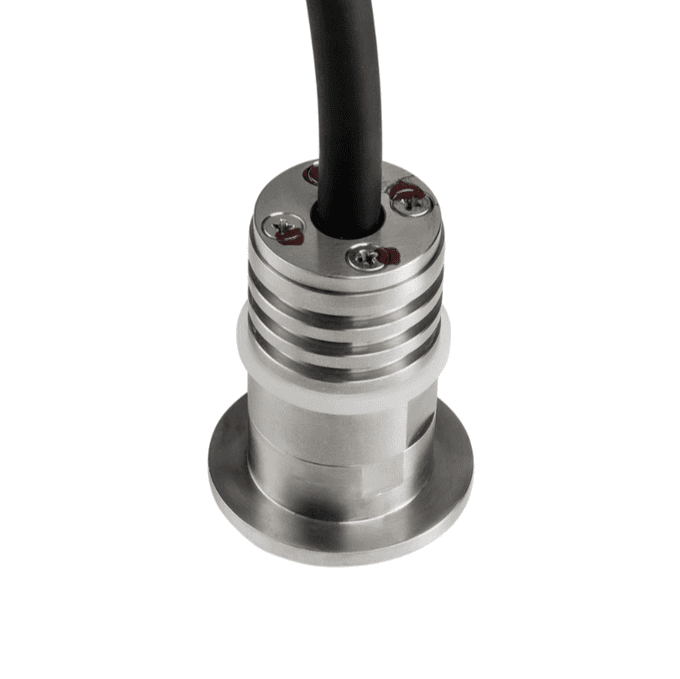

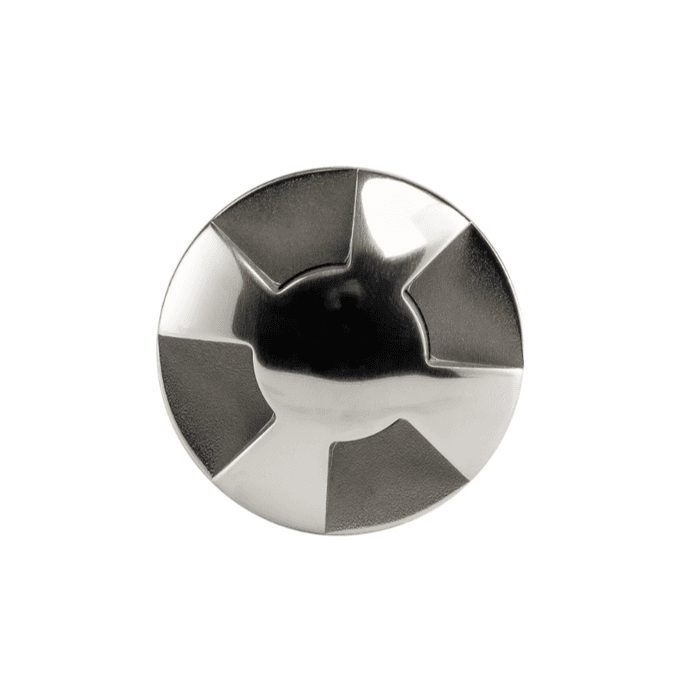

ECLIP MICRO 12/24VDC
ECLIP MICRO 12/24VDC

General data

Application	Plots
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	In-ground

Electrical data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	2
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 2X1.5

Optics

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technical data

Total Consumption [W]	2
Lumen Output [LM]	45
Efficacy lm/W	22.5
Diffuser Material	Tempered glass
Body Material	SS316L
Beam Angle [°]	360
Light Distribution DIR/IND	4xIND
LED Color Temperature CCT [K]	2200, 2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	40.3

Description:

ECLIP MICRO 2W is made of the highest quality materials such as marine steel. The power is 2W and the load pressure is 120kg. ECLIP MICRO can be used to illuminate many places and objects, such as recreational areas, gardens, terraces, commercial parking lots, skate parks, etc.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Downloads:

Datasheet:

Technical illustrations:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	Plots
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	In-ground

Electrical data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	2
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 2X1.5

Optics

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF, PWM
LED LIFETIME Ta25 [h]	≥ 60 000h

Technical data

Total Consumption [W]	2
Lumen Output [LM]	45
Efficacy lm/W	22.5
Diffuser Material	Tempered glass
Body Material	SS316L
Beam Angle [°]	360
Light Distribution DIR/IND	4xIND
LED Color Temperature CCT [K]	2200, 2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	SST
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	40.3

Housing

Body Material	SS316L
Body Color	SST

Light technical data

Light Source	LED
Total Consumption [W]	2
Lumen Output [LM]	45
Efficacy lm/W	22.5
LED Color Temperature CCT [K]	2200, 2700, 3000, 4000, 5000
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	360
Light Distribution DIR/IND	4xIND

Technical data

TA [°C]	-20 to +55
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

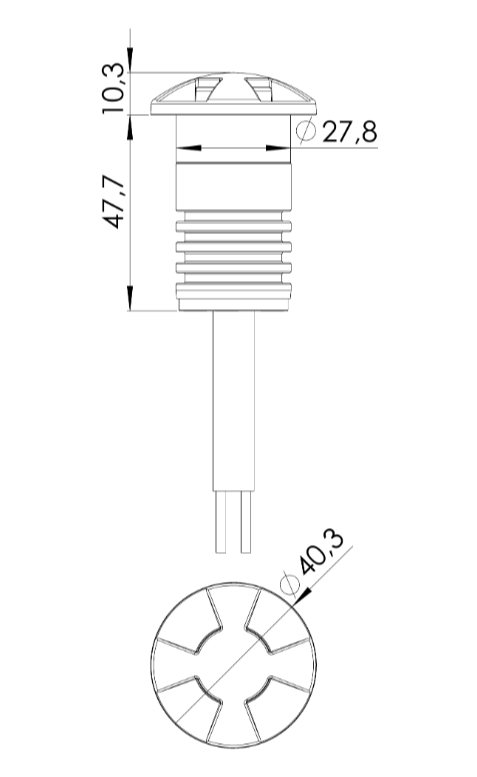

Dimensions

Diameter ø [mm]	40.3

Variations

Item	Code	Height	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	IP	Color
ECLIP MICRO 12/24VDC 4 45lm 2W 822 40.3 SS IP67	MI8449900	48	40.3	2	45	22.5	4	360	80	2200	67	SST
ECLIP MICRO 12/24VDC 4 45lm 2W 827 40.3 SS IP67	MI2860067	48	40.3	2	45	22.5	4	360	80	2700	67	SST
ECLIP MICRO 12/24VDC 4 45lm 2W 830 40.3 SS IP67	MI8595798	48	40.3	2	45	22.5	4	360	80	3000	67	SST
ECLIP MICRO 12/24VDC 4 45lm 2W 840 40.3 SS IP67	MI7345720	48	40.3	2	45	22.5	4	360	80	4000	67	SST
ECLIP MICRO 12/24VDC 4 45lm 2W 850 40.3 SS IP67	MI3115553	48	40.3	2	45	22.5	4	360	80	5000	67	SST
