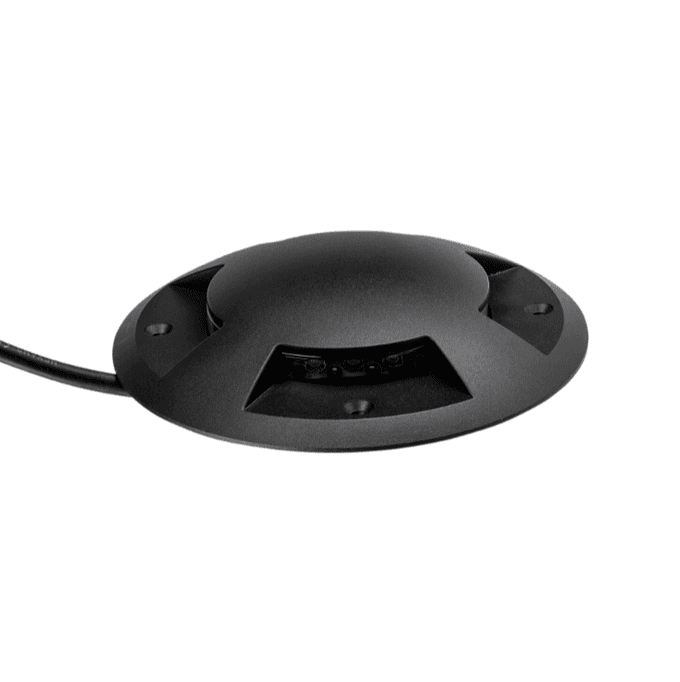

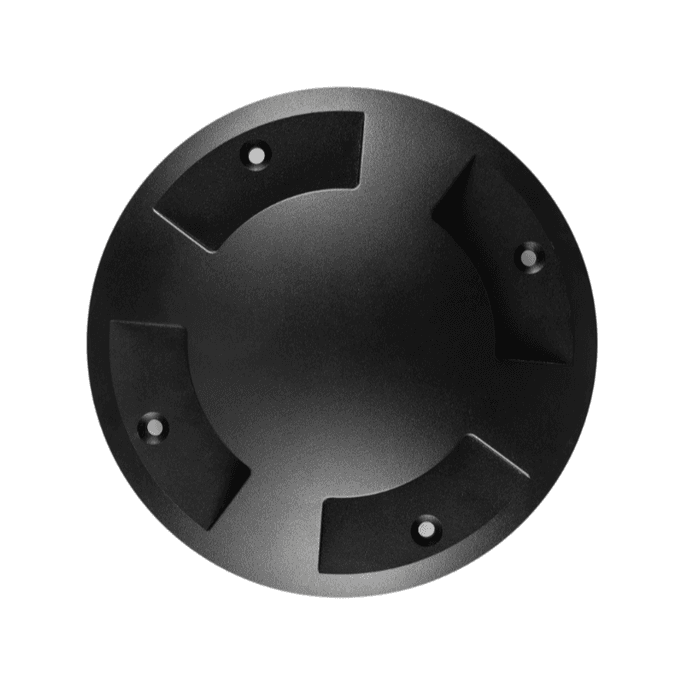

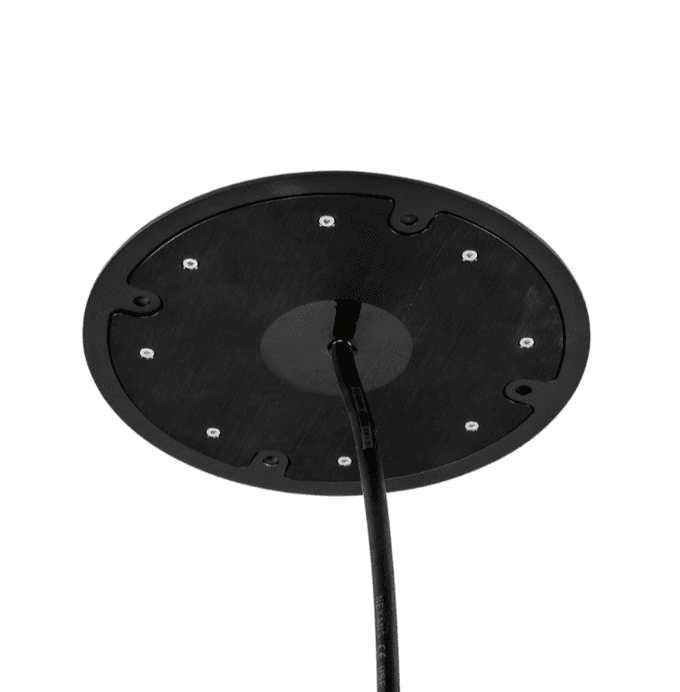

ECLIP PRO 15T 12/24VDC
ECLIP PRO 15T 12/24VDC

General data

Application	Plots
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	In-ground

Electrical data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	15
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 2X1.5

Optics

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF
LED LIFETIME Ta25 [h]	≥ 60 000h

Technical data

Total Consumption [W]	15
Lumen Output [LM]	750, 1500
Efficacy lm/W	100
Diffuser Material	Tempered glass
Body Material	SS316L, ALU
Beam Angle [°]	180, 90
Light Distribution DIR/IND	4xIND, 2xIND
LED Color Temperature CCT [K]	4000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	BLACK
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	200

Description:

ECLIP PRO 15T 15W 12/24VDC is made of the highest quality materials such as marine steel and/or aluminum.. The power is 15W and the load pressure is 15000kg. ECLIP PRO can be used to illuminate many places and objects, such as recreational areas, gardens, terraces, commercial parking lots, skate parks, etc.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Downloads:

Datasheet:

Technical illustrations:

Mounting instructions:

Certificates:

Photometric data:

General data

Application	Plots
Key Advantages	Variety of light distribution beam angles, power options W, shape designs and dimming options.
Product Shape	Round
Type	Illumination
Mounting	In-ground

Electrical data

Main Feed AC [V]	230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]	50-60
Total Consumption [W]	15
IEC Protection Class	III
Connector Type	0.5m
Wiring	H07RN-F 2X1.5

Optics

Diffuser Material	Tempered glass
CONTROL SYSTEM	ON-OFF
LED LIFETIME Ta25 [h]	≥ 60 000h

Technical data

Total Consumption [W]	15
Lumen Output [LM]	750, 1500
Efficacy lm/W	100
Diffuser Material	Tempered glass
Body Material	SS316L, ALU
Beam Angle [°]	180, 90
Light Distribution DIR/IND	4xIND, 2xIND
LED Color Temperature CCT [K]	4000
Color Rendering Index [CRI]	80
MacAdam step	<3
LED LIFETIME Ta25 [h]	≥ 60 000h
Body Color	BLACK
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Main Feed AC [V]	230VAC ~ 12/24 VDC
Diameter ø [mm]	200

Housing

Body Material	SS316L, ALU
Body Color	BLACK

Light technical data

Light Source	LED
Total Consumption [W]	15
Lumen Output [LM]	750, 1500
Efficacy lm/W	100
LED Color Temperature CCT [K]	4000
Color Rendering Index [CRI]	80
MacAdam step	<3
Beam Angle [°]	180, 90
Light Distribution DIR/IND	4xIND, 2xIND

Technical data

TA [°C]	-20 to +55
Ingress Protection [IP]	67
Mechanical Protection [IK]	10
Corrosion Class	C3, C4

Dimensions

Diameter ø [mm]	200

Variations

Item	Code	Diameter	W	Lumen Output lm	Efficacy lm/W	Diffuser	Beam Angle	CRI	Color K	IP	Color
ECLIP PRO 15T 12/24VDC 4 1500lm 15W 840 200 SS IP67	MI4267926	200	15	1500	100	4	40X20	80	4000	67	SST
ECLIP PRO 15T 12/24VDC 4 1500lm 15W 830 200 SS IP67	MI1388551	200	15	1500	100	4	40X20	80	3000	67	SST
ECLIP PRO 15T 12/24VDC 2 750lm 7.5W 840 200 SS IP67	MI9897942	200	7.5	750	100	2	40X20	80	4000	67	SST
ECLIP PRO 15T 12/24VDC 2 750lm 7.5W 830 200 SS IP67	MI3629590	200	7.5	750	100	2	40X20	80	3000	67	SST
ECLIP PRO 15T 12/24VDC 4 750lm 7.5W 830 200 SS IP67	MI2083511	200	7.5	750	100	4	40X20	80	3000	67	SST
ECLIP PRO 15T 12/24VDC 4 750lm 7.5W 840 200 SS IP67	MI2856633	200	7.5	750	100	4	40X20	80	4000	67	SST
ECLIP PRO 15T 12/24VDC 2 1500lm 15W 830 200 SS IP67	MI3925660	200	15	1500	100	2	40X20	80	3000	67	SST
ECLIP PRO 15T 12/24VDC 2 1500lm 15W 840 200 SS IP67	MI8729507	200	15	1500	100	2	40X20	80	4000	67	SST
