ECLIP STANDARD 12/24VDC 2 300lm 5W 830 103 SS IP67
Item No. MI1399186
ECLIP STANDARD 12/24VDC

ECLIP STANDARD 12/24VDC 2 300lm 5W 830 103 SS IP67

MI1399186

General data
Key Advantages

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Product ShapeRound
TypeIllumination
MountingIn-ground
Electrical data
Main Feed AC [V]230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]50-60
Total Consumption [W]5
IEC Protection ClassIII
Connector Type0.5m
WiringH07RN-F 2X1.5
Optics
Diffuser2
LED LIFETIME Ta25 [h]≥ 60 000h
Technical data
Total Consumption [W]5
Lumen Output [LM]300
Efficacy [lm/W]60
Diffuser2
Housing MaterialSS316L
Beam Angle [°]180
Light distributionSYM
CCT [K]3000
CRI80
MacAdam step<3
LED LIFETIME Ta25 [h]≥ 60 000h
Housing colorSST
IP67
Mechanical Protection [IK]10
Main Feed AC [V]230VAC ~ 12/24 VDC
Diameter ø [mm]103
Description:

ECLIP STANDARD 5W is made of the highest quality materials such as marine steel. The power is 5W and the load pressure is 1100kg. ECLIP STANDARD can be used to illuminate many places and objects, such as recreational areas, gardens, terraces, commercial parking lots, skate parks, etc.

Key Advantages:

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Downloads:
Datasheet:
1
Technical illustrations:
1
Mounting instructions:
1
Certificates:
1
Photometric data:
1
/soft4net/img/project/icons/DO WSZYSTKICH PRODUKTOW/CE.svg
/soft4net/img/project/icons/AD - IP/67.svg
/soft4net/img/project/icons/BB - IK/10.svg
/soft4net/img/project/icons/Y + Z - CCT K + CRI/3000_80.svg
ECLIP STANDARD 12/24VDC
General data
Key Advantages

Variety of light distribution beam angles, power options W, shape designs and dimming options.

Product ShapeRound
TypeIllumination
MountingIn-ground
Electrical data
Main Feed AC [V]230VAC ~ 12/24 VDC
Main Feed Frequency [Hz]50-60
Total Consumption [W]5
IEC Protection ClassIII
Connector Type0.5m
WiringH07RN-F 2X1.5
Optics
Diffuser2
LED LIFETIME Ta25 [h]≥ 60 000h
Technical data
Total Consumption [W]5
Lumen Output [LM]300
Efficacy [lm/W]60
Diffuser2
Housing MaterialSS316L
Beam Angle [°]180
Light distributionSYM
CCT [K]3000
CRI80
MacAdam step<3
LED LIFETIME Ta25 [h]≥ 60 000h
Housing colorSST
IP67
Mechanical Protection [IK]10
Main Feed AC [V]230VAC ~ 12/24 VDC
Diameter ø [mm]103
Housing
Housing MaterialSS316L
Housing colorSST
Light technical data
Light SourceLED
Total Consumption [W]5
Lumen Output [LM]300
Efficacy [lm/W]60
CCT [K]3000
CRI80
MacAdam step<3
Beam Angle [°]180
Light distributionSYM
Technical data
IP67
Mechanical Protection [IK]10
Corrosion ClassC3, C4
Dimensions
Diameter ø [mm]103
Generating PDF...

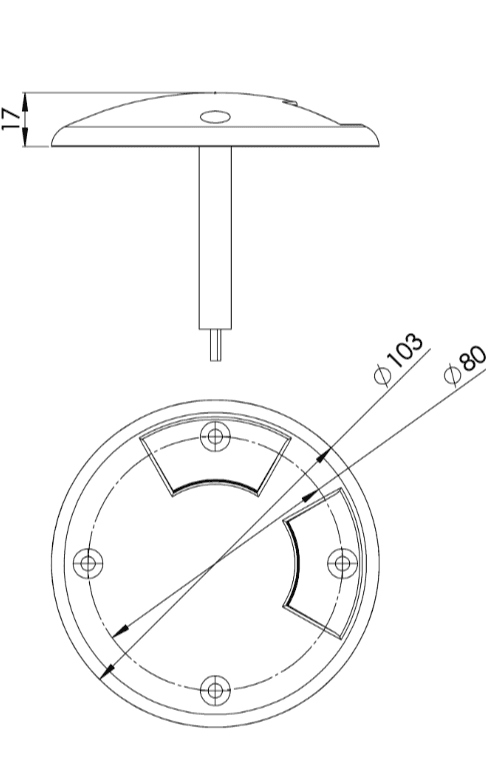

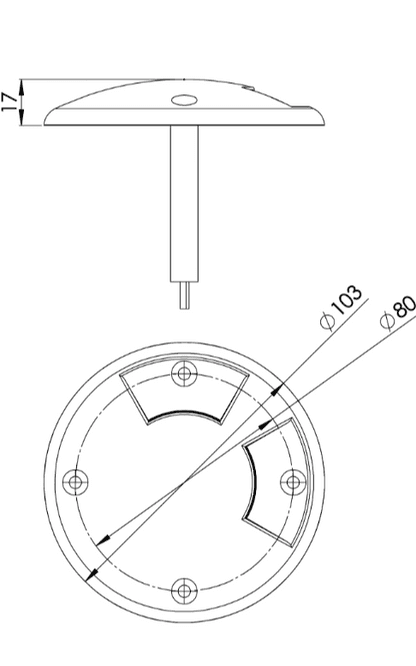

Technical illustrations

ECLIP STANDARD 12/24VDC
